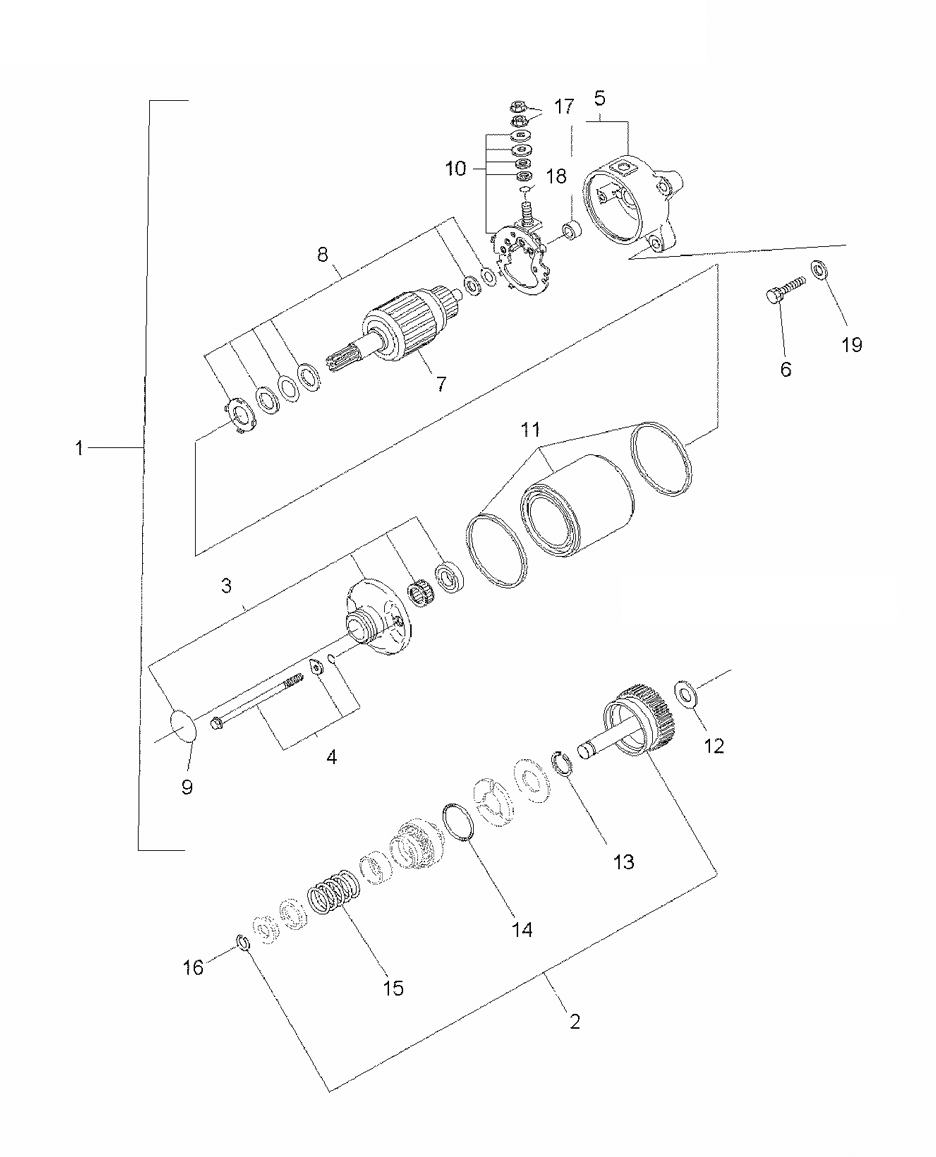

STARTING MOTOR для Polaris SPORTSMAN X2 500 EFI (QUAD) (TN50EA) (BLACK METALLIC) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3084981 ASM., MOTOR, STARTING [INCL. 3-5,7-11,17,18]
    ASM., MOTOR, STARTING [INCL. 3-5,7-11,17,18]
  • 2
    3087030 ASM-GEAR SHAFT [INCL. 13-16]
    ASM-GEAR SHAFT [INCL. 13-16]
  • 3
    3085033 ASM., BRACKET, FRONT [INCL. 9]
    ASM., BRACKET, FRONT [INCL. 9]
  • 4
    3084983 BOLT ASM, SET [INCL. 18]
    BOLT ASM, SET [INCL. 18]
  • 5
    3085034 ASM., COVER, REAR
    ASM., COVER, REAR
  • 6
    3084874 BOLT, FLANGE
    BOLT, FLANGE
  • 7
    3085353 ARMATURE ASM.
    ARMATURE ASM.
  • 8
    3084982 WASHER SET
    WASHER SET
  • 9
    3240114 O-RING
    O-RING
  • 10
    3088169 CARBON BRUSH SET
    CARBON BRUSH SET
  • 11
    3084405 RING, RUBBER
    RING, RUBBER
  • 12
    7555908 WASHER
    WASHER
  • 13
    3084412 CLIP
    CLIP
  • 14
    3084411 SPRING, WEIGHT
    SPRING, WEIGHT
  • 15
    3084410 SPRING, RETURN
    SPRING, RETURN
  • 16
    3084409 CLIP
    CLIP
  • 17
    3083649 NUT, FLANGE
    NUT, FLANGE
  • 18
    3084408 O-RING
    O-RING
  • 19
    7558301 WASHER, FLAT [USED WITH STARTER GROUND CABLE]
    WASHER, FLAT [USED WITH STARTER GROUND CABLE]
