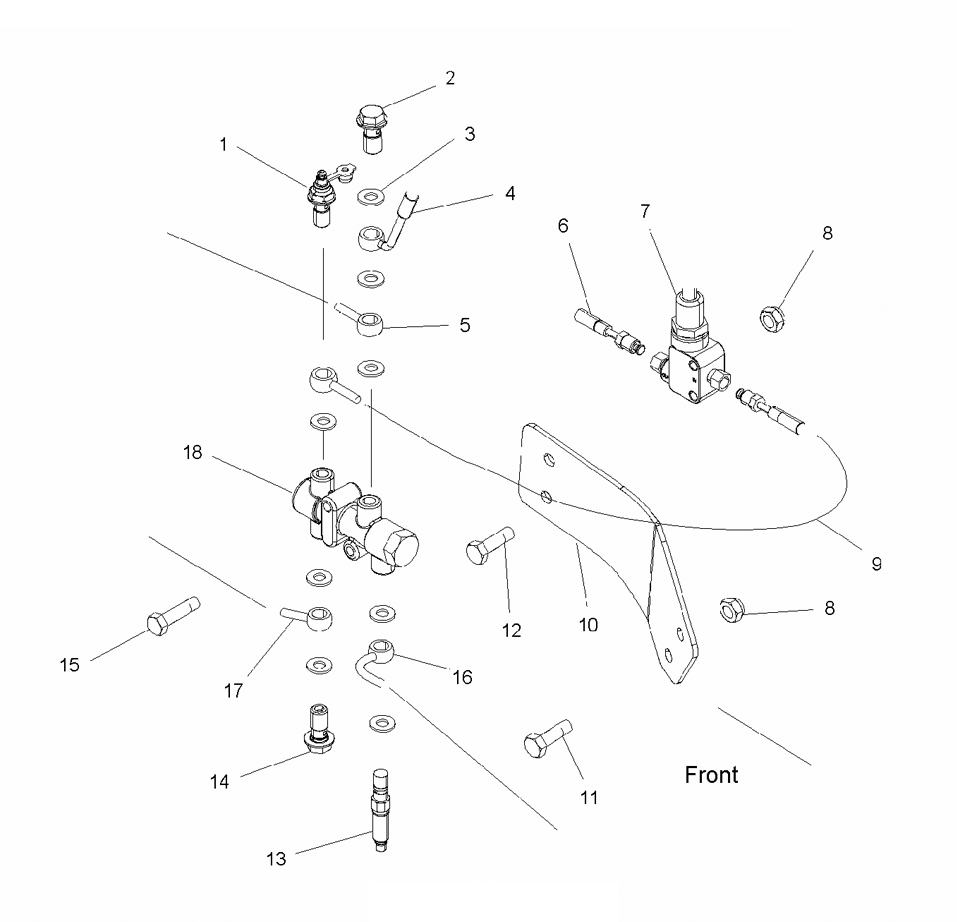

BRAKE - VALVE SYSTEM для Polaris SPORTSMAN X2 500 EFI (QUAD) (TN50EA) (BLACK METALLIC) - 2008 года выпуска
-
№АртикулНазвание
-
11911112 BOLT-BANJO 10MMX1.25 W/BLEEDERBOLT-BANJO 10MMX1.25 W/BLEEDER
-
21911194 BOLT-DOUBLE BANJO, M10X1.25BOLT-DOUBLE BANJO, M10X1.25
-
35413212 SEAL-STAT-O-3/8, 70EPSEAL-STAT-O-3/8, 70EP
-
41911103 LINE-BRAKE, HAND TO J/BLINE-BRAKE, HAND TO J/B
-
51911106 LINE-BRAKE, REAR, AUXLINE-BRAKE, REAR, AUX
-
61911105 LINE-BRAKE, REAR, SERVICELINE-BRAKE, REAR, SERVICE
-
71911109 VALVE-REDUCING, BRAKEVALVE-REDUCING, BRAKE
-
87542122 NUT-NYLOKNUT-NYLOK
-
91911200 LINE-BRAKE, J/B TO P/VALVE, NPTLINE-BRAKE, J/B TO P/VALVE, NPT
-
105250742-067 PLATE-BRAKE, VALVE, BLACKPLATE-BRAKE, VALVE, BLACK
-
117512242 SCREWSCREW
-
127512130 BOLTBOLT
-
134011478 SWITCH-PRESSURE, BRAKE, M10X1.25SWITCH-PRESSURE, BRAKE, M10X1.25
-
141910958 BOLT-BANJO, 10MM X 1.25-6GBOLT-BANJO, 10MM X 1.25-6G
-
157517451 BOLTBOLT
-
161911183 LINE-BRAKE, FRONT 500 INTLLINE-BRAKE, FRONT 500 INTL
-
171911104 LINE-BRAKE, FOOT TO J/BLINE-BRAKE, FOOT TO J/B
-
181911185 BLOCK-DIST, BRAKE, LONG PISTONBLOCK-DIST, BRAKE, LONG PISTON
