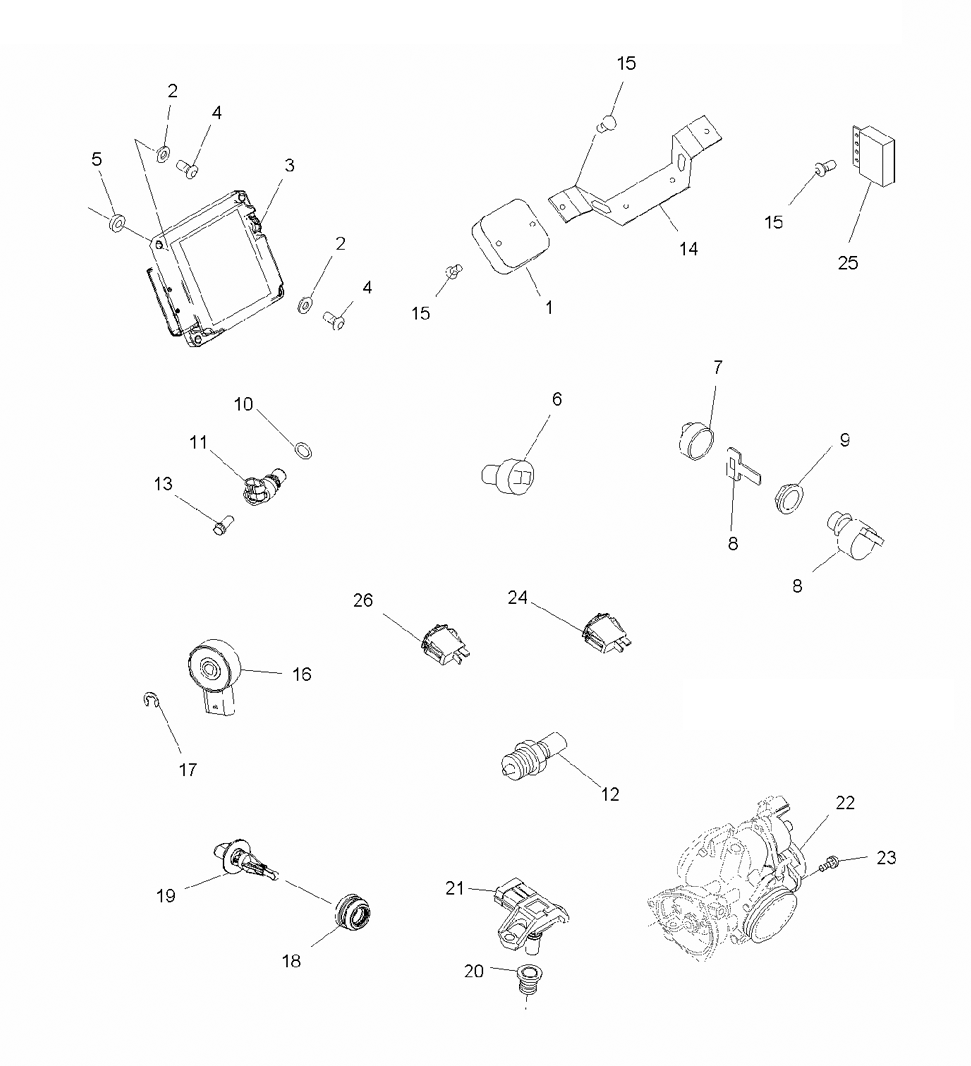

CONTROL MODULES - SWITCHES/SENSORS для Polaris SPORTSMAN X2 500 EFI (QUAD) (TN50EA) (BLACK METALLIC) - 2008 года выпуска
-
№АртикулНазвание
-
14011925 REGULATOR-3PH, TALL FIN, SEALEDREGULATOR-3PH, TALL FIN, SEALED
-
27555746 WASHERWASHER
-
34011952 MODULE-ENGINE CONTROL, SERVICEMODULE-ENGINE CONTROL, SERVICE
-
47518552 SCR-10-24X1 PN TRX TFS STL-YSCR-10-24X1 PN TRX TFS STL-Y
-
57555932 WASHER, NYLONWASHER, NYLON
-
64011478 SWITCH-PRESSURE, BRAKE, M10X1.25 [BRAKE LIGHTS]SWITCH-PRESSURE, BRAKE, M10X1.25 [BRAKE LIGHTS]
-
75433534 KEY COVER-KEYSWITCHKEY COVER-KEYSWITCH
-
84012166 SWITCH-KEY, 4 POS, ATV, MT SLV [INCL. KEY]SWITCH-KEY, 4 POS, ATV, MT SLV [INCL. KEY]
-
84010278 KEY BLANK (20/21/67/68) SERIES (SEE NOTE)KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
-
84010321 KEY BLANK (22/23/27/28) SERIES (SEE NOTE)KEY BLANK (22/23/27/28) SERIES (SEE NOTE)
-
95433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
103234302 O-RING, -113O-RING, -113
-
113234299 SENSOR-SPEED, TRANSSENSOR-SPEED, TRANS
-
123089892 SENSOR-WATER TEMPSENSOR-WATER TEMP
-
133234247 SCREW, TAPPINGHEXHEAD1/4-20X.75SCREW, TAPPINGHEXHEAD1/4-20X.75
-
145248725 BRKT-MOUNT, VOLTAGE REG, PLATEDBRKT-MOUNT, VOLTAGE REG, PLATED
-
157512024 SCREWSCREW
-
163233835 SWITCH-ROTARY, 6 PINSWITCH-ROTARY, 6 PIN
-
173233834 RING-RETAININGRING-RETAINING
-
185436346 GROMMET-AIR TEMP SENSORGROMMET-AIR TEMP SENSOR
-
192410687 SENSOR-AIR TEMPSENSOR-AIR TEMP
-
203089902 GROMMETGROMMET
-
213089895 ASM-SENSOR W/O-RINGASM-SENSOR W/O-RING
-
223140173 SENSOR-THROTTLE POSITIONSENSOR-THROTTLE POSITION
-
233131628 SCREWSCREW
-
244011966 SWITCH-TURF, ON/OFF, X2SWITCH-TURF, ON/OFF, X2
-
254011553 MODULE-FLASH/TURNMODULE-FLASH/TURN
-
264011761 SWITCH-HAZARDSWITCH-HAZARD
