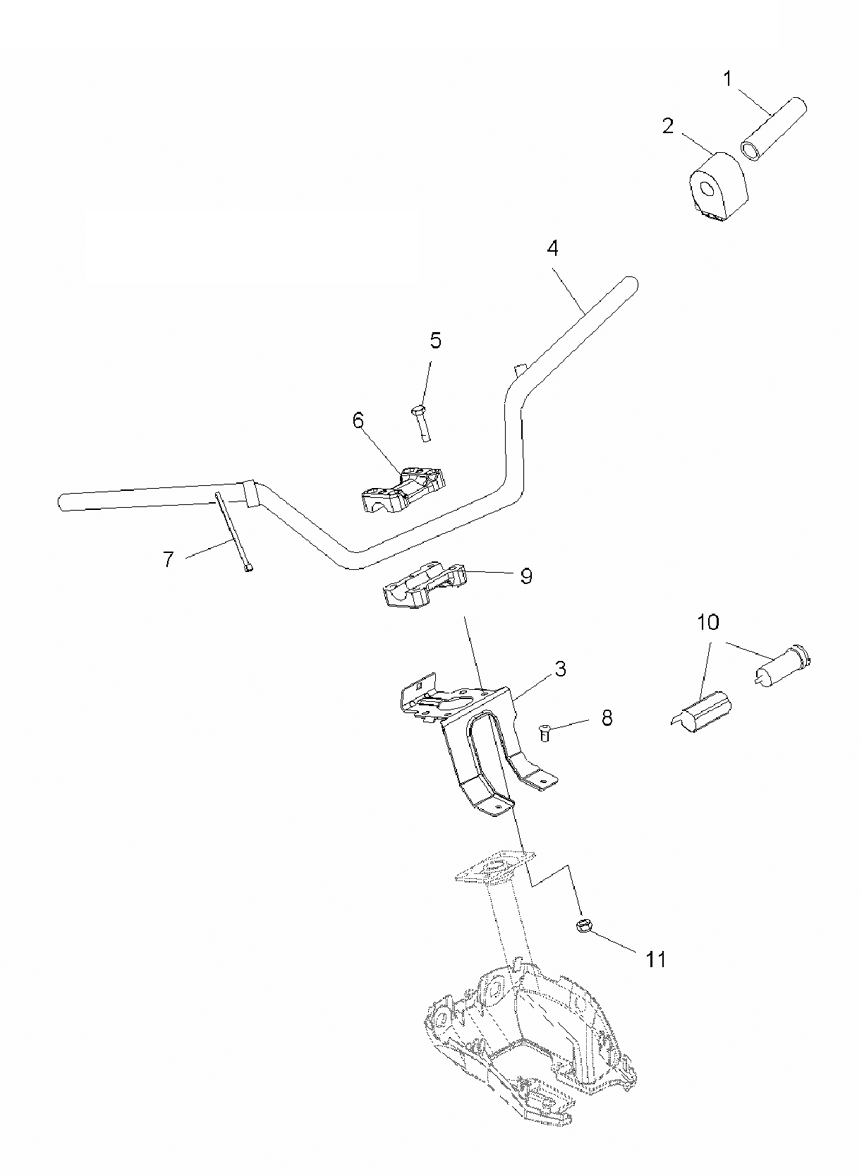

HANDLEBAR - CONTROL ASSY. для Polaris SPORTSMAN X2 500 EFI (QUAD) (TN50EA) (BLACK METALLIC) - 2008 года выпуска
-
№АртикулНазвание
-
15412900-070 GRIP-HANDLEBAR, MECHANICAL, BLACKGRIP-HANDLEBAR, MECHANICAL, BLACK
-
24011120 SWITCH-HANDLEBARSWITCH-HANDLEBAR
-
35244969-067 BRKT-POD MOUNTING, BLACKBRKT-POD MOUNTING, BLACK
-
41015562-067 WELD-HANDLEBAR, W/MOUNT, BLACKWELD-HANDLEBAR, W/MOUNT, BLACK
-
57515189 SCREWSCREW
-
65631972 BLOCK-HANDLEBAR, PEG, 89 IDBLOCK-HANDLEBAR, PEG, 89 ID
-
77080138 CABLE TIECABLE TIE
-
87517317 SCREWSCREW
-
95631973 BLOCK-HANDLEBAR, .89 IDBLOCK-HANDLEBAR, .89 ID
-
104010638 RECEPTACLE-POD MNT, 12 VOLTRECEPTACLE-POD MNT, 12 VOLT
-
117542122 NUT-NYLOKNUT-NYLOK
