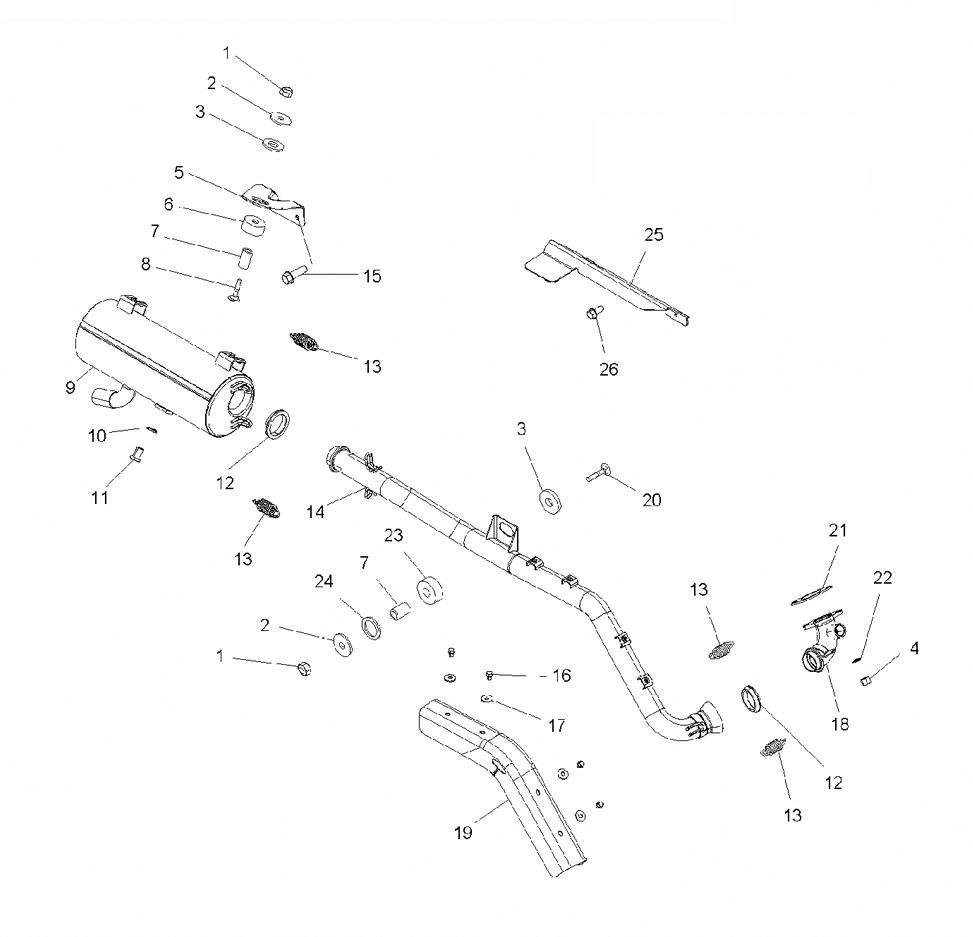

EXHAUST SYSTEM для Polaris SPORTSMAN X2 500 EFI (QUAD) (TN50EA) (BLACK METALLIC) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 2
    7555716 WASHER
    WASHER
  • 3
    5410436 WASHER, RUBBER
    WASHER, RUBBER
  • 4
    3087199 NUT
    NUT
  • 5
    5249688 BRKT-EXHAUST MNT, PLATED, TREK
    BRKT-EXHAUST MNT, PLATED, TREK
  • 6
    5412659 DAMPENER-VIBRATION
    DAMPENER-VIBRATION
  • 7
    5010192 BUSHING
    BUSHING
  • 8
    7515316 BOLT
    BOLT
  • 9
    1261705-489 MUFFLER
    MUFFLER
  • 10
    7556230 WASHER-CLEAN OUT .51X.75X.09
    WASHER-CLEAN OUT .51X.75X.09
  • 11
    7512666 BOLT
    BOLT
  • 12
    5243518 SEAL, EXHAUST
    SEAL, EXHAUST
  • 13
    7041804 SPRING
    SPRING
  • 14
    1261698-489 WELD-EXHAUST PIPE, 1.625 OD, BLACK
    WELD-EXHAUST PIPE, 1.625 OD, BLACK
  • 15
    7512232 BOLT
    BOLT
  • 16
    7515197 SCREW
    SCREW
  • 17
    7555935 WASHER
    WASHER
  • 18
    1261734-489 WELD-MNFLD, 1.625 OD, QUAD, PWDR
    WELD-MNFLD, 1.625 OD, QUAD, PWDR
  • 19
    5250373 SHIELD-HEAT, EXHAUST
    SHIELD-HEAT, EXHAUST
  • 20
    7518660 BOLT-CARR 5/16-18X2 1/4''GR5-Y
    BOLT-CARR 5/16-18X2 1/4''GR5-Y
  • 21
    3085075 ASM., GASKET (EXHAUST)
    ASM., GASKET (EXHAUST)
  • 22
    3080051 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 23
    5412659 DAMPENER-VIBRATION
    DAMPENER-VIBRATION
  • 24
    7556401 BUSHING
    BUSHING
  • 25
    5251564 SHIELD-HEAT, EXHAUST
    SHIELD-HEAT, EXHAUST
  • 26
    7512232 BOLT
    BOLT
