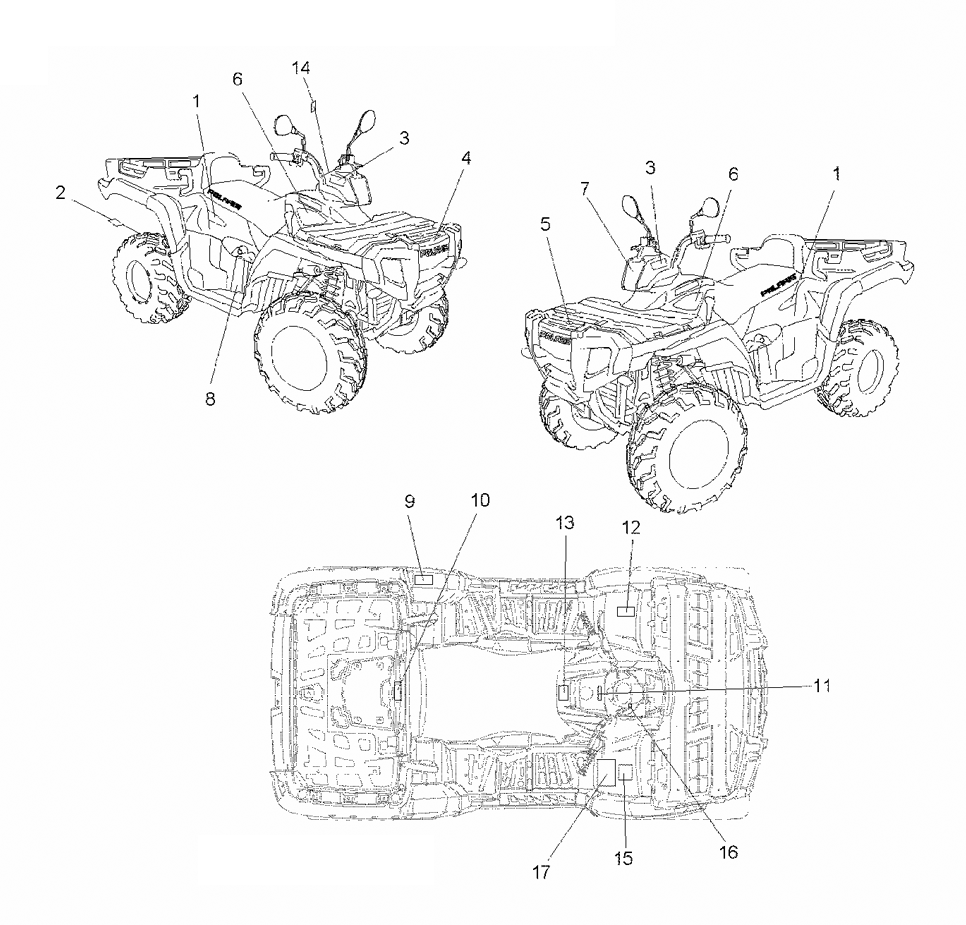

DECALS для Polaris SPORTSMAN X2 500 EFI (QUAD) (TN50EA) (BLACK METALLIC) - 2008 года выпуска
-
№АртикулНазвание
-
17174349 DECAL-RR CAB, ''AWD'', LEFT HANDDECAL-RR CAB, ''AWD'', LEFT HAND
-
17174350 DECAL-RR CAB, ''AWD'', RIGHT HANDDECAL-RR CAB, ''AWD'', RIGHT HAND
-
27174159 DECAL-HITCH, 1225 LBS.LEVEL GRNDDECAL-HITCH, 1225 LBS.LEVEL GRND
-
37174263 DECAL-POD, ''EFI''DECAL-POD, ''EFI''
-
47174201 DECALDECAL
-
57078465 LOGO-POLARIS STARLOGO-POLARIS STAR
-
67174344 DECAL-TANK, SPORTSMAN X2 500, LEFT HANDDECAL-TANK, SPORTSMAN X2 500, LEFT HAND
-
67174345 DECAL-TANK, SPORTSMAN X2 500, RIGHT HANDDECAL-TANK, SPORTSMAN X2 500, RIGHT HAND
-
77174394 DECAL-LENS COVERDECAL-LENS COVER
-
87172562 DECAL-DRAIN RECOILDECAL-DRAIN RECOIL
-
97174879 DECALDECAL
-
107174837 DECALDECAL
-
117175106 DECALDECAL
-
127174362 DECALDECAL
-
137173027 DECALDECAL
-
147174569 DECAL-IGNIGTION LIGHTINGDECAL-IGNIGTION LIGHTING
-
157174361 DECALDECAL
-
167175340 DECAL-TURF SWITCHDECAL-TURF SWITCH
-
177175108 DECALDECAL
