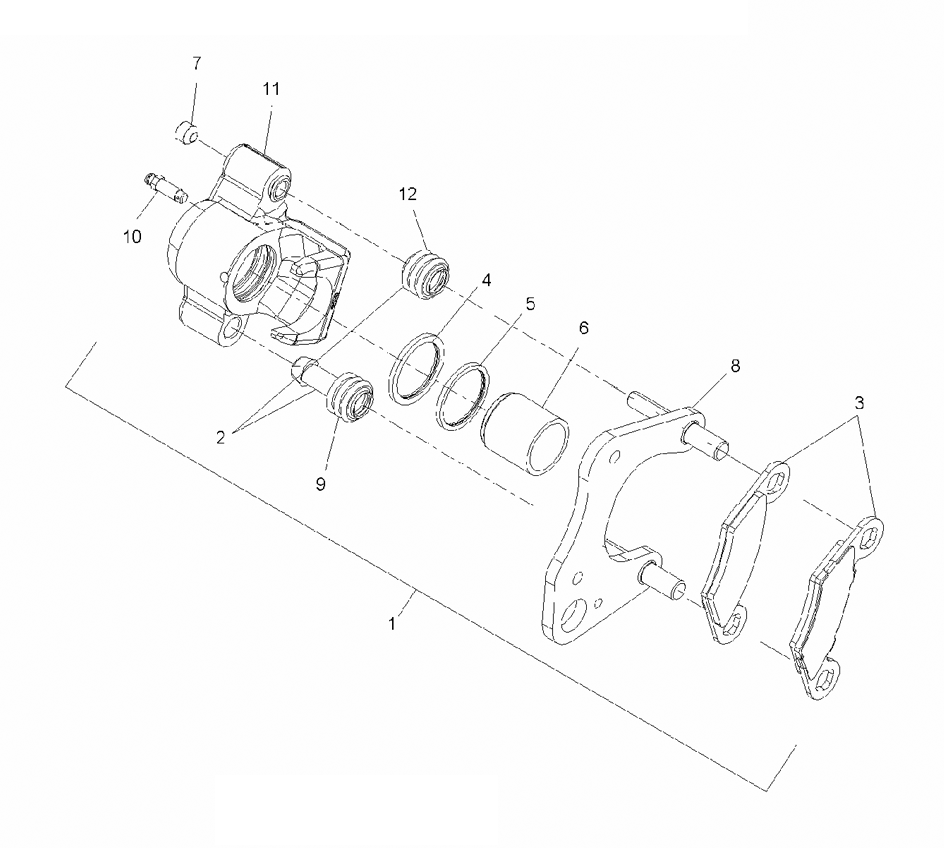

BRAKE - FRONT CALIPER для Polaris SPORTSMAN X2 500 EFI (QUAD) (TN50EA) (BLACK METALLIC) - 2008 года выпуска
-
№АртикулНазвание
-
11910877 CALIPER ASM, BRAKE, 1-1/4, LEFT HAND, 9'' [INCL. 1-12]CALIPER ASM, BRAKE, 1-1/4, LEFT HAND, 9'' [INCL. 1-12]
-
11910878 CALIPER ASM, BRAKE, 1-1/4, RIGHT HAND, 9'' [INCL. 1-12]CALIPER ASM, BRAKE, 1-1/4, RIGHT HAND, 9'' [INCL. 1-12]
-
21930642 KIT, BOOT, FRONT BRAKE [INCL. 9,12]KIT, BOOT, FRONT BRAKE [INCL. 9,12]
-
32202412 KIT-FRONT BRAKE PAD ASM [INCL. 2 SETS, 4 PADS]KIT-FRONT BRAKE PAD ASM [INCL. 2 SETS, 4 PADS]
-
45411596 SEAL-CALIPER, INNER, 1.25''SEAL-CALIPER, INNER, 1.25''
-
55411597 SEAL-CALIPER, OUTER, 1.25''SEAL-CALIPER, OUTER, 1.25''
-
65132405 PISTON-CALIPER, 1.25PISTON-CALIPER, 1.25
-
77515489 SCR-3/8-24X5/16 SOC SET-YSCR-3/8-24X5/16 SOC SET-Y
-
81910513 MOUNT, CALIPER, FRONTMOUNT, CALIPER, FRONT
-
95412505 BOOT-PIN BUSHINGBOOT-PIN BUSHING
-
107080352 SCREW, BLEEDERSCREW, BLEEDER
-
115134754 CALIPER-1.25, LEFT HANDCALIPER-1.25, LEFT HAND
-
115134755 CALIPER-1.25, RIGHT HANDCALIPER-1.25, RIGHT HAND
-
125412506 BOOT-PIN SEALBOOT-PIN SEAL
