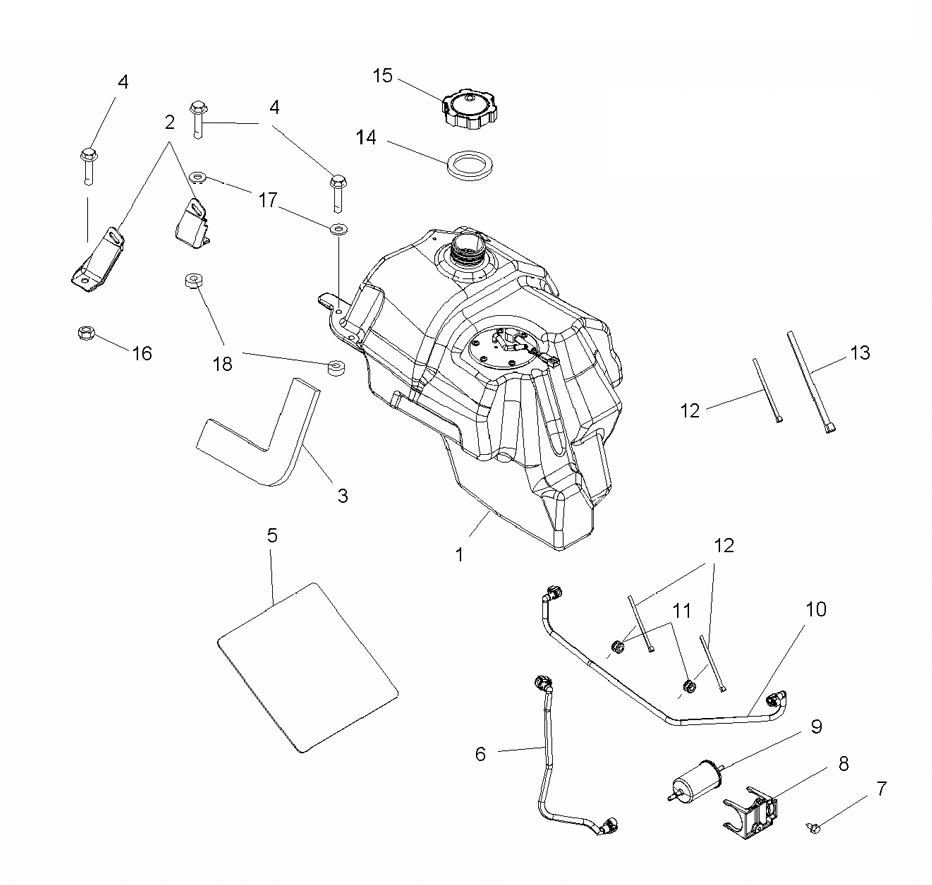

FUEL TANK (BUILT 12/01/07 AND BEFORE) для Polaris SPORTSMAN X2 500 EFI (QUAD) (TN50EA) (BLACK METALLIC) - 2008 года выпуска
-
№АртикулНазвание
-
12520777 ASM-FUEL TANK, QUAD X2, EFI [INCL. PUMP, FOIL]ASM-FUEL TANK, QUAD X2, EFI [INCL. PUMP, FOIL]
-
25247184 BRKT-FUEL COVER MT LEFT HANDBRKT-FUEL COVER MT LEFT HAND
-
25247185 BRKT-FUEL COVER MT RIGHT HANDBRKT-FUEL COVER MT RIGHT HAND
-
35812265 SEAL-FOAM, 12 INSEAL-FOAM, 12 IN
-
47517219 SCREWSCREW
-
55813024 FOIL-FUEL TANK, TREKFOIL-FUEL TANK, TREK
-
62520443 FUEL LINE ASM, TANK TO FILTERFUEL LINE ASM, TANK TO FILTER
-
77512232 BOLTBOLT
-
85436013 MOUNT-FUEL FILTERMOUNT-FUEL FILTER
-
92520464 FILTER-FUEL, QUICK CONNECTFILTER-FUEL, QUICK CONNECT
-
102520551 ASM-FUEL LINE, FILTER/RAIL, TREKASM-FUEL LINE, FILTER/RAIL, TREK
-
115413317 GROMMET-ELEC SHOCK WIRE, SLITGROMMET-ELEC SHOCK WIRE, SLIT
-
127080138 CABLE TIECABLE TIE
-
137080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
-
145812123 GASKETGASKET
-
152520364 CAP-GAS, VENTED, UNLEADED FUELCAP-GAS, VENTED, UNLEADED FUEL
-
167542122 NUT-NYLOKNUT-NYLOK
-
177558301 WASHER, FLATWASHER, FLAT
-
187555913 MOUNT PADSMOUNT PADS
