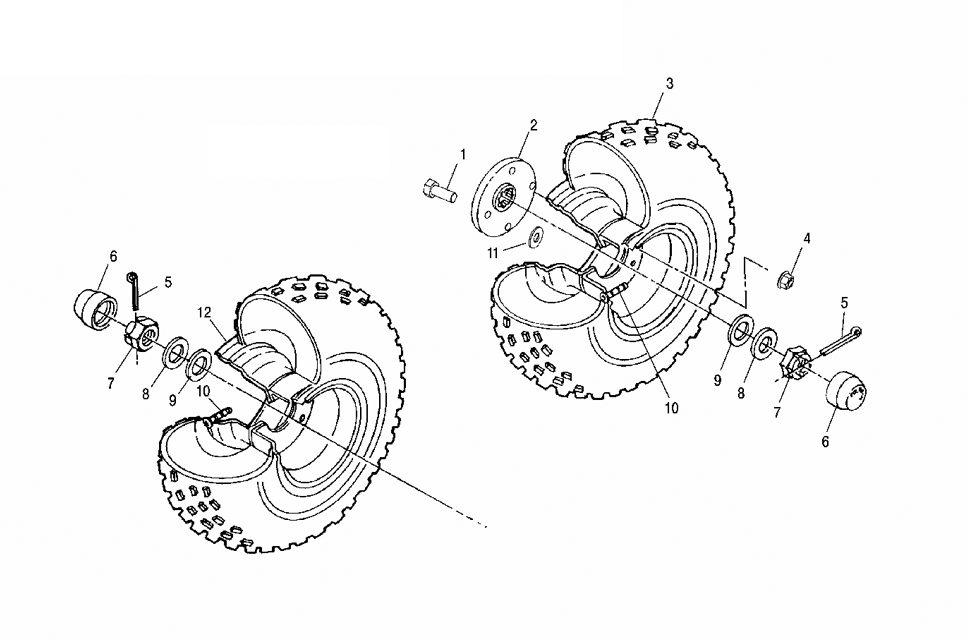

WHEEL - REAR AND MIDDLE для Polaris SPORTSMAN 6X6 (CL50AA) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7512673 BOLT
    BOLT
  • 2
    5131777 HUB, R.WHEEL, LG.FLANGE (MACH)
    HUB, R.WHEEL, LG.FLANGE (MACH)
  • 3
    5410948 TIRE-25X11-10 [BUILT 1/09/08 AND BEFORE]
    TIRE-25X11-10 [BUILT 1/09/08 AND BEFORE]
  • 3
    5412451 TIRE-REAR AT 25X11-12 489 3STR [BUILT 1/10/08 AND AFTER]
    TIRE-REAR AT 25X11-12 489 3STR [BUILT 1/10/08 AND AFTER]
  • 4
    7542714 NUT
    NUT
  • 5
    7661404 PIN, COTTER
    PIN, COTTER
  • 6
    5413427 HUB-DUST COVER
    HUB-DUST COVER
  • 7
    7543005 NUT, CASTLE
    NUT, CASTLE
  • 8
    7555745 WASHER
    WASHER
  • 9
    7555796 WASHER, CONE
    WASHER, CONE
  • 10
    1525017 VALVE, RIM
    VALVE, RIM
  • 11
    7670081 PUSHNUT, BOLT
    PUSHNUT, BOLT
  • 12
    1520183-067 RIM, REAR, BLACK [BUILT 1/09/08 AND BEFORE]
    RIM, REAR, BLACK [BUILT 1/09/08 AND BEFORE]
  • 12
    1520244-067 RIM, REAR, BLACK [BUILT 1/10/08 AND AFTER]
    RIM, REAR, BLACK [BUILT 1/10/08 AND AFTER]
