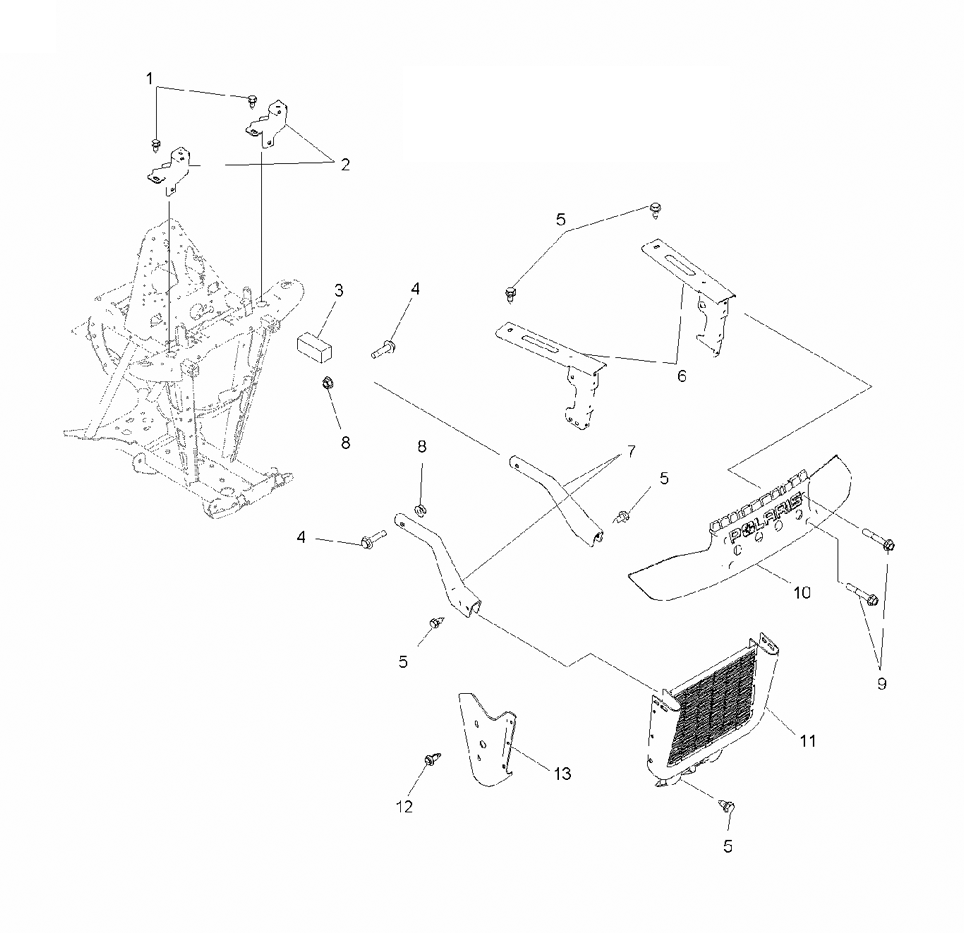

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 6X6 (CL50AA) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7512232 BOLT
    BOLT
  • 2
    1013744-067 WELD-SUPPORT RACK, FRONT, LEFT HAND, BLACK
    WELD-SUPPORT RACK, FRONT, LEFT HAND, BLACK
  • 2
    1013746-067 WELD-SUPPORT, RACK, FRONT, RIGHT HAND, BLACK
    WELD-SUPPORT, RACK, FRONT, RIGHT HAND, BLACK
  • 3
    5810467 PLUG, FRAME
    PLUG, FRAME
  • 4
    7518341 BOLT-5/16-18X1-3/4 HXFLNG GR5
    BOLT-5/16-18X1-3/4 HXFLNG GR5
  • 5
    7515399 SCREW
    SCREW
  • 6
    1014099-067 WELD-RACK MOUNT, LEFT HAND, BLACK
    WELD-RACK MOUNT, LEFT HAND, BLACK
  • 6
    1014101-067 WELD-RACK MOUNT RIGHT HAND, BLACK
    WELD-RACK MOUNT RIGHT HAND, BLACK
  • 7
    5244729-067 EXTENSION-FRAME, LEFT HAND, BLACK
    EXTENSION-FRAME, LEFT HAND, BLACK
  • 7
    5244730-067 EXTENSION-FRAME, RIGHT HAND, BLACK
    EXTENSION-FRAME, RIGHT HAND, BLACK
  • 8
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 9
    7517977 BOLT-5/16-18X2.25 FLG TAP/R-Y
    BOLT-5/16-18X2.25 FLG TAP/R-Y
  • 10
    5432155-070 BUMPER, BLACK
    BUMPER, BLACK
  • 11
    1013772-067 WELD-BRUSH GUARD, BLACK
    WELD-BRUSH GUARD, BLACK
  • 12
    7661855 RIVET-TUFLOK, .315-.325X.787 (50
    RIVET-TUFLOK, .315-.325X.787 (50
  • 13
    5433923 SHIELD-RADIATOR, SIDE, LEFT HAND
    SHIELD-RADIATOR, SIDE, LEFT HAND
  • 13
    5433924 SHIELD-RADIATOR, SIDE, RIGHT HAND
    SHIELD-RADIATOR, SIDE, RIGHT HAND
