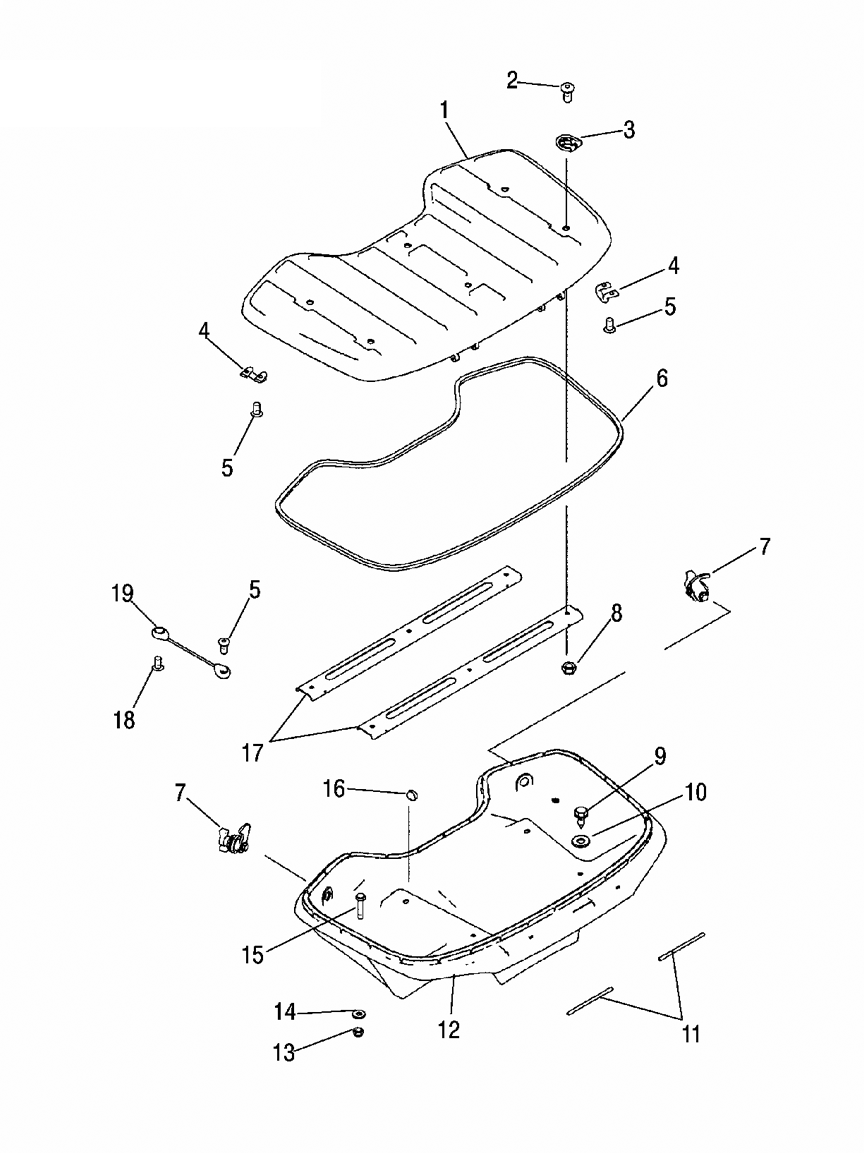

STORAGE BOX - FRONT для Polaris SPORTSMAN 6X6 (CL50AA) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    1253528 ASM-FRONT COVER [INCL. 2-5,8,17]
    ASM-FRONT COVER [INCL. 2-5,8,17]
  • 2
    7518216 SCR-5/16-18X718 TX-M
    SCR-5/16-18X718 TX-M
  • 3
    7081101 RING-TIE DOWN
    RING-TIE DOWN
  • 4
    5334257 LATCH-WIRE
    LATCH-WIRE
  • 5
    7512076 SCREW
    SCREW
  • 6
    5521641 SEAL-FRONT COMPARTMENT
    SEAL-FRONT COMPARTMENT
  • 7
    7081421 LATCH-1/4 TURN, DETENT, LEFT HAND
    LATCH-1/4 TURN, DETENT, LEFT HAND
  • 7
    7081422 LATCH-1/4 TURN, DETENT, RIGHT HAND
    LATCH-1/4 TURN, DETENT, RIGHT HAND
  • 8
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 9
    7515399 SCREW
    SCREW
  • 10
    7555958 WASHER, FLAT
    WASHER, FLAT
  • 11
    5133825 PIN-HINGE, FRONT
    PIN-HINGE, FRONT
  • 12
    5434790-070 BASE-FRONT BOX, BLACK
    BASE-FRONT BOX, BLACK
  • 13
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 14
    7555792 WASHER
    WASHER
  • 15
    7512007 BOLT
    BOLT
  • 16
    5412352 PLUG-COMPARTMENT
    PLUG-COMPARTMENT
  • 17
    5246928 CHANNEL-LID
    CHANNEL-LID
  • 18
    7512024 SCREW
    SCREW
  • 19
    7081124 CABLE-LID, FRONT
    CABLE-LID, FRONT
