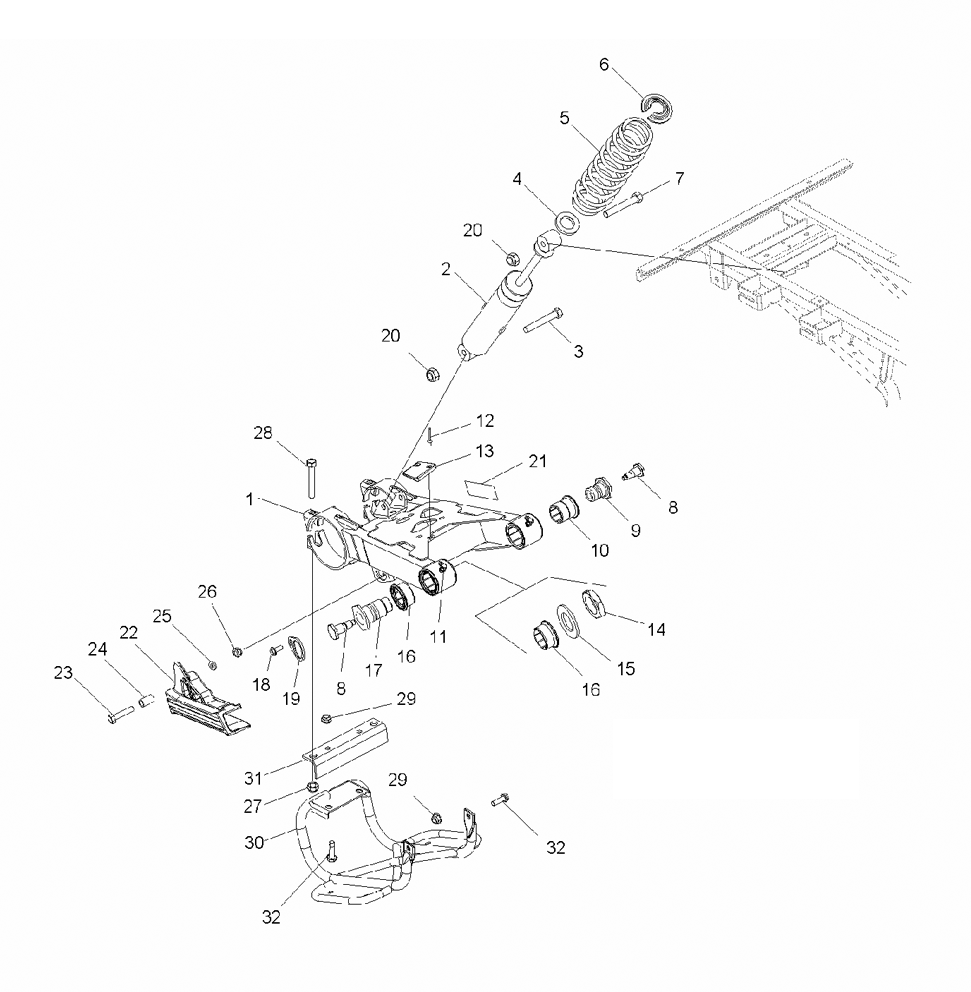

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris SPORTSMAN 6X6 (CL50AA) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
11541583 SWING, ARM, ASM.HYBRID, 16.85 [INCL. 10,11,16]SWING, ARM, ASM.HYBRID, 16.85 [INCL. 10,11,16]
-
27041962 SHOCK-MID AXLESHOCK-MID AXLE
-
37515438 BOLTBOLT
-
47556142 WASHER, 2.085X2.88X.135WASHER, 2.085X2.88X.135
-
57041987-067 SPRING-COMP, 100/160, 13.5LG, BLACKSPRING-COMP, 100/160, 13.5LG, BLACK
-
65251753 RETAINER-SPRING, STEELRETAINER-SPRING, STEEL
-
77515415 SCREWSCREW
-
85134321 BOLT-PIVOTBOLT-PIVOT
-
95133166 BUSHING-PIVOT, LEFT HANDBUSHING-PIVOT, LEFT HAND
-
105434545 BUSHING-LEFT HAND, HYBRID, BLACKBUSHING-LEFT HAND, HYBRID, BLACK
-
117080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
127661046 RIVET-POP, 3/16 (.376-.500)RIVET-POP, 3/16 (.376-.500)
-
135432727 GUIDE, CHAIN PADGUIDE, CHAIN PAD
-
147547082 NUT, HEX, JAMNUT, HEX, JAM
-
157556035 WASHER, FLATWASHER, FLAT
-
165434546 BUSHING-RIGHT HAND, HYBRID, BLACKBUSHING-RIGHT HAND, HYBRID, BLACK
-
175133167 BUSHING-PIVOT, RIGHT HANDBUSHING-PIVOT, RIGHT HAND
-
187515399 SCREWSCREW
-
195247488 BRKT-BOLT LOCKBRKT-BOLT LOCK
-
207542439 NUT, NYLOKNUT, NYLOK
-
217078572 DECAL-''CHAIN FREEPLAY'', HYBRIDDECAL-''CHAIN FREEPLAY'', HYBRID
-
225432854 GUARD, CHAINGUARD, CHAIN
-
237515304 SCREW-FLANGEDSCREW-FLANGED
-
245332828 BUSHINGBUSHING
-
257558402 WASHER, FLATWASHER, FLAT
-
267542343 NUT, FLANGENUT, FLANGE
-
277542522 NUT, FLANGENUT, FLANGE
-
287512586 BOLTBOLT
-
297542343 NUT, FLANGENUT, FLANGE
-
301013328-067 GUARD, SWING ARM, BLACK.GUARD, SWING ARM, BLACK.
-
315222221-067 MOUNT-ROCK GUARD BRKT, BLACKMOUNT-ROCK GUARD BRKT, BLACK
-
327515398 SCREWSCREW
