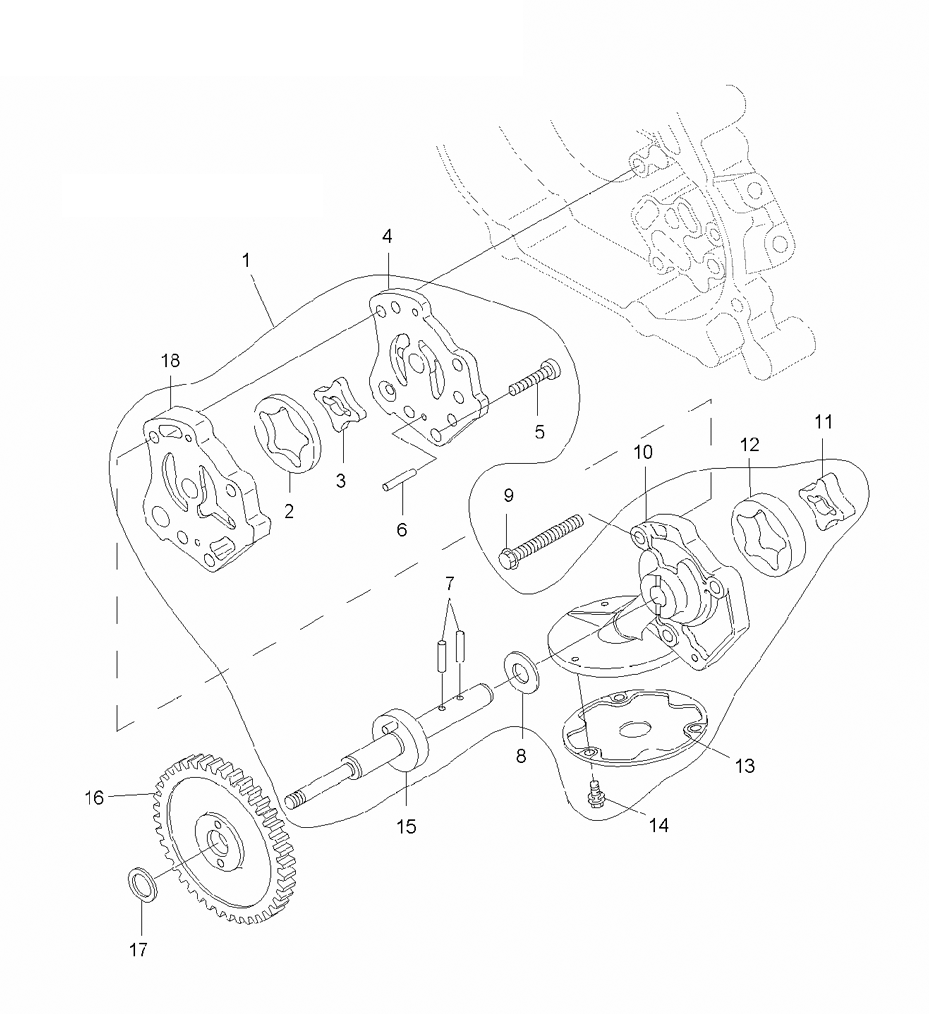

OIL PUMP для Polaris SPORTSMAN 6X6 (CL50AA) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3089999 OIL PUMP ASSY [INCL. 1-8,10-15]
    OIL PUMP ASSY [INCL. 1-8,10-15]
  • 2
    3084949 ROTOR, OUTER, FEED
    ROTOR, OUTER, FEED
  • 3
    3084948 ROTOR, INNER, FEED
    ROTOR, INNER, FEED
  • 4
    3090000 OIL PUMP CASE #1
    OIL PUMP CASE #1
  • 5
    3085535 SCREW
    SCREW
  • 6
    3084955 PIN, DOWEL
    PIN, DOWEL
  • 7
    3084954 PIN, DOWEL
    PIN, DOWEL
  • 8
    3084953 WASHER
    WASHER
  • 9
    3084962 BOLTANDWASHER ASM.
    BOLTANDWASHER ASM.
  • 10
    3087265 OIL PUMP CASE 3
    OIL PUMP CASE 3
  • 11
    3084950 ROTOR, INNER, SCAV.
    ROTOR, INNER, SCAV.
  • 12
    3084951 ROTOR, OUTER
    ROTOR, OUTER
  • 13
    3084956 STRAINER UNIT, OIL
    STRAINER UNIT, OIL
  • 14
    3084205 SCREW AND WASHER
    SCREW AND WASHER
  • 15
    3084952 SHAFT, PUMP
    SHAFT, PUMP
  • 16
    3084958 GEAR 2, PUMP
    GEAR 2, PUMP
  • 17
    3084959 SPACER, 0.8
    SPACER, 0.8
  • 17
    3084960 SPACER, 1.0
    SPACER, 1.0
  • 17
    3084961 SPACER, 1.2
    SPACER, 1.2
  • 18
    3084946 CASE #2, OILPUMP
    CASE #2, OILPUMP
