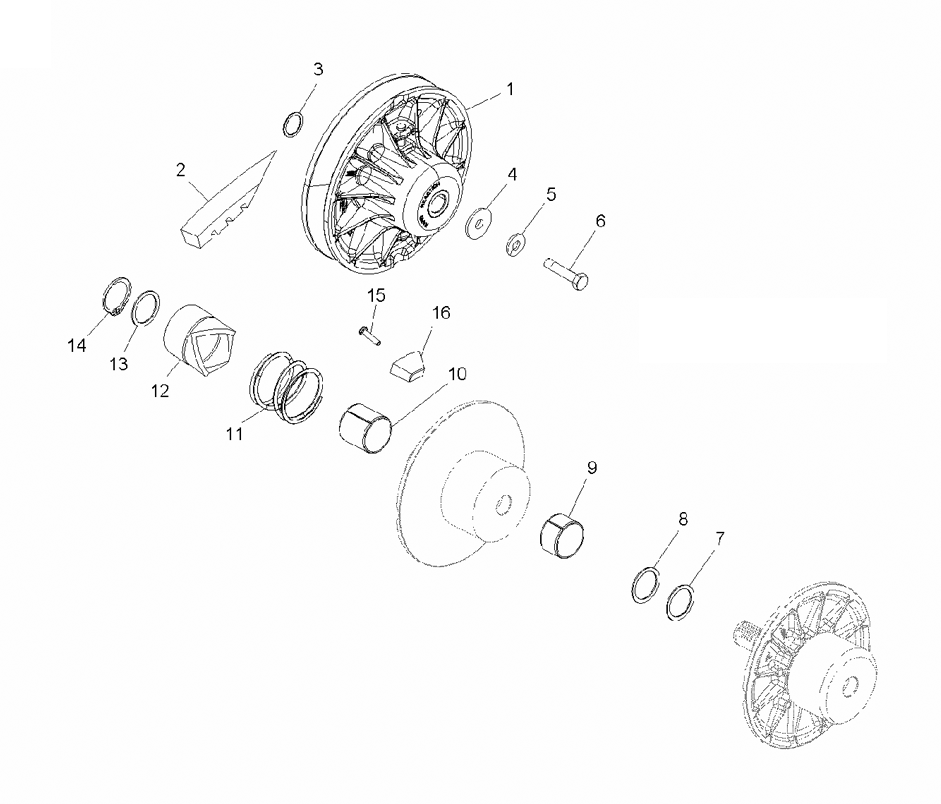

CLUTCH - SECONDARY для Polaris SPORTSMAN 6X6 (CL50AA) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    1322180 ASM., CLUTCH, DRIVEN, HVY RET [INCL. 7-14]
    ASM., CLUTCH, DRIVEN, HVY RET [INCL. 7-14]
  • 2
    3211077 BELT, DRIVE
    BELT, DRIVE
  • 3
    7556120 BUSHING-7/8 X 3/8 X 16 GA-Y (3 MAX)
    BUSHING-7/8 X 3/8 X 16 GA-Y (3 MAX)
  • 4
    5220646 WASHER, DOMED
    WASHER, DOMED
  • 5
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 6
    7515382 BOLT
    BOLT
  • 7
    7555898 WASHER-1.5X2.0X.020-Y
    WASHER-1.5X2.0X.020-Y
  • 7
    7556076 WASHER-1.50X2.00X.025-Y
    WASHER-1.50X2.00X.025-Y
  • 8
    7556804 WASHER-1.505X2.00X.030-Y
    WASHER-1.505X2.00X.030-Y
  • 9
    3576504 BUSHING, MOVEABLE, 1/2 INCH
    BUSHING, MOVEABLE, 1/2 INCH
  • 10
    3576511 BUSHING, MOVEABLE, 1 INCH
    BUSHING, MOVEABLE, 1 INCH
  • 11
    7041198 SPRING, CLUTCH (RED)
    SPRING, CLUTCH (RED)
  • 12
    5131446 RAMP, STA.MACH, HVY RET
    RAMP, STA.MACH, HVY RET
  • 13
    5210752 SPACER, .020
    SPACER, .020
  • 14
    7710448 RING, RETAINING
    RING, RETAINING
  • 15
    7511854 BOLT
    BOLT
  • 16
    5436521 BUTTON-RAMP
    BUTTON-RAMP
