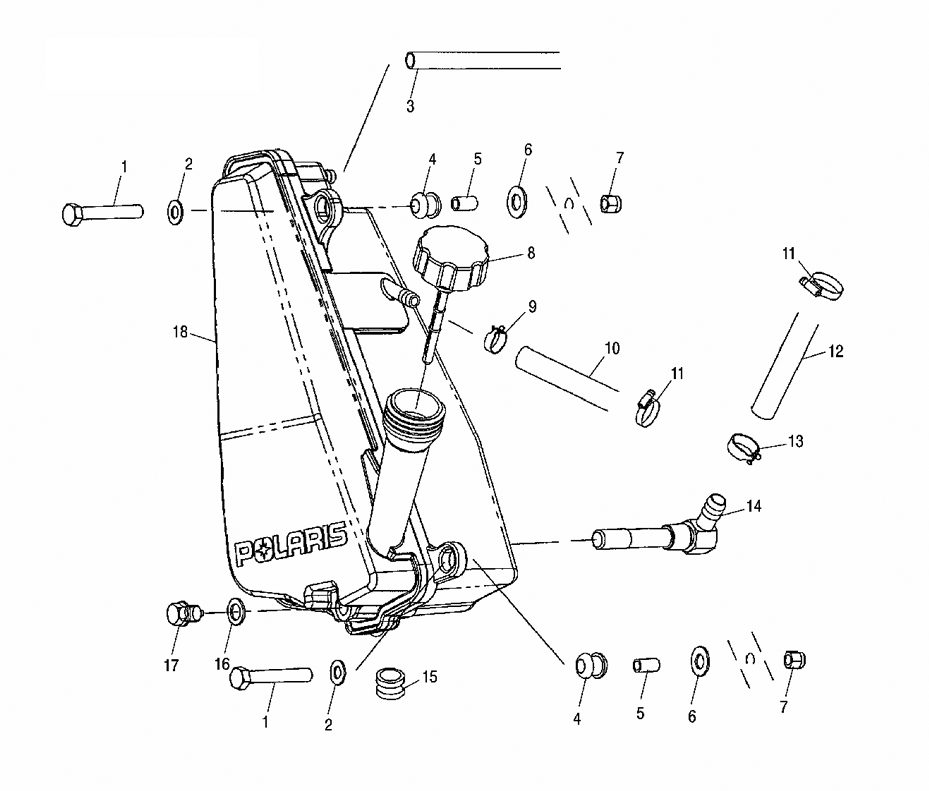

OIL TANK для Polaris SPORTSMAN 6X6 (CL50AA) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7515189 SCREW
    SCREW
  • 2
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 3
    5412191 LINE, BREATHER-85 CM, SLIT
    LINE, BREATHER-85 CM, SLIT
  • 4
    5410828 GROMMET, MTG, RESERVOIR
    GROMMET, MTG, RESERVOIR
  • 5
    5333204 BUSHING, MTG.
    BUSHING, MTG.
  • 6
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 7
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 8
    5434308 DIPSTICK-OIL TANK
    DIPSTICK-OIL TANK
  • 9
    7080699 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    8450073-600 LINE, BREATHER, 3/8 ID.
    LINE, BREATHER, 3/8 ID.
  • 11
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    8450096-100 LINE-FUEL GOODYEAR, 1/2''SAE 30R7
    LINE-FUEL GOODYEAR, 1/2''SAE 30R7
  • 13
    7081026 CLAMP-HOSE, SPRING .81
    CLAMP-HOSE, SPRING .81
  • 14
    7052326 SCREEN-OIL FILTER, 90°
    SCREEN-OIL FILTER, 90°
  • 15
    5412507 GROMMET
    GROMMET
  • 16
    5850135 WASHER
    WASHER
  • 17
    7051524 PLUG
    PLUG
  • 18
    1261653 WELDMENT-OIL TANK
    WELDMENT-OIL TANK
