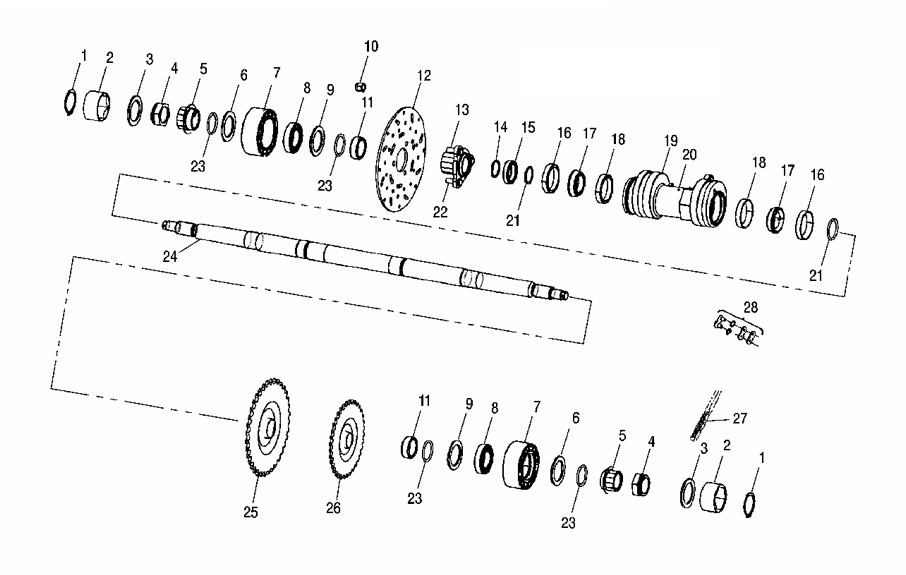

DRIVE - MIDDLE для Polaris SPORTSMAN 6X6 (CL50AA) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7710472 RING, RETAINING
    RING, RETAINING
  • 2
    5510372 EXTRUSION-RETAIN, NUT, 1.25
    EXTRUSION-RETAIN, NUT, 1.25
  • 3
    5411555 SEAL, FOAM
    SEAL, FOAM
  • 4
    7547031 NUT, JAM
    NUT, JAM
  • 5
    5630987 HUB, MIDDLE AXLE, LOCKING
    HUB, MIDDLE AXLE, LOCKING
  • 6
    3610074 SEAL, INNER
    SEAL, INNER
  • 7
    5132219 HOUSING-SWING ARM, MACH
    HOUSING-SWING ARM, MACH
  • 8
    3515501 BEARING, BALL
    BEARING, BALL
  • 9
    3610013 SEAL, REAR AXLE
    SEAL, REAR AXLE
  • 10
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 11
    5132218 SPACER-BEARING
    SPACER-BEARING
  • 12
    5244425 DISC, BRAKE, 9.0 OD, .188THK
    DISC, BRAKE, 9.0 OD, .188THK
  • 13
    1520259 HUB ASM, BRK.DISC, LOCKING-
    HUB ASM, BRK.DISC, LOCKING-
  • 14
    7710405 RING, SNAP
    RING, SNAP
  • 15
    5010462 SPACER, AXLE
    SPACER, AXLE
  • 16
    3610070 SEAL, LIP
    SEAL, LIP
  • 17
    3554518 BEARING, CONE, TAPERED
    BEARING, CONE, TAPERED
  • 18
    3554517 BEARING, CUP, TAPERED
    BEARING, CUP, TAPERED
  • 19
    5132098 HOUSING-AXLE, REAR (MACH)
    HOUSING-AXLE, REAR (MACH)
  • 20
    7080306 FITTING, LUBE.W/BALL CK.
    FITTING, LUBE.W/BALL CK.
  • 21
    5410889 O RING
    O RING
  • 22
    7515513 STUD
    STUD
  • 23
    5411739 O-RING-1.362 ID X .070
    O-RING-1.362 ID X .070
  • 24
    5132049 AXLE, MIDDLE, HYBRID
    AXLE, MIDDLE, HYBRID
  • 25
    3221139 SPROCKET-HUB, 38 TOOTH
    SPROCKET-HUB, 38 TOOTH
  • 26
    3221138 SPROCKET-HUB, 30 TOOTH
    SPROCKET-HUB, 30 TOOTH
  • 27
    3221193-080 CHAIN-520 ORD4, O-RING, 80 PITCH
    CHAIN-520 ORD4, O-RING, 80 PITCH
  • 28
    3221192 LINK-CONNECTOR, PRESS, 520, ORD4
    LINK-CONNECTOR, PRESS, 520, ORD4
