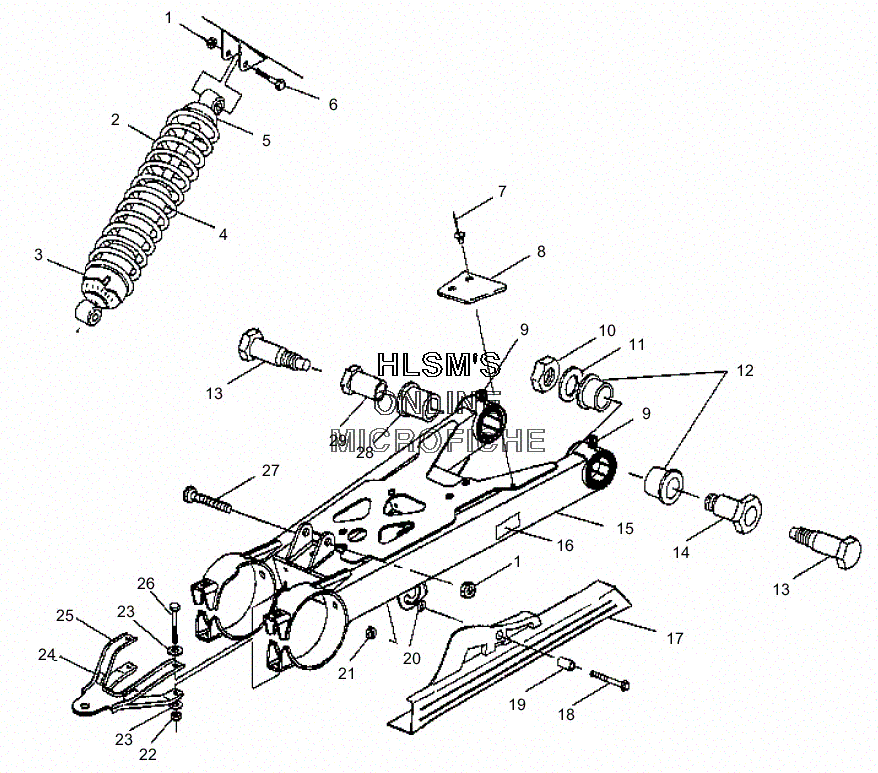

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris XPLORER (A01AG25CA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7542439 NUT, LOCK
    NUT, LOCK
  • 2
    7041877-067 SPRING-COMP, 160-200#/IN (BLACK)
    SPRING-COMP, 160-200#/IN (BLACK)
  • 3
    7041775 SHOCK, 1-3/8 (REAR) (BUILT BEFORE 301/01)
    SHOCK, 1-3/8 (REAR) (BUILT BEFORE 301/01)
  • 3
    5630551 CAM, ADJUST SPRING (BUILT AFTER 301/01)
    CAM, ADJUST SPRING (BUILT AFTER 301/01)
  • 4
    7041960 SHOCK, CDS (REAR)
    SHOCK, CDS (REAR)
  • 5
    5241147 RETAINER, SHOCK
    RETAINER, SHOCK
  • 6
    7515415 BOLT
    BOLT
  • 7
    7661046 RIVET, POP (.376-.500)
    RIVET, POP (.376-.500)
  • 8
    5432727 GUIDE, CHAIN PAD
    GUIDE, CHAIN PAD
  • 9
    7080510 FITTING, ZERK
    FITTING, ZERK
  • 10
    7547082 NUT, HEXAGON JAM
    NUT, HEXAGON JAM
  • 11
    7556035 WASHER, FLAT
    WASHER, FLAT
  • 12
    5433412 BUSHING, SWNGARM (RIGHT/BLACK)
    BUSHING, SWNGARM (RIGHT/BLACK)
  • 13
    5131697 BOLT, SWINGARM PIVOT
    BOLT, SWINGARM PIVOT
  • 14
    5133167 BUSHING, SWING ARM PIVOT (RIGHT)
    BUSHING, SWING ARM PIVOT (RIGHT)
  • 15
    1580111 ARM ASSY., SWING (INCL. 9,12,28)
    ARM ASSY., SWING (INCL. 9,12,28)
  • 16
    7078572 DECAL, ''CHAIN FREEPLAY'', HYBRID
    DECAL, ''CHAIN FREEPLAY'', HYBRID
  • 17
    5432854 GUARD, CHAIN, AXLE (REAR)
    GUARD, CHAIN, AXLE (REAR)
  • 18
    7515304 SCREW, FLANGED
    SCREW, FLANGED
  • 19
    5332828 BUSHING
    BUSHING
  • 20
    7558402 WASHER, STEEL
    WASHER, STEEL
  • 21
    7542321 NUT LOCK
    NUT LOCK
  • 22
    7547066 NUT
    NUT
  • 23
    7555883 WASHER
    WASHER
  • 24
    7072533 DECAL, HITCH
    DECAL, HITCH
  • 25
    2200472 HITCH, CHAIN DRIVEN KIT (INCL. 22-26)
    HITCH, CHAIN DRIVEN KIT (INCL. 22-26)
  • 26
    7512576 BOLT
    BOLT
  • 27
    7515438 BOLT
    BOLT
  • 28
    5433411 BUSHING, SWNGARM (LEFT)
    BUSHING, SWNGARM (LEFT)
  • 29
    5133166 BUSHING, SWING ARM PIVOT (LEFT)
    BUSHING, SWING ARM PIVOT (LEFT)
