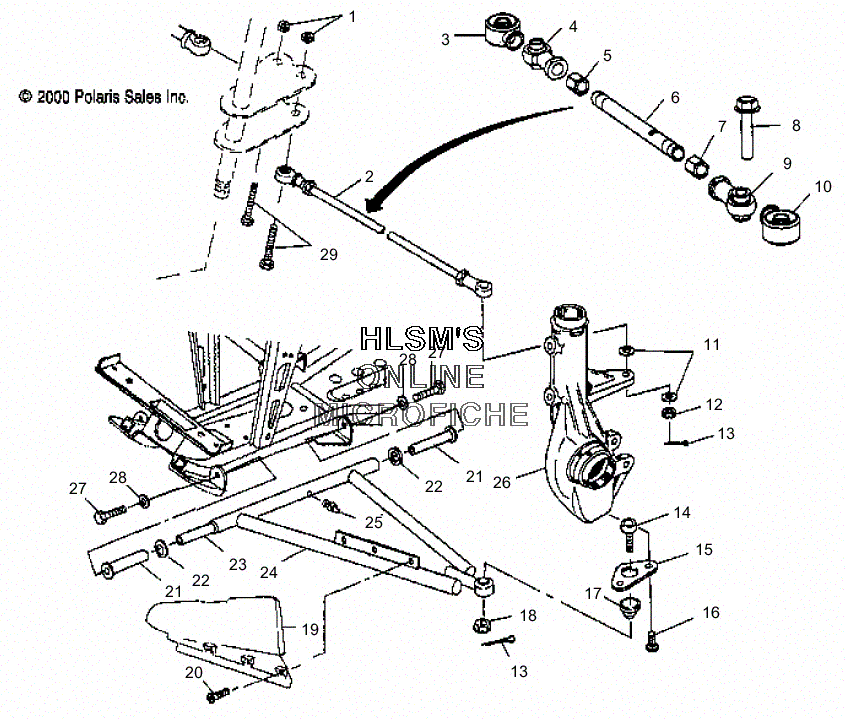

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris XPLORER (A01AG25CA) - 2001 года выпуска`
-
№АртикулНазвание
-
17542403 NUT, LOCKNUT, LOCK
-
21820805 TIE, ROD ASSY. (INCL. 3-9)TIE, ROD ASSY. (INCL. 3-9)
-
35411291 SEAL, BOOT ROD END (1/2 IN)SEAL, BOOT ROD END (1/2 IN)
-
47061034 ROD END (RIGHT)ROD END (RIGHT)
-
57542711 NUT, JAMNUT, JAM
-
65020926 ROD, TIEROD, TIE
-
77547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
87517674 BOLT, HEXAGON WASHER HEAD (BUILT AFTER 8/16/99)BOLT, HEXAGON WASHER HEAD (BUILT AFTER 8/16/99)
-
97061054 ROD, END (10MM)ROD, END (10MM)
-
105411920 BOOT, SEAL ROD END (10MM)BOOT, SEAL ROD END (10MM)
-
117556099 WASHERWASHER
-
127546904 NUT, CASTLENUT, CASTLE
-
137661203 PIN COTTERPIN COTTER
-
147080927 BALL, JOINT 52 DEGBALL, JOINT 52 DEG
-
155211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
167512284 BOLT, SOCKETBOLT, SOCKET
-
175410548 BOOT, RUBBERBOOT, RUBBER
-
187542438 NUT, CASTLENUT, CASTLE
-
195431150-070 SHIELD, CV JOINT (LEFT/BLACK)SHIELD, CV JOINT (LEFT/BLACK)
-
195431149-070 SHIELD, CV JOINT (RIGHT/BLACK)SHIELD, CV JOINT (RIGHT/BLACK)
-
207512084 SCREWSCREW
-
215433066 BUSHING, A ARM LONG (BLACK)BUSHING, A ARM LONG (BLACK)
-
225020677 BUSHING, A-ARM SPACERBUSHING, A-ARM SPACER
-
235020681 SHAFT, A-ARMSHAFT, A-ARM
-
242201611 A-FRAME, KIT (LEFT/BLACK) (1541450)A-FRAME, KIT (LEFT/BLACK) (1541450)
-
242201612 A-FRAME, KIT (RIGHT/BLACK) (1541451)A-FRAME, KIT (RIGHT/BLACK) (1541451)
-
257080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
277512492 SCREWSCREW
-
287552603 WASHERWASHER
-
297515415 BOLTBOLT
