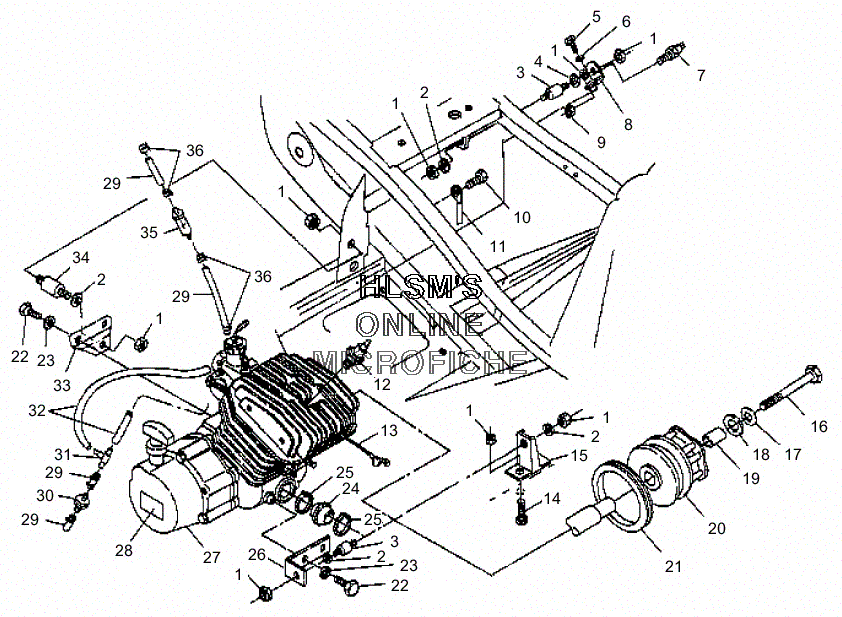

MOUNTING - ENGINE для Polaris XPLORER (A01AG25CA) - 2001 года выпуска
-
№АртикулНазвание
-
17547108 NUTNUT
-
27555823 WASHERWASHER
-
33110026 MOUNT, MOTORMOUNT, MOTOR
-
45430802 INSULATOR, MOTOR MOUNTINSULATOR, MOTOR MOUNT
-
57512315 BOLTBOLT
-
67552901 LOCK WASHERLOCK WASHER
-
74010284 SWITCH, TEMPERATURE 260ШFSWITCH, TEMPERATURE 260ШF
-
85244119-067 BRACKET, ENGINE MOUNT TOP (BLACK)BRACKET, ENGINE MOUNT TOP (BLACK)
-
97542103 NUT, LOCKNUT, LOCK
-
107512232 BOLTBOLT
-
114010132 CABLE, GND-ENGINECABLE, GND-ENGINE
-
123070156 SPARK PLUGSPARK PLUG
-
134010129 CABLE, SOLENOID/START DBLBOOTCABLE, SOLENOID/START DBLBOOT
-
147512457 BOLTBOLT
-
151040687-067 MOUNT, ENGINE (FRONT/BLACK)MOUNT, ENGINE (FRONT/BLACK)
-
167512566 BOLTBOLT
-
177575202 WASHER LOCKWASHER LOCK
-
185210748 WASHERWASHER
-
195430261 BUSHING, RETAINING BOLTBUSHING, RETAINING BOLT
-
227512490 SCREWSCREW
-
237552603 WASHERWASHER
-
245410421 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
257080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
265242896-067 BRACKET, ENGINE MOUNT (FRONT/BLACK)BRACKET, ENGINE MOUNT (FRONT/BLACK)
-
273084717 SHORT BLOCK, (EC25PFE14) SEE FOOTNOTE:SHORT BLOCK, (EC25PFE14) SEE FOOTNOTE:
-
287078577 DECAL, DRAIN RECOILDECAL, DRAIN RECOIL
-
298450040-600 FUEL LINE (1/4 ID 600 CM.) (OPT)FUEL LINE (1/4 ID 600 CM.) (OPT)
-
307051011 VENT, CHECKVALVEVENT, CHECKVALVE
-
317052005 FITTING, TEEFITTING, TEE
-
328360009-600 FUEL LINE (1/8 ID 600 CM.) (OPT)FUEL LINE (1/8 ID 600 CM.) (OPT)
-
335242897-067 BRACKET, ENGINE MOUNT (REAR/BLACK)BRACKET, ENGINE MOUNT (REAR/BLACK)
-
343110028 MOUNT, MOTORMOUNT, MOTOR
-
352530009 FILTER, SMALL IN-LINEFILTER, SMALL IN-LINE
-
367080003 CLAMP, HOSECLAMP, HOSE
