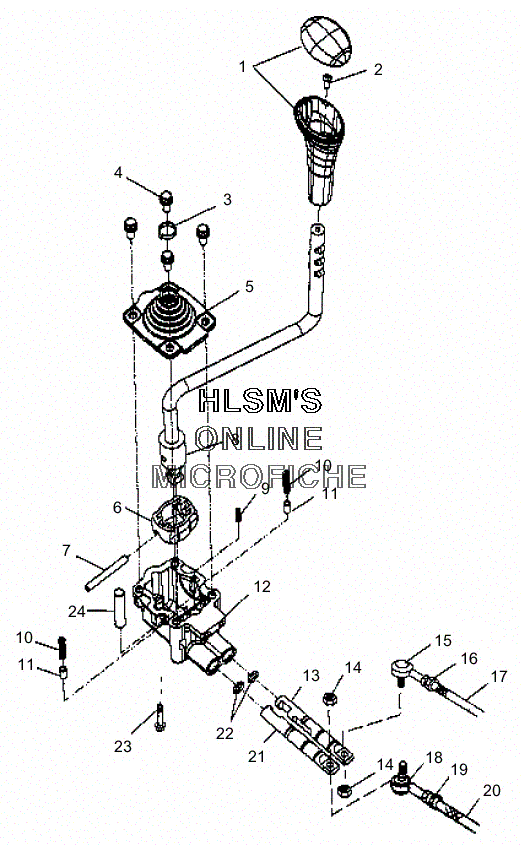

GEAR SELECTOR для Polaris XPLORER (A01AG25CA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1A
    1341316 GEAR, SELECTOR, XPL250, ASSY (INCL. 1-12,21-24)
    GEAR, SELECTOR, XPL250, ASSY (INCL. 1-12,21-24)
  • 1
    3233195 GEAR SELECT KNOB ASSY. (BLACK)
    GEAR SELECT KNOB ASSY. (BLACK)
  • 2
    7512024 SCREW
    SCREW
  • 3
    3233131 STRAP, WIRE
    STRAP, WIRE
  • 4
    3233649 SCREW
    SCREW
  • 5
    3233648 COVER, GEAR SELECTOR BOOT
    COVER, GEAR SELECTOR BOOT
  • 6
    3233646 PLASTIC, SPHERE
    PLASTIC, SPHERE
  • 7
    3233645 PIN, DOWEL
    PIN, DOWEL
  • 8
    3233727 HANDLE, SUB ASSY, GEARSELECTOR
    HANDLE, SUB ASSY, GEARSELECTOR
  • 9
    3233643 SPRING, CENTERING
    SPRING, CENTERING
  • 10
    3233642 SPRING, DETENT
    SPRING, DETENT
  • 11
    3233060 BULLET, DETENT
    BULLET, DETENT
  • 12
    3233641 GEAR, SELECTOR, BODY
    GEAR, SELECTOR, BODY
  • 13
    3233640 SLIDE, HIGH/REV
    SLIDE, HIGH/REV
  • 14
    7546707 NUT, METRIC
    NUT, METRIC
  • 15
    7061013 ROD END, 6MM. (LEFT)
    ROD END, 6MM. (LEFT)
  • 16
    7546702 NUT
    NUT
  • 17
    5020743 ROD, SHIFT LINKAGE
    ROD, SHIFT LINKAGE
  • 18
    7061014 ROD END, 6MM. (RIGHT)
    ROD END, 6MM. (RIGHT)
  • 19
    7546701 NUT
    NUT
  • 20
    5132042 ROD, SHIFT LINKAGE .31X11.75
    ROD, SHIFT LINKAGE .31X11.75
  • 21
    3233639 SLIDE-LOW
    SLIDE-LOW
  • 22
    3233076 O-RING
    O-RING
  • 23
    7512232 BOLT
    BOLT
  • 24
    3233644 PIN, DOWEL
    PIN, DOWEL
