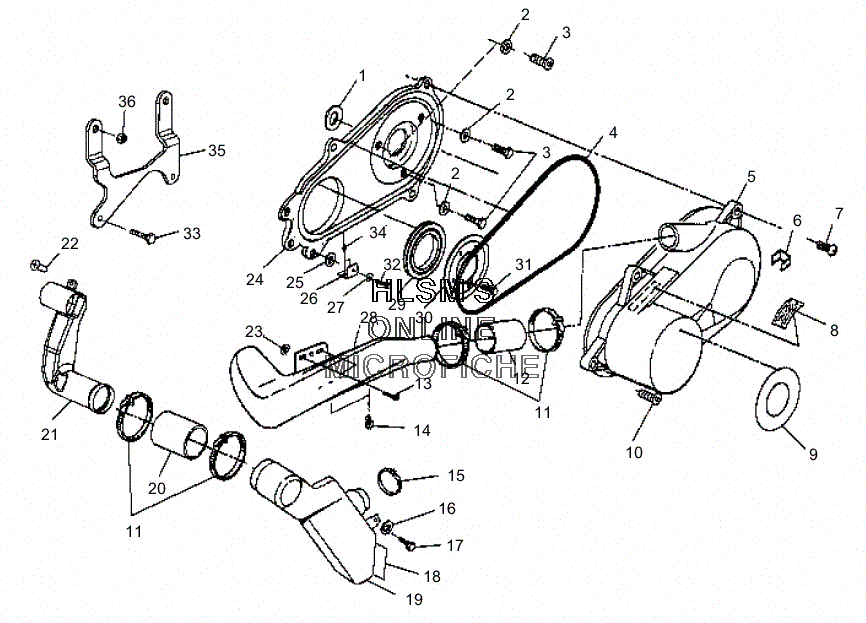

CLUTCH COVER для Polaris XPLORER (A01AG25CA) - 2001 года выпуска
-
№АртикулНазвание
-
15411553 SEAL, CLUTCH COVER INNERSEAL, CLUTCH COVER INNER
-
27555748 WASHER (BUILT BEFORE 4/03/00)WASHER (BUILT BEFORE 4/03/00)
-
37512278 BOLT (BUILT BEFORE 4/03/00)BOLT (BUILT BEFORE 4/03/00)
-
37517860 BOLT/RBR WASHER 1/4-20X1, ASSY. (BUILT AFTER 4/03/00)BOLT/RBR WASHER 1/4-20X1, ASSY. (BUILT AFTER 4/03/00)
-
45521301 SEAL, CLUTCH COVERSEAL, CLUTCH COVER
-
55433542 COVER, CLUTCH (FRONT)COVER, CLUTCH (FRONT)
-
67670051 CLIP, CLUTCH COVERCLIP, CLUTCH COVER
-
77512093 SCREWSCREW
-
87078689 DECALDECAL
-
97074782 DECAL, AUTO.TRANSMISSIONDECAL, AUTO.TRANSMISSION
-
107512094 SCREWSCREW
-
117080492 STRAP, WEATHER RESISTOR (BLACK)STRAP, WEATHER RESISTOR (BLACK)
-
125410421 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
137517916 SCREWSCREW
-
145432302 CLIP, OIL LINE RET.CLIP, OIL LINE RET.
-
157080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
167555783 WASHERWASHER
-
177512018 SCREWSCREW
-
185811373 FOIL, TAPE AIR BOXFOIL, TAPE AIR BOX
-
195433258 DUCT, CLUTCH INLETDUCT, CLUTCH INLET
-
205411822 BOOT, CLUTCH AIR INLET UPPERBOOT, CLUTCH AIR INLET UPPER
-
215433450 DUCT, CLUTCH INLETDUCT, CLUTCH INLET
-
227512084 SCREWSCREW
-
237556091 SPACERSPACER
-
242200792 COVER, INNER CLUTCH KIT (INCL. 4,7,10,29,32)COVER, INNER CLUTCH KIT (INCL. 4,7,10,29,32)
-
257555932 WASHER, NYLONWASHER, NYLON
-
265242693-067 BRACKET, CLUTCH COVER (BLACK)BRACKET, CLUTCH COVER (BLACK)
-
277555935 WASHERWASHER
-
285433323 DUCT, OUTLET CLUTCH 13.57DUCT, OUTLET CLUTCH 13.57
-
295410749 SEAL, COVER CASESEAL, COVER CASE
-
305222877-067 BRACKET, RETAINER SEALBRACKET, RETAINER SEAL
-
327512098 SCREWSCREW
-
337512232 BOLTBOLT
-
347661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
355242208-067 BRACKET, CLUTCH, LOW (BLACK)BRACKET, CLUTCH, LOW (BLACK)
-
367547076 NUT, HEXAGON HEADNUT, HEXAGON HEAD
