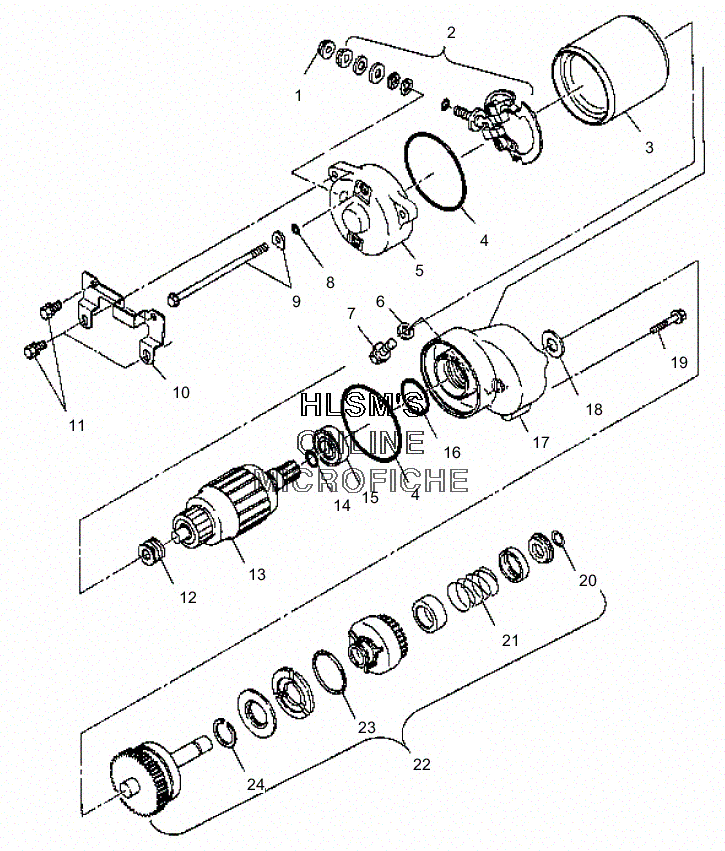

STARTING MOTOR для Polaris XPLORER (A01AG25CA) - 2001 года выпуска`
-
№АртикулНазвание
-
13083649 NUT, FLANGENUT, FLANGE
-
23084406 BRUSH, COMPLETE 2-POLEBRUSH, COMPLETE 2-POLE
-
33087043 ASSY. STARTING MOTOR (INCL. 1-5,8,9,12-18,20-24)ASSY. STARTING MOTOR (INCL. 1-5,8,9,12-18,20-24)
-
33085393 STARTER MOTOR ASSY. (INCL. 1,2,4,5,8,9,12-17)STARTER MOTOR ASSY. (INCL. 1,2,4,5,8,9,12-17)
-
43084405 RING, RUBBERRING, RUBBER
-
53085032 COVER, STARTER (REAR)COVER, STARTER (REAR)
-
63082758 WASHER, FLATWASHER, FLAT
-
73086782 BOLT, FLANGEBOLT, FLANGE
-
83084408 O-RINGO-RING
-
93084407 BOLT, THROUGHBOLT, THROUGH
-
103083650 BRACKETBRACKET
-
113081665 BOLTBOLT
-
123083754 WASHER SETWASHER SET
-
133084404 ARMATURE ASSY. (INCL. 14,15)ARMATURE ASSY. (INCL. 14,15)
-
143083934 O-RINGO-RING
-
153083777 BALL BEARINGBALL BEARING
-
163083741 O-RINGO-RING
-
173085305 COVER (FRONT) (INCL. 16)COVER (FRONT) (INCL. 16)
-
183083737 WASHERWASHER
-
193082038 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
203084409 CLIPCLIP
-
213084410 SPRING, RETURNSPRING, RETURN
-
223087030 GEAR SHAFT ASSY. (INCL. 18,20,21,23,24)GEAR SHAFT ASSY. (INCL. 18,20,21,23,24)
-
233084411 SPRING, WEIGHTSPRING, WEIGHT
-
243084412 CLIPCLIP
