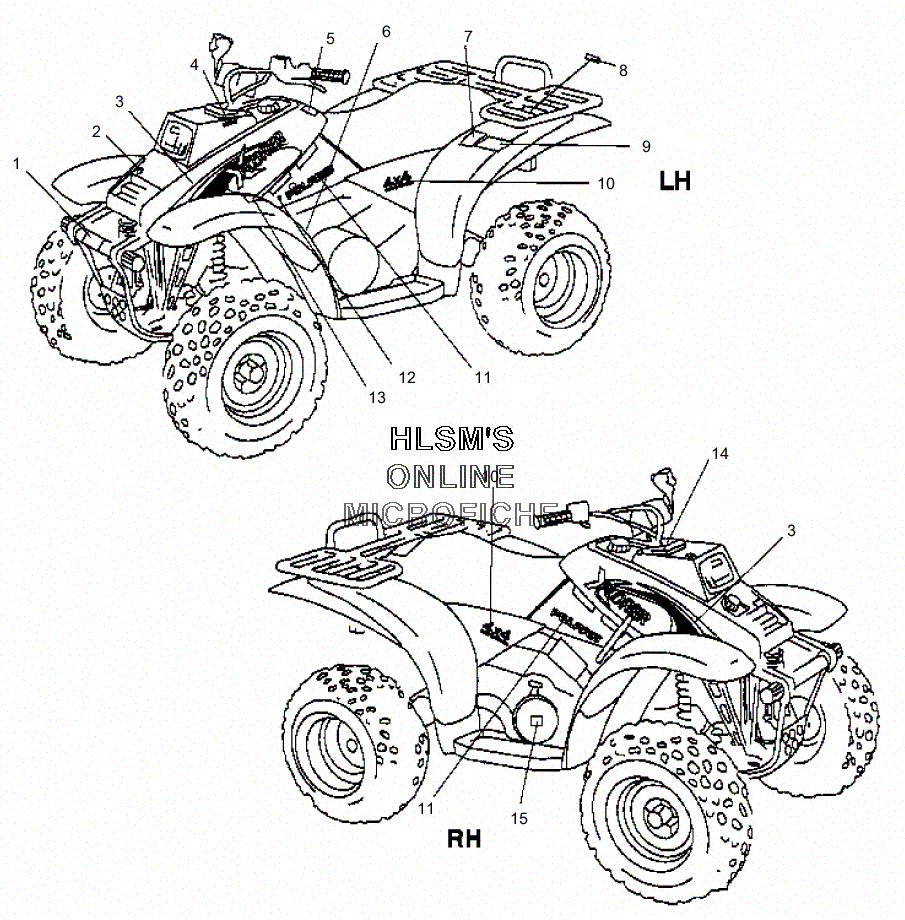

DECALS для Polaris XPLORER (A01AG25CA) - 2001 года выпуска
-
№АртикулНазвание
-
17074220 DECAL, MACPHERSON STRUTDECAL, MACPHERSON STRUT
-
27078465 DECAL, STAR LOGODECAL, STAR LOGO
-
37078417 DECAL, TANK SIDE (LEFT)DECAL, TANK SIDE (LEFT)
-
37078418 DECAL, TANK SIDE (RIGHT)DECAL, TANK SIDE (RIGHT)
-
47076273 DECAL, OVER RIDE SW. (AWD)DECAL, OVER RIDE SW. (AWD)
-
57078253 DECALDECAL
-
67079085 DECALDECAL
-
77077920 DECAL 98 WARNING PASS. SCRAM.DECAL 98 WARNING PASS. SCRAM.
-
87079294 DECAL, WARNING, RACK, 125 LBS (REAR)DECAL, WARNING, RACK, 125 LBS (REAR)
-
97079087 DECALDECAL
-
107078439 DECAL, ''4X4 CDS''DECAL, ''4X4 CDS''
-
117078438 DECAL, ''POLARIS'', SIDEPANEL (WHITE)DECAL, ''POLARIS'', SIDEPANEL (WHITE)
-
127074637 DECAL, FUEL LEVERDECAL, FUEL LEVER
-
137079083 DECALDECAL
-
147074935 DECAL 95-97 WARNING AWD SWITCHDECAL 95-97 WARNING AWD SWITCH
-
157078577 DECAL, DRAIN RECOILDECAL, DRAIN RECOIL
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE W/ CYLINDER
- CRANKSHAFT W/ PISTON
- CV JOINT - NEAPCO
- • DECALS
- DRIVESHAFT - INTERMEDIATE
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FRONT - GEARCASE
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE MOUNTING
- HANDLEBAR
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HEADLIGHT
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- OIL PUMP
- OIL TANK
- RACK AND BUMPER MOUNTING - FRONT
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
