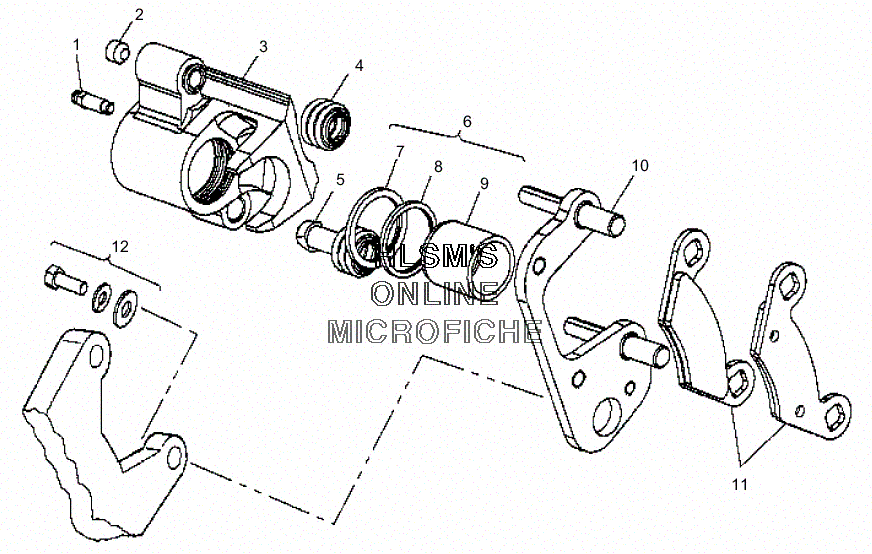

BRAKE - FRONT для Polaris XPLORER (A01AG25CA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1A
    1910547 CALIPER, BRAKE ASSY. 1.187, 7'' (LEFT) (INCL. 1-3,5-10)
    CALIPER, BRAKE ASSY. 1.187, 7'' (LEFT) (INCL. 1-3,5-10)
  • 1A
    1910548 CALIPER, BRAKE ASSY 1.187 7'' (RIGHT) (INCL. 1-3,5-10)
    CALIPER, BRAKE ASSY 1.187 7'' (RIGHT) (INCL. 1-3,5-10)
  • 1
    7080352 SCREW, BLEEDER
    SCREW, BLEEDER
  • 2
    7515489 SETSCREW, SOCKET HEAD
    SETSCREW, SOCKET HEAD
  • 3
    5132960 CALIPER, BRAKE (LEFT) 187PORT
    CALIPER, BRAKE (LEFT) 187PORT
  • 3
    5132961 CALIPER, BRAKE (RIGHT) 187PORT
    CALIPER, BRAKE (RIGHT) 187PORT
  • 3
    1930642 BOOT, BRAKE KIT (FRONT)
    BOOT, BRAKE KIT (FRONT)
  • 4
    5410494 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 5
    5410495 BOOT, BUSHING
    BOOT, BUSHING
  • 6
    1930665 PISTON AND SEAL, KIT (INCL. 7-9)
    PISTON AND SEAL, KIT (INCL. 7-9)
  • 7
    5410779 RING, SQUARE MOLDED (.094)
    RING, SQUARE MOLDED (.094)
  • 8
    5410780 RING, SQUARE MOLDED (.103 X .134)
    RING, SQUARE MOLDED (.103 X .134)
  • 9
    5132294 PISTON AND SEAL, KIT
    PISTON AND SEAL, KIT
  • 10
    1910412 MOUNT, CALIPER ASSY.
    MOUNT, CALIPER ASSY.
  • 11
    2201398 BRAKE PADS, AFT (FRONT)
    BRAKE PADS, AFT (FRONT)
  • 12
    7512365 SCREW, CAP
    SCREW, CAP
  • 12
    7558402 WASHER, STEEL
    WASHER, STEEL
  • 12
    7552901 LOCK WASHER
    LOCK WASHER
