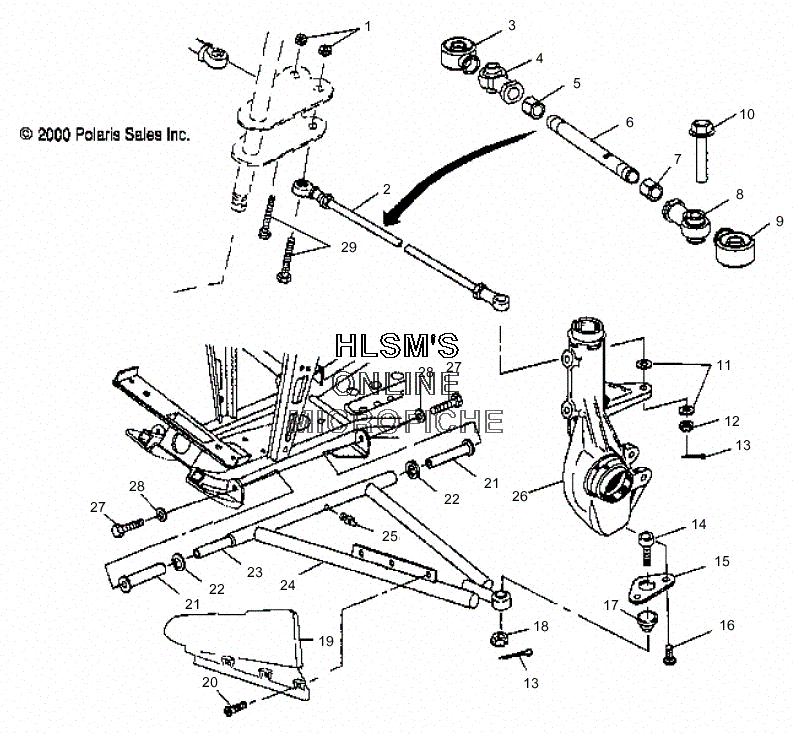

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris XPLORER 400 (A01CG38CA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7542403 NUT, LOCK
    NUT, LOCK
  • 2
    1820805 TIE, ROD ASSY. (1/2-20X13.4) (INCL. 3-8)
    TIE, ROD ASSY. (1/2-20X13.4) (INCL. 3-8)
  • 3
    5411291 SEAL, BOOT ROD END 1/2 IN
    SEAL, BOOT ROD END 1/2 IN
  • 4
    7061034 ROD END (RIGHT)
    ROD END (RIGHT)
  • 5
    7542711 NUT, JAM
    NUT, JAM
  • 6
    5020926 ROD, TIE
    ROD, TIE
  • 7
    7547028 NUT, JAM (LEFT)
    NUT, JAM (LEFT)
  • 8
    7061054 ROD, END (10MM) (1/2-20LH) (42 DEG)
    ROD, END (10MM) (1/2-20LH) (42 DEG)
  • 9
    5411920 BOOT, SEAL ROD END (10MM)
    BOOT, SEAL ROD END (10MM)
  • 10
    7517674 BOLT, HEXAGON WASHER HEAD
    BOLT, HEXAGON WASHER HEAD
  • 11
    7556099 WASHER
    WASHER
  • 12
    7546904 NUT, CASTLE
    NUT, CASTLE
  • 13
    7661203 PIN COTTER
    PIN COTTER
  • 14
    7080927 BALL, JOINT 52 DEG
    BALL, JOINT 52 DEG
  • 15
    5211121 BRACKET, BALL JOINT
    BRACKET, BALL JOINT
  • 16
    7512284 BOLT, SOCKET
    BOLT, SOCKET
  • 17
    5410548 BOOT, RUBBER
    BOOT, RUBBER
  • 18
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 19
    5431150-070 SHIELD, CV JOINT (LEFT/BLACK)
    SHIELD, CV JOINT (LEFT/BLACK)
  • 19
    5431149-070 SHIELD, CV JOINT (RIGHT/BLACK)
    SHIELD, CV JOINT (RIGHT/BLACK)
  • 20
    7512084 SCREW
    SCREW
  • 21
    5433066 BUSHING, A ARM LONG (BLACK)
    BUSHING, A ARM LONG (BLACK)
  • 22
    5020677 BUSHING, A-ARM SPACER
    BUSHING, A-ARM SPACER
  • 23
    5020681 SHAFT, A-ARM
    SHAFT, A-ARM
  • 24
    2201611 A-FRAME, KIT (LEFT/BLACK) (1541450)
    A-FRAME, KIT (LEFT/BLACK) (1541450)
  • 24
    2201612 A-FRAME, KIT (RIGHT/BLACK) (1541451)
    A-FRAME, KIT (RIGHT/BLACK) (1541451)
  • 25
    7080433 ZERK, FITTING THREADED
    ZERK, FITTING THREADED
  • 27
    7512492 SCREW
    SCREW
  • 28
    7552603 WASHER
    WASHER
  • 29
    7515415 BOLT
    BOLT
