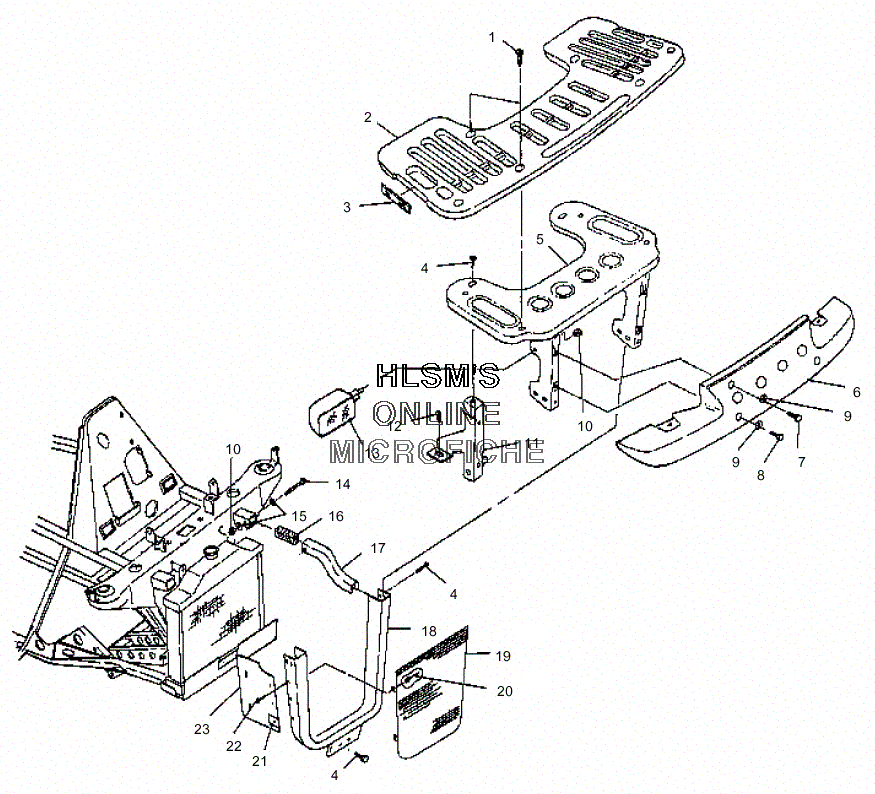

RACK AND BUMPER MOUNTING - FRONT для Polaris XPLORER 400 (A01CG38CA) - 2001 года выпуска
‹-+›
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
22670180-070 RACK (FRONT/BLACK) (INCL. REF. 3 AND DECAL)RACK (FRONT/BLACK) (INCL. REF. 3 AND DECAL)
-
32670071 REFLECTOR, AMBERREFLECTOR, AMBER
-
47515399 SCREWSCREW
-
52200775 WELD, RACK MOUNT KIT (FRONT)WELD, RACK MOUNT KIT (FRONT)
-
65432155-070 BUMPER (BLACK)BUMPER (BLACK)
-
77515391 BOLTBOLT
-
87515390 BOLTBOLT
-
97555954 WASHERWASHER
-
107542324 NUTNUT
-
111013210-067 SUPPORT, RACK (FRONT/LEFT/BLACK)SUPPORT, RACK (FRONT/LEFT/BLACK)
-
111013211-067 SUPPORT, RACK (FRONT/RIGHT/BLACK)SUPPORT, RACK (FRONT/RIGHT/BLACK)
-
127512232 BOLTBOLT
-
132431011 H/L ASSY. 30/30W (LEFT)H/L ASSY. 30/30W (LEFT)
-
132431012 H/L ASSY. 30/30W (RIGHT)H/L ASSY. 30/30W (RIGHT)
-
134030061 BULB, H/L, 30/30 W.BULB, H/L, 30/30 W.
-
147515382 BOLTBOLT
-
157558402 WASHER, STEELWASHER, STEEL
-
165810467 PLUG, FRAMEPLUG, FRAME
-
175244623-067 EXTENSION, FRAME (LEFT/BLACK)EXTENSION, FRAME (LEFT/BLACK)
-
175244624-067 EXTENSION, FRAME (RIGHT/BLACK)EXTENSION, FRAME (RIGHT/BLACK)
-
185241583-067 WELD GUARD, BRUSH (BLACK)WELD GUARD, BRUSH (BLACK)
-
195240591-067 GRILL, BRUSH GUARD (BLACK)GRILL, BRUSH GUARD (BLACK)
-
207621330 RIVET, POPRIVET, POP
-
217670094 NUTNUT
-
227512097 SCREWSCREW
-
235433923 SHIELD, RADIATOR SIDE (LEFT)SHIELD, RADIATOR SIDE (LEFT)
-
235433924 SHEILD, RADIATOR SIDE (RIGHT)SHEILD, RADIATOR SIDE (RIGHT)
