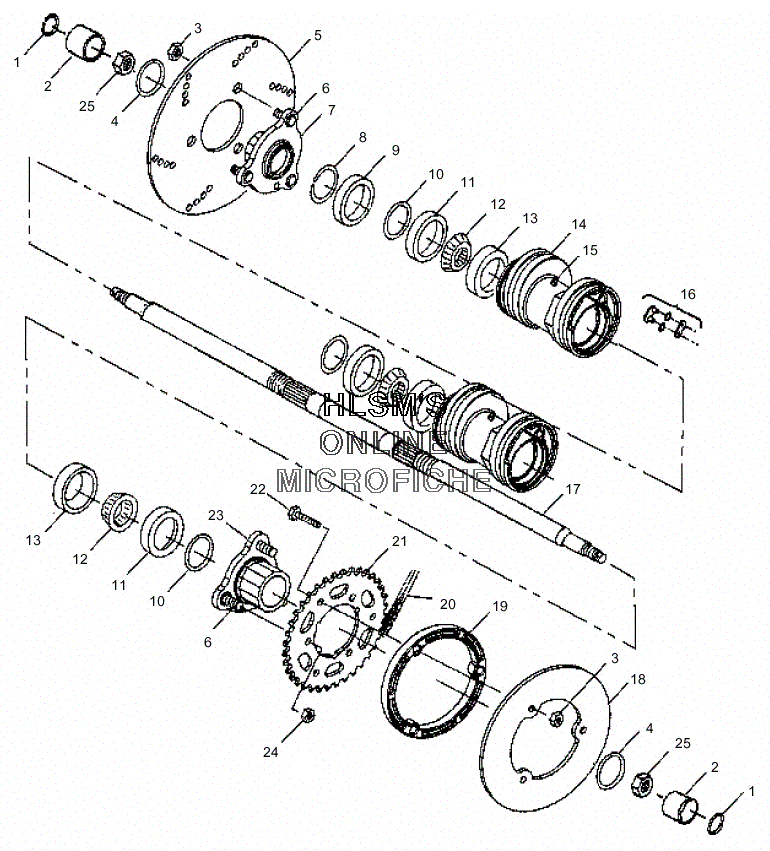

HOUSING - REAR W/ AXLE для Polaris XPLORER 400 (A01CG38CA) - 2001 года выпуска
-
№АртикулНазвание
-
17710472 RING, RETAININGRING, RETAINING
-
25510313 EXTRUSION, RETAINER NUTEXTRUSION, RETAINER NUT
-
37542439 NUT, LOCKNUT, LOCK
-
45411555 SEAL, FOAMSEAL, FOAM
-
55243679 DISC, BRAKE 8.0 OD .188DISC, BRAKE 8.0 OD .188
-
67515513 STUDSTUD
-
71520259 HUB ASSY., BRAKE DISC LOCKING (INCL. 6)HUB ASSY., BRAKE DISC LOCKING (INCL. 6)
-
87710405 RING, SNAPRING, SNAP
-
95010462 SPACER, AXLESPACER, AXLE
-
105410889 O-RINGO-RING
-
113610070 SEAL, LIPSEAL, LIP
-
123554518 BEARING, CONE TAPEREDBEARING, CONE TAPERED
-
133554517 BEARING, CUP TAPEREDBEARING, CUP TAPERED
-
145132098 HOUSING, AXLE (REAR)HOUSING, AXLE (REAR)
-
157080306 FITTING, LUBE. W/BALL CHECKFITTING, LUBE. W/BALL CHECK
-
163225027 LINK, CONNECT 520 ORDLINK, CONNECT 520 ORD
-
175131968 AXLE ASSY, KITAXLE ASSY, KIT
-
185211585-067 GUARD, SPROCKET ALUM (38 TEETH/BLACK)GUARD, SPROCKET ALUM (38 TEETH/BLACK)
-
195630586 SPACER, SPROCKET GUARDSPACER, SPROCKET GUARD
-
203221111-076 CHAIN, 76P 520 ORD O-RINGCHAIN, 76P 520 ORD O-RING
-
213222109 SPROCKET, AXLE (REAR/36 TEETH)SPROCKET, AXLE (REAR/36 TEETH)
-
227512404 BOLTBOLT
-
231520258 HUB ASSY, SPROCKET LOCKING (INCL. 6)HUB ASSY, SPROCKET LOCKING (INCL. 6)
-
247547108 NUTNUT
-
257547031 NUT, JAMNUT, JAM
