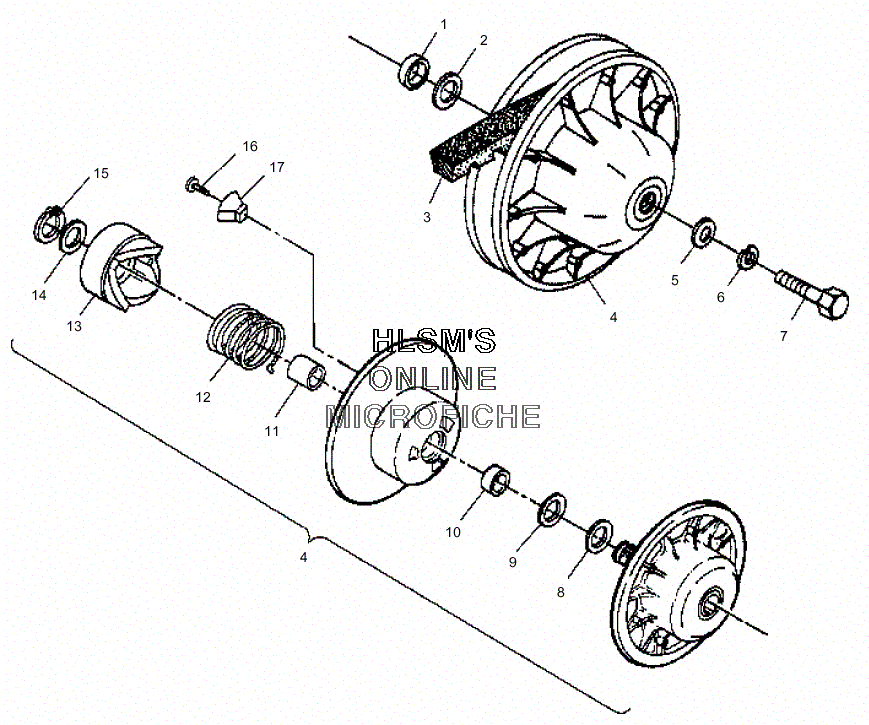

CLUTCH - DRIVEN для Polaris XPLORER 400 (A01CG38CA) - 2001 года выпуска
-
№АртикулНазвание
-
15010266 SPACER, DRIVEN CLUTCHSPACER, DRIVEN CLUTCH
-
27556120 BUSHING (OPT)BUSHING (OPT)
-
33211077 BELT, DRIVE CLOSE TOLBELT, DRIVE CLOSE TOL
-
41322182 CLUTCH, DRIVEN 3-ANGLE HVY RET (INCL. 8-17)CLUTCH, DRIVEN 3-ANGLE HVY RET (INCL. 8-17)
-
55220646 WASHER, DOMEDWASHER, DOMED
-
67552901 LOCK WASHERLOCK WASHER
-
77515382 BOLTBOLT
-
87555898 WASHER (.020 '') (OPT)WASHER (.020 '') (OPT)
-
87556076 WASHER (.025 '') (OPT)WASHER (.025 '') (OPT)
-
97556804 WASHER (.030'') (OPT)WASHER (.030'') (OPT)
-
103576504 BUSHING, DRIVEN (1/2'')BUSHING, DRIVEN (1/2'')
-
113576511 BUSHING (1'')BUSHING (1'')
-
127041198 SPRING, CLUTCH (RED)SPRING, CLUTCH (RED)
-
135132344 RAMP, STA, COMPRAMP, STA, COMP
-
145210752 SPACERSPACER
-
157710448 RING, RET.RING, RET.
-
167511854 BOLTBOLT
-
175430766 BUTTON, RAMPBUTTON, RAMP
