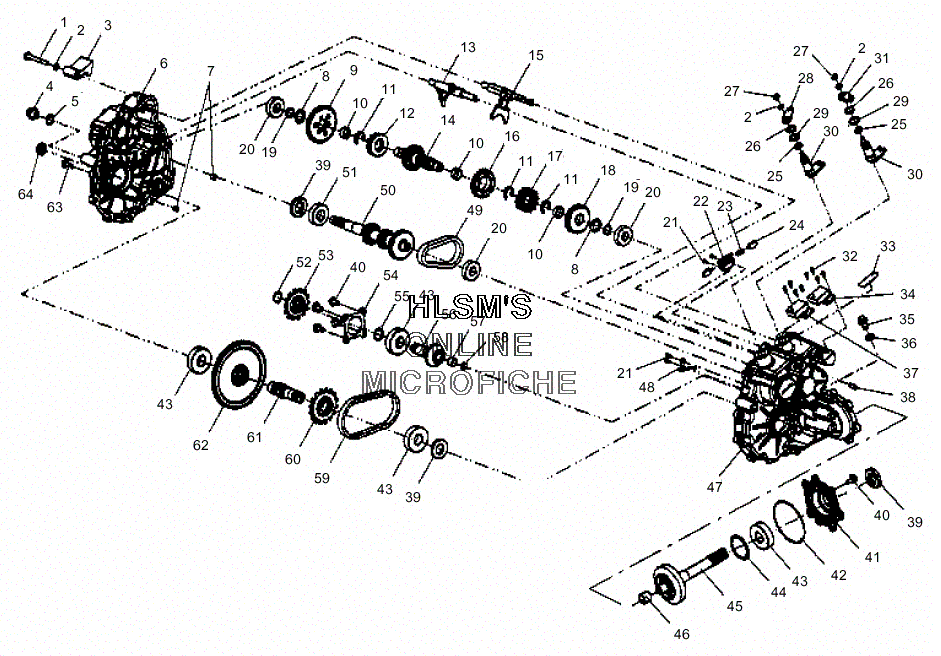

GEARCASE - INTERNAL COMPONENTS (IF BUILT BOFORE 4/01/01) для Polaris XPLORER 400 (A01CG38CA) - 2001 года выпуска`
-
№АртикулНазвание
-
1A1341326 GEARCASE, HLR CDS (INCL 1-64)GEARCASE, HLR CDS (INCL 1-64)
-
13233525 SCREWSCREW
-
23233054 WASHERWASHER
-
33233526 DAMPENER, CARBURETOR VIBRATIONDAMPENER, CARBURETOR VIBRATION
-
43233448 PLUGPLUG
-
53233035 WASHERWASHER
-
63233632 GEARCASE (LEFT)GEARCASE (LEFT)
-
73233529 PIPE, KNOCKPIPE, KNOCK
-
83233176 WASHERWASHER
-
93233731 GEAR (33 TEETH)GEAR (33 TEETH)
-
103233718 BEARING, NEEDLE SPLIT CAGEBEARING, NEEDLE SPLIT CAGE
-
113233720 RING, RET-RING EXTERNALRING, RET-RING EXTERNAL
-
123233732 DOG, ENGAGEMENT LOWDOG, ENGAGEMENT LOW
-
133233706 SHIFT FORK, LOWSHIFT FORK, LOW
-
143233736 SHAFT, REVERSE (31 TEETH)SHAFT, REVERSE (31 TEETH)
-
153233633 FORK, SHIFT HIGH/REVFORK, SHIFT HIGH/REV
-
163233719 SPROCKET (24 TEETH)SPROCKET (24 TEETH)
-
173233721 DOG, ENGAGEMENT HIGH/REVDOG, ENGAGEMENT HIGH/REV
-
183233722 GEAR (30 TEETH)GEAR (30 TEETH)
-
193233177 RING, RETAININGRING, RETAINING
-
203233018 BEARINGBEARING
-
213233033 SCREW, TAPPING W/LOCK WASHERSCREW, TAPPING W/LOCK WASHER
-
223233309 BRACKET, INTERLOCKBRACKET, INTERLOCK
-
233233032 SPRINGSPRING
-
243233308 PIN, INTERLOCKPIN, INTERLOCK
-
253233548 O-RINGO-RING
-
263233045 RING, RETAININGRING, RETAINING
-
273233055 NUTNUT
-
283233547 BELLCRANKBELLCRANK
-
293233040 WASHERWASHER
-
303233549 SHAFT, SHIFTSHAFT, SHIFT
-
313233153 BELLCRANKBELLCRANK
-
323233691 SCREWSCREW
-
333233636 DECAL, SWITCHDECAL, SWITCH
-
343233635 SWITCH, GEAR INDICATION 3 PISTONSSWITCH, GEAR INDICATION 3 PISTONS
-
353233711 PLUG, OIL FILLPLUG, OIL FILL
-
363233324 WASHERWASHER
-
373233617 SWITCH, GEAR INDICATION 2 PISTONSSWITCH, GEAR INDICATION 2 PISTONS
-
383233037 VENTVENT
-
393233248 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
403233539 SCREWSCREW
-
413233556 COVER, SNORKELCOVER, SNORKEL
-
423233555 O-RINGO-RING
-
433233020 BEARINGBEARING
-
443233554 SHIM (OPT)SHIM (OPT)
-
453233723 SNORKEL, SUBASSY. SHAFTSNORKEL, SUBASSY. SHAFT
-
463233552 BUSHING, GARLOCKBUSHING, GARLOCK
-
473233799 GEARCASE (RIGHT)GEARCASE (RIGHT)
-
483233043 DEFLECTOR, OILDEFLECTOR, OIL
-
493233036 CHAIN, SILENT 34PCHAIN, SILENT 34P
-
503233704 SHAFT, INPUT HIGH/LOW/REVERSESHAFT, INPUT HIGH/LOW/REVERSE
-
513233019 BEARINGBEARING
-
523233537 RING, RETAININGRING, RETAINING
-
533233538 SPROCKET (14/22 TEETH)SPROCKET (14/22 TEETH)
-
543233263 COVER, CENTER DRIVE BEARINGCOVER, CENTER DRIVE BEARING
-
553233306 RING, RETAININGRING, RETAINING
-
563233540 SHAFT, PINION (13 TEETH)SHAFT, PINION (13 TEETH)
-
573233541 BUSHING, GARLOCKBUSHING, GARLOCK
-
583233542 WASHER, THRUSTWASHER, THRUST
-
593233546 CHAIN, ROLLERCHAIN, ROLLER
-
603233545 SPROCKET (16/66 TEETH)SPROCKET (16/66 TEETH)
-
613233544 SHAFT, OUTPUTSHAFT, OUTPUT
-
623233558 GEAR, HCR. (98 TEETH)GEAR, HCR. (98 TEETH)
-
633233252 SCREWSCREW
-
643233527 BUSHING, PIVOTBUSHING, PIVOT
