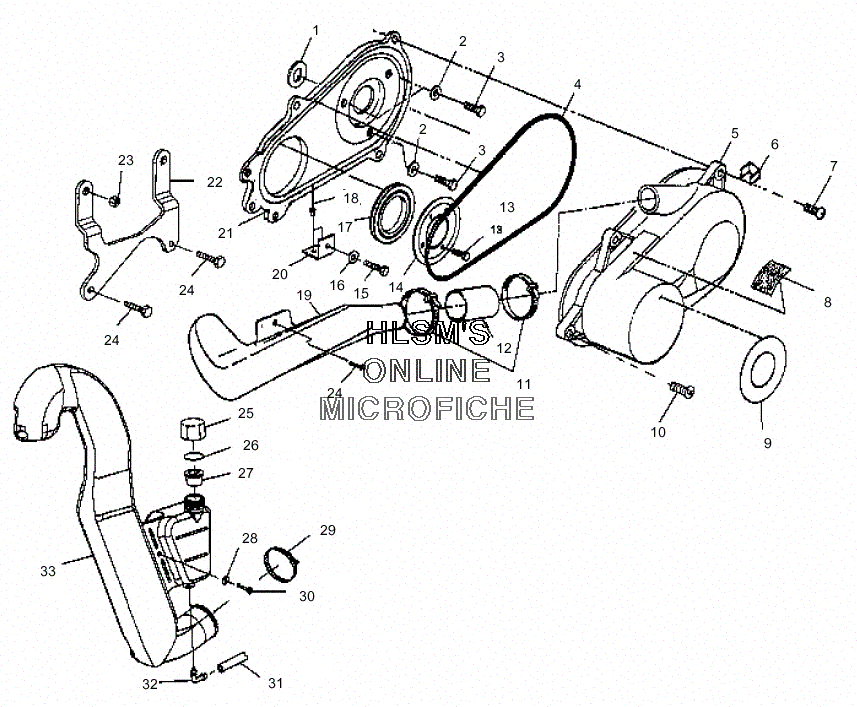

CLUTCH COVER для Polaris XPLORER 400 (A01CG38CA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5411553 SEAL, CLUTCH COVER INNER
    SEAL, CLUTCH COVER INNER
  • 2
    7555748 WASHER (BUILT BEFORE 4/03/00)
    WASHER (BUILT BEFORE 4/03/00)
  • 3
    7512278 BOLT (BUILT BEFORE 4/03/00)
    BOLT (BUILT BEFORE 4/03/00)
  • 3
    7517860 BOLT/RUBBER WASHER 1/4-20X1, ASSY. (1 BUILT AFTER 4/03/00)
    BOLT/RUBBER WASHER 1/4-20X1, ASSY. (1 BUILT AFTER 4/03/00)
  • 4
    5521301 SEAL, CLUTCH COVER
    SEAL, CLUTCH COVER
  • 5
    5433542 COVER, CLUTCH ST-801HS (FRONT)
    COVER, CLUTCH ST-801HS (FRONT)
  • 6
    7670051 CLIP, CLUTCH COVER
    CLIP, CLUTCH COVER
  • 7
    7512093 SCREW
    SCREW
  • 8
    7078689 DECAL
    DECAL
  • 9
    7074782 DECAL, AUTO.TRANSMISSION
    DECAL, AUTO.TRANSMISSION
  • 10
    7512094 SCREW
    SCREW
  • 11
    7080492 STRAP, WEATHER RESISTANT (BLACK)
    STRAP, WEATHER RESISTANT (BLACK)
  • 12
    5410421 BOOT, CLUTCH INTAKE
    BOOT, CLUTCH INTAKE
  • 14
    5222446-067 BRACKET, RETAINER SEAL
    BRACKET, RETAINER SEAL
  • 15
    7512098 SCREW
    SCREW
  • 16
    7555935 WASHER
    WASHER
  • 17
    5410575 SEAL, COVER CASE
    SEAL, COVER CASE
  • 18
    7661638 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 19
    5432615 DUCT, AIR OUT CLUTCH
    DUCT, AIR OUT CLUTCH
  • 20
    5242693-067 BRACKET, CLUTCH COVER (BLACK)
    BRACKET, CLUTCH COVER (BLACK)
  • 21
    2201159 COVER, CLUTCH INNER (INCL. 4,7,10,15,17)
    COVER, CLUTCH INNER (INCL. 4,7,10,15,17)
  • 22
    5242208-067 BRACKET, CLUTCH LOW (BLACK)
    BRACKET, CLUTCH LOW (BLACK)
  • 23
    7547067 NUTSERT, HEX
    NUTSERT, HEX
  • 24
    7512232 BOLT
    BOLT
  • 25
    5430743 CAP, OVERFLOW
    CAP, OVERFLOW
  • 26
    5810279 GASKET
    GASKET
  • 27
    5433774 CAP, PLUG FLEX TEMP (GREEN),
    CAP, PLUG FLEX TEMP (GREEN),
  • 28
    7555783 WASHER
    WASHER
  • 29
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 30
    7512018 SCREW
    SCREW
  • 31
    8450003-1525 FUEL LINE (1/4 ID 1525 CM.)
    FUEL LINE (1/4 ID 1525 CM.)
  • 32
    7052065 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
  • 33
    5433342 DUCT, CLUTCH INLET
    DUCT, CLUTCH INLET
