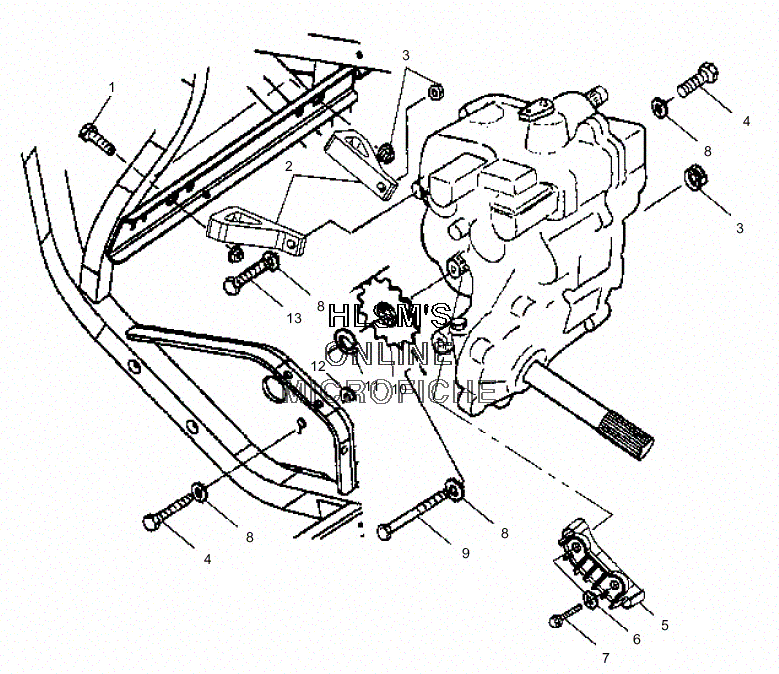

GEARCASE MOUNTING для Polaris XPLORER 400 (A01CG38CA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7517632 SCREW
    SCREW
  • 2
    5132046 MOUNT, TRANSMISSION (REAR)
    MOUNT, TRANSMISSION (REAR)
  • 3
    7547089 NUT
    NUT
  • 4
    7512492 SCREW
    SCREW
  • 5
    5433109 GUIDE, CHAIN TRANSMISSION
    GUIDE, CHAIN TRANSMISSION
  • 6
    7558301 WASHER
    WASHER
  • 7
    7512276 BOLT
    BOLT
  • 8
    7555806 WASHER
    WASHER
  • 9
    7517646 SCREW
    SCREW
  • 10
    3221041 SPROCKET, SPLINED (13 TEETH)
    SPROCKET, SPLINED (13 TEETH)
  • 11
    7710434 RING, SNAP
    RING, SNAP
  • 12
    5211065 SHIM, GEARCASE (.010) (OPT)
    SHIM, GEARCASE (.010) (OPT)
  • 12
    5210764 SPACER, (.020) (OPT)
    SPACER, (.020) (OPT)
  • 12
    5211517 SHIM, (.030) (.030) (OPT)
    SHIM, (.030) (.030) (OPT)
  • 13
    7517640 SCREW
    SCREW
