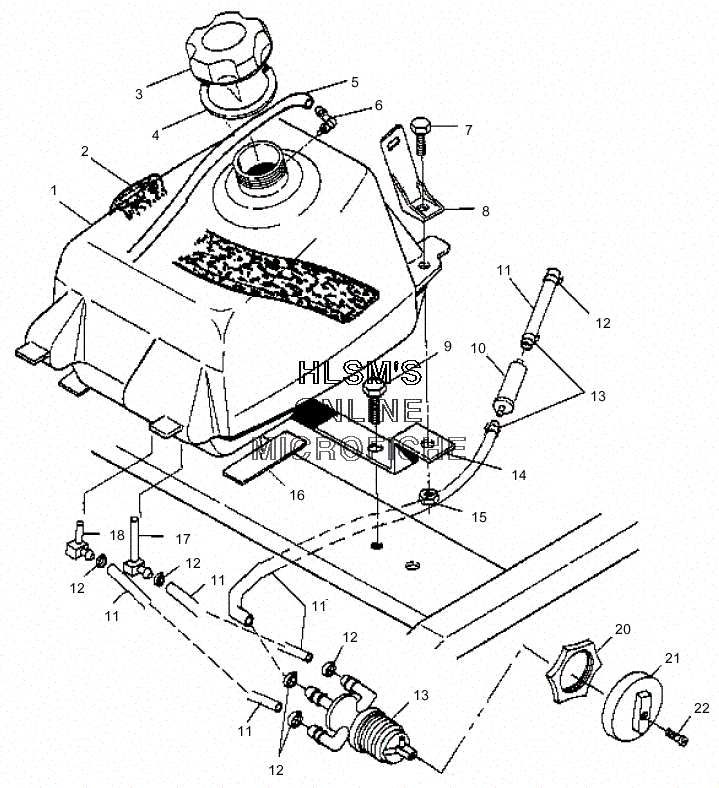

FUEL TANK для Polaris XPLORER 400 (A01CG38CA) - 2001 года выпуска
-
№АртикулНазвание
-
11240082 FUELTANK, 90 PERPENDICULAR (INCL. 6,17,18) (BUILT BEFORE 11/01/00)FUELTANK, 90 PERPENDICULAR (INCL. 6,17,18) (BUILT BEFORE 11/01/00)
-
12520240 FUELTANK, 90 STRAIGHT (INCL. 6,17,18) (BUILT AFTER 11/01/00)FUELTANK, 90 STRAIGHT (INCL. 6,17,18) (BUILT AFTER 11/01/00)
-
25811052 FOAM, SEALFOAM, SEAL
-
35433687 CAP, GAS TANKCAP, GAS TANK
-
45812123 GASKET, GAS CAPGASKET, GAS CAP
-
58360009-600 FUEL LINE (1/8 ID 600 CM.) (OPT)FUEL LINE (1/8 ID 600 CM.) (OPT)
-
65431053 VENT, TANKVENT, TANK
-
77512310 SCREWSCREW
-
85222154-067 BRACKET FUEL COVER (LEFT/REAR/BLACK)BRACKET FUEL COVER (LEFT/REAR/BLACK)
-
85222155-067 BRACKET FUEL COVER (RIGHT/REAR/BLACK)BRACKET FUEL COVER (RIGHT/REAR/BLACK)
-
97512208 SCREWSCREW
-
102530008 FILTER FUELFILTER FUEL
-
118450040-600 FUEL LINE (1/4 ID 600 CM.) (OPT)FUEL LINE (1/4 ID 600 CM.) (OPT)
-
127080003 CLAMP, HOSECLAMP, HOSE
-
137080534 CLAMP, SPRINGCLAMP, SPRING
-
145220916-067 BRACKET, TANK MOUNT (REAR/BLACK)BRACKET, TANK MOUNT (REAR/BLACK)
-
157542324 NUTNUT
-
165810317 PAD, FUEL TANK BRACKETPAD, FUEL TANK BRACKET
-
177052147 ELBOW, MAIN (BUILT BEFORE 11/01/00)ELBOW, MAIN (BUILT BEFORE 11/01/00)
-
177052150 FITTING, FUEL OUT MAIN 4'' Y (BUILT AFTER 11/01/00)FITTING, FUEL OUT MAIN 4'' Y (BUILT AFTER 11/01/00)
-
187052148 FITTING, FUEL OUT 90DEG RES (BUILT BEFORE 11/01/00)FITTING, FUEL OUT 90DEG RES (BUILT BEFORE 11/01/00)
-
187052149 FITTING, FUEL OUT RES (BUILT BEFORE 11/01/00)FITTING, FUEL OUT RES (BUILT BEFORE 11/01/00)
-
197052154 VALVE, 3-WAY HORIZ PORTSVALVE, 3-WAY HORIZ PORTS
-
205432733 NUT, FUEL VALVENUT, FUEL VALVE
-
215432559 KNOB, FUEL VALVEKNOB, FUEL VALVE
-
227517505 SCREWSCREW
