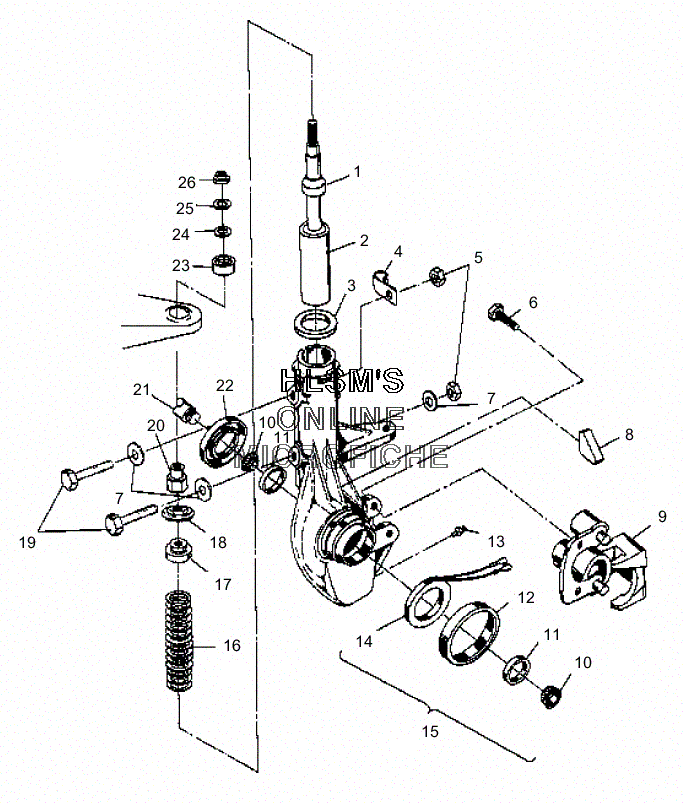

SUSPENSION - FRONT STRUT для Polaris XPLORER 400 (A00CG38CA) - 2000 года выпуска
-
№АртикулНазвание
-
15411608 BUMPER, MCU (17.80MM ID)BUMPER, MCU (17.80MM ID)
-
27041761 STRUT (FRONT)STRUT (FRONT)
-
35211115 WASHER, SPRING RETAINERWASHER, SPRING RETAINER
-
47080573 CLAMP, RUBBER-COATED (.562)CLAMP, RUBBER-COATED (.562)
-
57542303 NUT, FLEX-LOCNUT, FLEX-LOC
-
67517445 SCREWSCREW
-
77558402 WASHER, STEELWASHER, STEEL
-
85810439 RETAINER, WIRE STRUT CASTRETAINER, WIRE STRUT CAST
-
103554509 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
113554507 BEARING, TAPERED ROLL CUPBEARING, TAPERED ROLL CUP
-
125222193 SLEEVE, STRUT HUB SEALSLEEVE, STRUT HUB SEAL
-
137080306 FITTING, LUBE. W/BALL CHECKFITTING, LUBE. W/BALL CHECK
-
142410133 HUB/COIL, KITHUB/COIL, KIT
-
152201311 HUBSTRUT, SERVICE (BROWN/WHITE/LEFT) (INCL. 8,11-14,22)HUBSTRUT, SERVICE (BROWN/WHITE/LEFT) (INCL. 8,11-14,22)
-
152201312 HUBSTRUT, SERVICE (BROWN/WHITE/RIGHT) (INCL. 8,11-14,22)HUBSTRUT, SERVICE (BROWN/WHITE/RIGHT) (INCL. 8,11-14,22)
-
167041375-067 SPRING, COIL, SHOCK (FRONT/BLACK)SPRING, COIL, SHOCK (FRONT/BLACK)
-
175243364 RETAINER, SPRING STRUTRETAINER, SPRING STRUT
-
185432871 PIVOT, BALL BOTTOMPIVOT, BALL BOTTOM
-
197515339 BOLTBOLT
-
205132062 SPACER (1/2-20), STRUTSPACER (1/2-20), STRUT
-
223610028 SEAL, HUB STRUTSEAL, HUB STRUT
-
235432872 PIVOT, BALL, TOPPIVOT, BALL, TOP
-
245810291 SPACER, RUBBERSPACER, RUBBER
-
257555749 WASHERWASHER
-
267547104 NUTNUT
