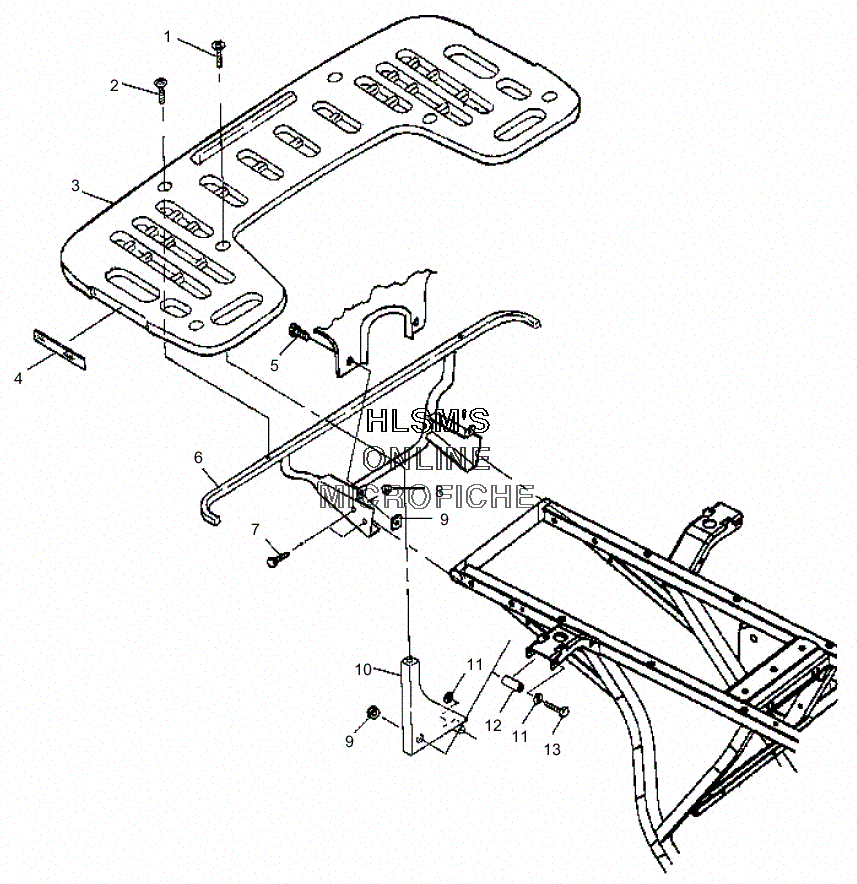

RACK AND BUMPER MOUNTING - REAR для Polaris XPLORER 400 (A00CG38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17517686 SCREWSCREW
-
27517685 SCREWSCREW
-
32670174 RACK ASSY. (REAR/BLACK) (INCL. REF. 4 AND WARNING DECAL)RACK ASSY. (REAR/BLACK) (INCL. REF. 4 AND WARNING DECAL)
-
42670070 REFLECTOR, REDREFLECTOR, RED
-
57517264 SCREWSCREW
-
61040490-067 SUPPORT, RACK (REAR/BLACK)SUPPORT, RACK (REAR/BLACK)
-
77512329 BOLTBOLT
-
87542343 NUT, NYLOCKNUT, NYLOCK
-
97670096 NUTNUT
-
101040524-067 MOUNT RACK (LEFT/FRONT/REAR/BLACK)MOUNT RACK (LEFT/FRONT/REAR/BLACK)
-
101040525-067 MOUNT RACK (RIGHT/FRONT/REAR/BLACK)MOUNT RACK (RIGHT/FRONT/REAR/BLACK)
-
117558402 WASHER, STEELWASHER, STEEL
-
125333332-067 SPACERSPACER
-
137515385 SCREWSCREW
