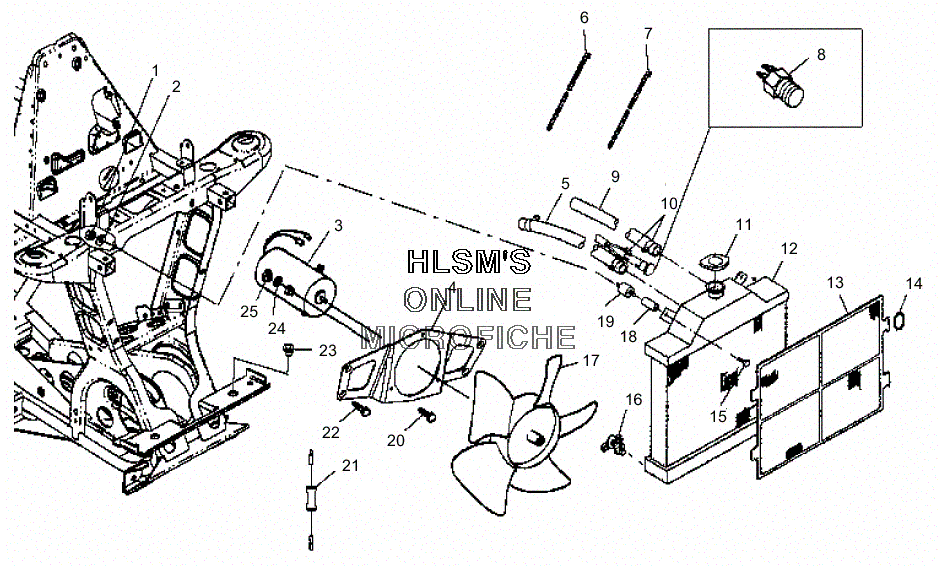

COOLING SYSTEM для Polaris XPLORER 400 (A00CG38CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7542122 NUT, LOCK
    NUT, LOCK
  • 2
    7558301 WASHER
    WASHER
  • 3
    4170013 MOTOR, FAN LIQ D-SHAFT CONN (INCL. HARDWARE)
    MOTOR, FAN LIQ D-SHAFT CONN (INCL. HARDWARE)
  • 4
    5241355-067 BRACKET, COOL FAN (BLACK)
    BRACKET, COOL FAN (BLACK)
  • 6
    7080492 STRAP, WEATHER RESIST. (BLACK)
    STRAP, WEATHER RESIST. (BLACK)
  • 7
    7080138 STRAP PANDUIT
    STRAP PANDUIT
  • 8
    4110225 SWITCH, THERMAL FAN L/C
    SWITCH, THERMAL FAN L/C
  • 10
    7080614 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    2511189 CAP PRESSURE
    CAP PRESSURE
  • 12
    1240015 RADIATOR, ''U'' FLOW
    RADIATOR, ''U'' FLOW
  • 13
    5431760 COVER, RADIATOR W/MESH
    COVER, RADIATOR W/MESH
  • 14
    5410607 O-RING
    O-RING
  • 15
    7515133 SCREW
    SCREW
  • 16
    7052181 VALVE, DRAIN COCK
    VALVE, DRAIN COCK
  • 17
    5242550 BLADE, FAN NYLON (8'')
    BLADE, FAN NYLON (8'')
  • 18
    5020572 SPACER, MOUNT
    SPACER, MOUNT
  • 19
    3110032 MOUNT, RUBBER
    MOUNT, RUBBER
  • 20
    7517475 SCREW
    SCREW
  • 21
    4010369 RESISTOR
    RESISTOR
  • 22
    7512232 BOLT
    BOLT
  • 23
    5410584 BUSHING, MOUNT (LOW RED)
    BUSHING, MOUNT (LOW RED)
  • 24
    7558201 WASHER, FLAT
    WASHER, FLAT
  • 25
    7547004 NUT
    NUT
