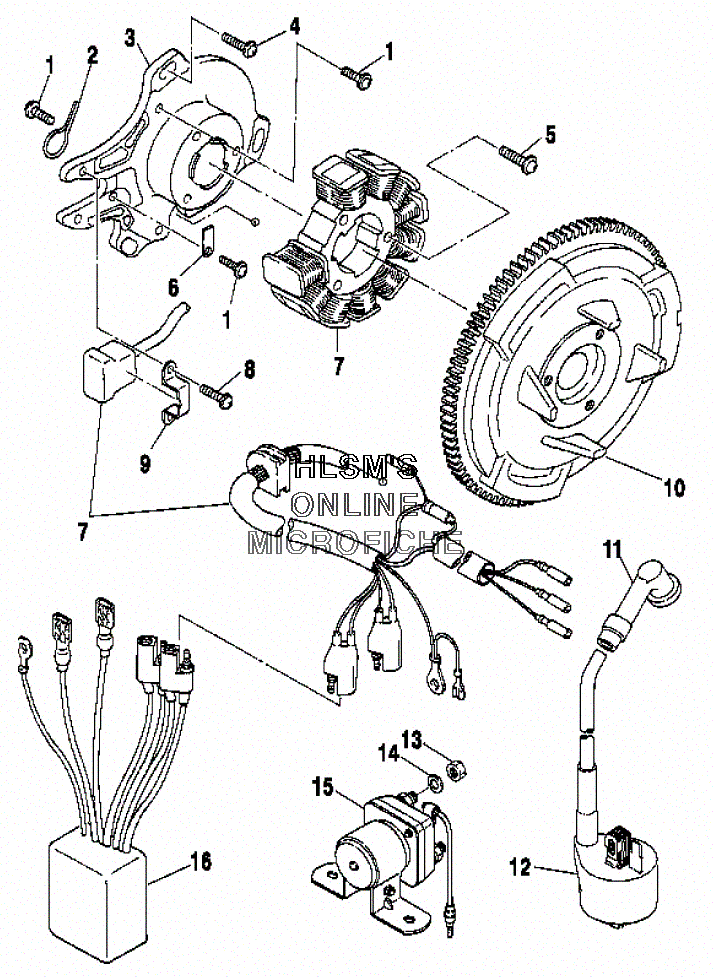

MAGNETO для Polaris XPLORER 400 (A00CG38CA) - 2000 года выпуска
-
№АртикулНазвание
-
13081260 SCREW AND WASHERSCREW AND WASHER
-
23081146 CLAMPCLAMP
-
33084761 PLATE ASSY. (INCL. 1-3,5-9)PLATE ASSY. (INCL. 1-3,5-9)
-
33084762 PLATE, COILPLATE, COIL
-
43084766 SCREW, FLANGESCREW, FLANGE
-
53081342 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
63084765 CLAMPCLAMP
-
73084763 STATORSTATOR
-
83084764 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
93084099 BANDBAND
-
103084760 FLYWHEEL, W/RING GEARFLYWHEEL, W/RING GEAR
-
114020129 CAP SPARK PLUGCAP SPARK PLUG
-
123083923 COIL, IGNITIONCOIL, IGNITION
-
133083073 NUTNUT
-
143080077 WASHER SPRINGWASHER SPRING
-
153085521 SOLENOIDSOLENOID
-
163085623 CDI, COMPLETECDI, COMPLETE
