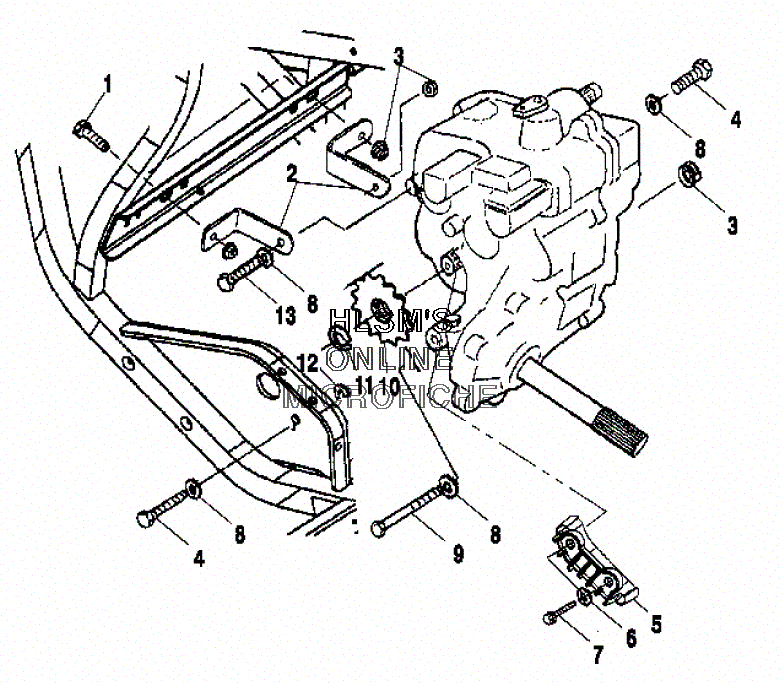

GEARCASE MOUNTING для Polaris XPLORER 400 (A00CG38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17517632 SCREWSCREW
-
25242456-067 BRACKET, TRANSMISSION MOUNT (BLACK)BRACKET, TRANSMISSION MOUNT (BLACK)
-
37542423 NUTNUT
-
47512492 SCREWSCREW
-
55433109 GUIDE-CHAIN, TRANSMISSIONGUIDE-CHAIN, TRANSMISSION
-
67558301 WASHERWASHER
-
77512276 BOLTBOLT
-
87555806 WASHERWASHER
-
97517646 SCREWSCREW
-
103221041 SPROCKET, SPLINED (13 TEETH)SPROCKET, SPLINED (13 TEETH)
-
117710434 RING, SNAPRING, SNAP
-
125210764 SHIM (.020) (OPT)SHIM (.020) (OPT)
-
125211065 SHIM (.010) (OPT)SHIM (.010) (OPT)
-
125211517 SHIM (.030) (OPT)SHIM (.030) (OPT)
-
137517640 SCREWSCREW
