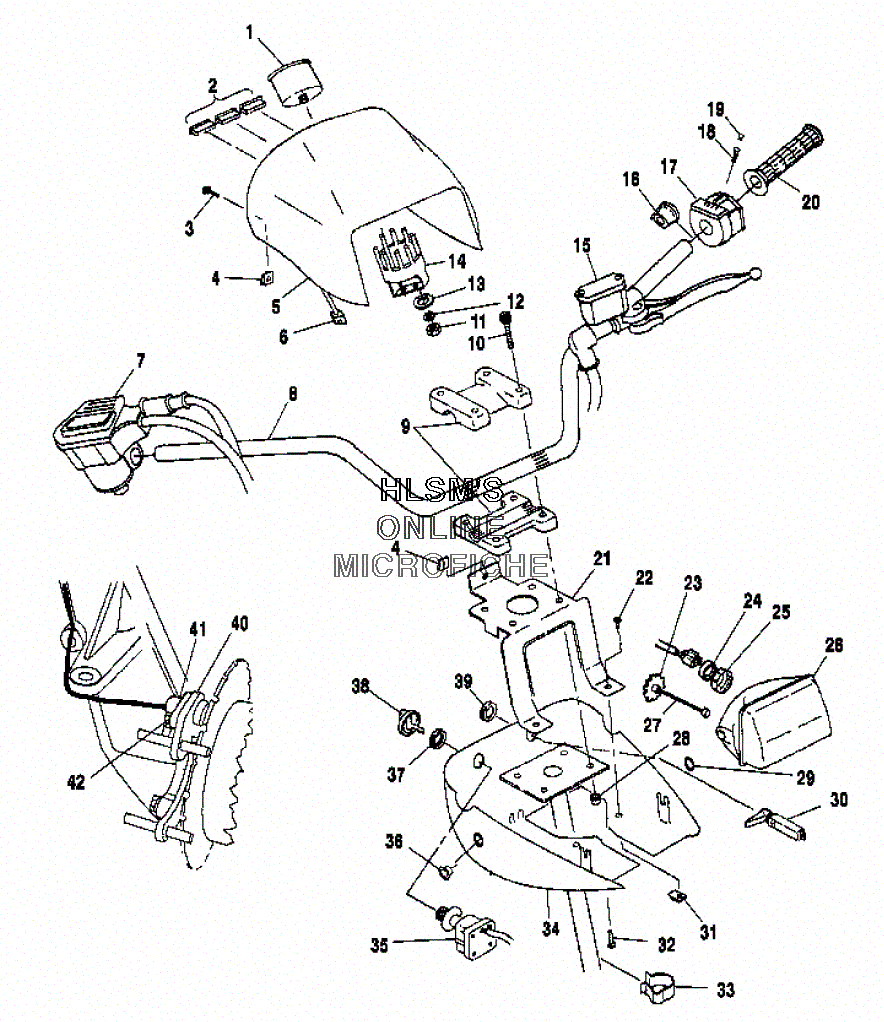

HANDLEBAR W/ HEADLIGHT для Polaris XPLORER 400 (A00CG38CA) - 2000 года выпуска
-
№АртикулНазвание
-
13280290 SPEEDOMETER, 6 PULSE (INCL. 14)SPEEDOMETER, 6 PULSE (INCL. 14)
-
24010140 INDICATOR, ''LOW OIL'' (SYMBOL)INDICATOR, ''LOW OIL'' (SYMBOL)
-
24040053 INDICATOR, ''HOT TEMPERATURE''INDICATOR, ''HOT TEMPERATURE''
-
24040054 INDICATOR, ''NEUT./REV.''INDICATOR, ''NEUT./REV.''
-
37511881 SCREWSCREW
-
47670086 NUTNUT
-
55433042-195 POD, HEADLIGHT UPPER (EBANY GREEN)POD, HEADLIGHT UPPER (EBANY GREEN)
-
62460720 HARNESS, HEADLIGHT PODHARNESS, HEADLIGHT POD
-
85242987-067 TUBE, HANDLEBAR GEN 4 POD (BLACK)TUBE, HANDLEBAR GEN 4 POD (BLACK)
-
92200774 HANDLEBAR BLOCK KIT (INCL. BLOCKS, 9,10,28)HANDLEBAR BLOCK KIT (INCL. BLOCKS, 9,10,28)
-
95630616-067 BLOCK, HANDLEBAR RETAINER (BLACK)BLOCK, HANDLEBAR RETAINER (BLACK)
-
107515189 SCREWSCREW
-
117541933 NUT, BRASSNUT, BRASS
-
127555868 WASHER, LOCK (S.S.)WASHER, LOCK (S.S.)
-
137558212 WASHERWASHER
-
143280291 CLAMP, BACK ELEC. SPEEDO (3.38'')CLAMP, BACK ELEC. SPEEDO (3.38'')
-
165432926 SPACER, SWITCH (LEFT)SPACER, SWITCH (LEFT)
-
174010262 SWITCH, HANDLEBAR H/L/O REV/ORSWITCH, HANDLEBAR H/L/O REV/OR
-
187517625 SCREW, SETSCREW, SET
-
195432952 PLUG, HOLEPLUG, HOLE
-
205431030 GRIP, HANDLEBAR (BLACK)GRIP, HANDLEBAR (BLACK)
-
215240586-067 BRACKET, POD MOUNTING (BLACK)BRACKET, POD MOUNTING (BLACK)
-
227517317 SCREWSCREW
-
234032079 KNOB, ADJUSTINGKNOB, ADJUSTING
-
245411120 BOOT, HEADLIGHTBOOT, HEADLIGHT
-
254032077 COLLAR, LOCKCOLLAR, LOCK
-
264032075 LENS AND REFLECTOR ASSY.LENS AND REFLECTOR ASSY.
-
262870448 BULB, QUARTZ. H/L INDYBULB, QUARTZ. H/L INDY
-
274032078 ROD, ADJUSTINGROD, ADJUSTING
-
287542122 NUT, LOCKNUT, LOCK
-
295410163 O-RINGO-RING
-
307080371 CABLE, CHOKECABLE, CHOKE
-
302200188 CHOKE CONTROL KITCHOKE CONTROL KIT
-
317670089 NUT, U-TYPENUT, U-TYPE
-
327522021 SCREWSCREW
-
337080631 CLIP, CABLE RETAINCLIP, CABLE RETAIN
-
345431811-070 POD, H/L LOW (BLACK)POD, H/L LOW (BLACK)
-
354110264 SWITCH, IGNITION (INCL. KEY)SWITCH, IGNITION (INCL. KEY)
-
354110141 KEYBLANK, 31 SER. (#3100-3199)KEYBLANK, 31 SER. (#3100-3199)
-
354110148 KEYBLANK, 32 SER. (#3200-3299)KEYBLANK, 32 SER. (#3200-3299)
-
354010278 KEY BLANK (6700 AND 6800 SERIES) SEE NOTE:KEY BLANK (6700 AND 6800 SERIES) SEE NOTE:
-
354010321 KEY BLANK (2700 AND 2800 SERIES) SEE NOTE:KEY BLANK (2700 AND 2800 SERIES) SEE NOTE:
-
367080936 CAPLUG (BLACK)CAPLUG (BLACK)
-
375433733 NUT, IGNITION SWITCH HOBBSNUT, IGNITION SWITCH HOBBS
-
385433534 KEY COVER, KEYSWITCHKEY COVER, KEYSWITCH
-
397080229 NUTNUT
-
404010298 SENSOR, HALLEFFECTSENSOR, HALLEFFECT
-
415132382 CAP, HALL SENSORCAP, HALL SENSOR
-
427517658 SCREWSCREW
