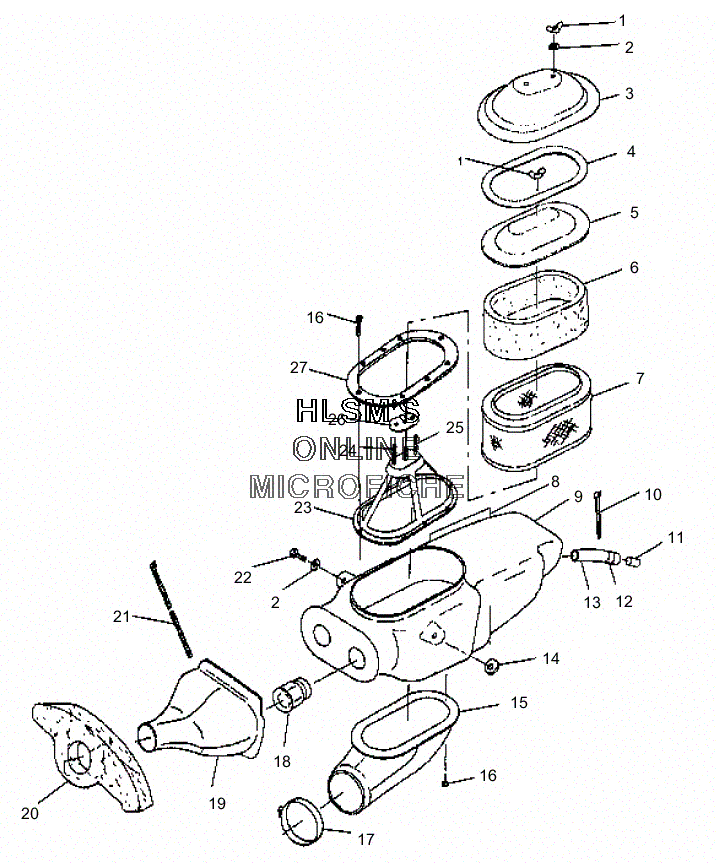

AIR BOX ASSY. для Polaris XPLORER 400 (A00CG38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17542127 NUT, WINGNUT, WING
-
27558301 WASHERWASHER
-
35240424 COVERCOVER
-
45810948 GASKET, COVERGASKET, COVER
-
55240336 COVER, AIR BOXCOVER, AIR BOX
-
65811099 FOAM, PRE CLEANER, SLEEVEFOAM, PRE CLEANER, SLEEVE
-
71253118 AIR FILTERAIR FILTER
-
85810966 FOILFOIL
-
95432883 BOX, AIR SILENCERBOX, AIR SILENCER
-
107080483 STRAP, PANDUIT, 4 IN.STRAP, PANDUIT, 4 IN.
-
117080487 CAP, PLUGCAP, PLUG
-
127080476 CLAMP, HOSE, S.S.CLAMP, HOSE, S.S.
-
138450051-600 HOSE (OPT)HOSE (OPT)
-
147555932 WASHER, NYLONWASHER, NYLON
-
155411413 BOOT, CARBURETOR, 400 HYBRIDBOOT, CARBURETOR, 400 HYBRID
-
167511881 SCREWSCREW
-
177080643 CLAMP, NOTCHEDCLAMP, NOTCHED
-
185431698 VENTURA, INTAKEVENTURA, INTAKE
-
195410934 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
205810988 FOAM, SEALFOAM, SEAL
-
217080598 STRAP, CABLESTRAP, CABLE
-
227515180 SCREWSCREW
-
235432607 STAND, FILTERSTAND, FILTER
-
247515150 STUDSTUD
-
257515151 STUDSTUD
-
265811012 SEAL, FOAMSEAL, FOAM
-
275211804 PLATEPLATE
