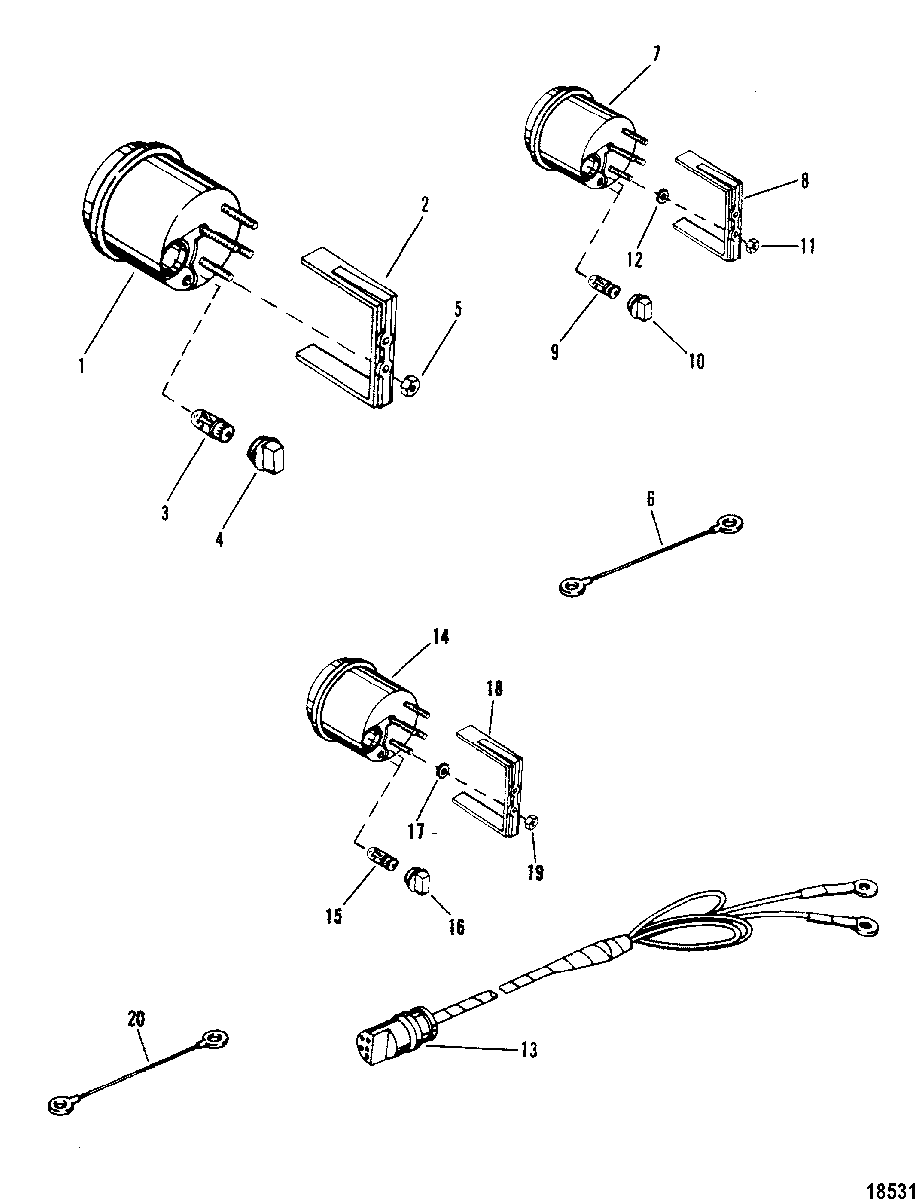

TACHOMETER, TRIM GAUGE, TEMPERATURE GAUGE для Mercury - XR-4 0B242885 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    79-895283Q43 TACHOMETER
    TACHOMETER
  • 2
    79101T BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 3
    88-72729 LIGHT BULB, Wedge Base (14V - .19W)
    LIGHT BULB, Wedge Base (14V - .19W)
  • 4
    88-79888 SOCKET, Light Bulb
    SOCKET, Light Bulb
  • 5
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 6
    84-86322A7 CABLE ASSEMBLY, (1.50 Feet) Black, TRIM GAUGE
    CABLE ASSEMBLY, (1.50 Feet) Black, TRIM GAUGE
  • 6
    84-86323A5 CABLE ASSEMBLY, (1.50 Feet) Purple, TRIM GAUGE
    CABLE ASSEMBLY, (1.50 Feet) Purple, TRIM GAUGE
  • 7
    79-895292Q41 TRIM GAUGE
    TRIM GAUGE
  • 8
    79480 BRACKET, MOUNTING - TRIM GAUGE
    BRACKET, MOUNTING - TRIM GAUGE
  • 9
    88-72729 LIGHT BULB, Wedge Base (14V - .19W), TRIM GAUGE
    LIGHT BULB, Wedge Base (14V - .19W), TRIM GAUGE
  • 10
    88-79888 SOCKET, Light Bulb, TRIM GAUGE
    SOCKET, Light Bulb, TRIM GAUGE
  • 11
    11-26419 NUT, (#8-32) Brass, TRIM GAUGE TERMINAL
    NUT, (#8-32) Brass, TRIM GAUGE TERMINAL
  • 12
    12-26427 WASHER, TRIM GAUGE TERMINAL
    WASHER, TRIM GAUGE TERMINAL
  • 13
    84-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)
    HARNESS ASSEMBLY, Tachometer (5.00 Feet)
  • 14
    79-895287Q41 TEMPERATURE GAUGE
    TEMPERATURE GAUGE
  • 15
    88-72729 LIGHT BULB, Wedge Base (14V - .19W)
    LIGHT BULB, Wedge Base (14V - .19W)
  • 16
    88-79888 SOCKET, Light Bulb
    SOCKET, Light Bulb
  • 17
    12-26427 WASHER
    WASHER
  • 18
    79480 BRACKET
    BRACKET
  • 19
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 20
    84-86323A2 CABLE ASSEMBLY, (2.00 Feet) Purple
    CABLE ASSEMBLY, (2.00 Feet) Purple
  • 20
    84-61600A16 CABLE ASSEMBLY, (17.00 Inches) Black
    CABLE ASSEMBLY, (17.00 Inches) Black
  • 20
    84-88824A4 CABLE ASSEMBLY, (45.00 Inches) Tan
    CABLE ASSEMBLY, (45.00 Inches) Tan
