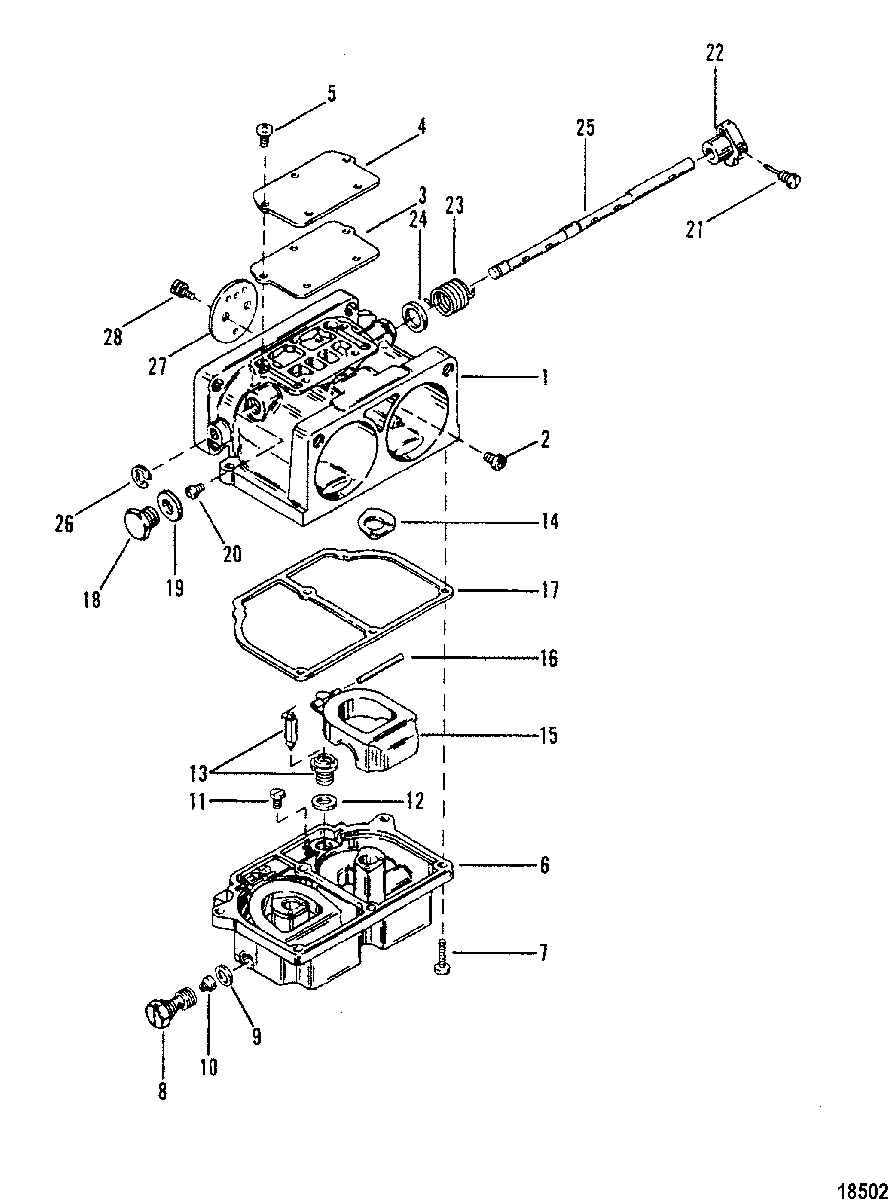

CARBURETOR ASSEMBLY для Mercury - XR-4 0B242885 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    3307-9671A1 CARBURETOR (TOP)
    CARBURETOR (TOP)
  • 1
    3307-9671A2 CARBURETOR (CENTER)
    CARBURETOR (CENTER)
  • 1
    3307-9671A3 CARBURETOR (BOTTOM)
    CARBURETOR (BOTTOM)
  • 2
    1399-3796 JET, (.076), BOWL VENT
    JET, (.076), BOWL VENT
  • 3
    NSS NOT SOLD SEPARATE, Gasket-Cover Plate
    NOT SOLD SEPARATE, Gasket-Cover Plate
  • 4
    1395-6032 PLATE, COVER
    PLATE, COVER
  • 5
    NSS NOT SOLD SEPARATE, Screw-Cover Plate
    NOT SOLD SEPARATE, Screw-Cover Plate
  • 6
    1395-7823 BOWL, Fuel (TOP)
    BOWL, Fuel (TOP)
  • 6
    1395-7822 BOWL, Fuel (CENTER/BOTTOM)
    BOWL, Fuel (CENTER/BOTTOM)
  • 7
    NSS NOT SOLD SEPARATE, Screw-Fuel Bowl
    NOT SOLD SEPARATE, Screw-Fuel Bowl
  • 8
    1395-6025 PLUG, MAIN JET
    PLUG, MAIN JET
  • 9
    NSS NOT SOLD SEPARATE, Gasket-Main Jet Retainer
    NOT SOLD SEPARATE, Gasket-Main Jet Retainer
  • 10
    1399-3794 JET, (.074), MAIN FUEL
    JET, (.074), MAIN FUEL
  • 11
    NSS NOT SOLD SEPARATE, Screw-Float Pin
    NOT SOLD SEPARATE, Screw-Float Pin
  • 12
    NSS NOT SOLD SEPARATE, Gasket-Inlet Needle and Seat
    NOT SOLD SEPARATE, Gasket-Inlet Needle and Seat
  • 13
    1395-7824 NEEDLE/SEAT ASSEMBLY, Inlet
    NEEDLE/SEAT ASSEMBLY, Inlet
  • 14
    NSS NOT SOLD SEPARATE, Gasket-Nozzle Boss
    NOT SOLD SEPARATE, Gasket-Nozzle Boss
  • 15
    1395-9267 FLOAT
    FLOAT
  • 16
    NSS NOT SOLD SEPARATE, Pin-Float Lever
    NOT SOLD SEPARATE, Pin-Float Lever
  • 17
    NSS NOT SOLD SEPARATE, Gasket-Fuel Bowl
    NOT SOLD SEPARATE, Gasket-Fuel Bowl
  • 18
    1395-4541 SCREW, IDLE AIR BLEED JET
    SCREW, IDLE AIR BLEED JET
  • 19
    NSS NOT SOLD SEPARATE, Gasket-Bleed Jet Plug
    NOT SOLD SEPARATE, Gasket-Bleed Jet Plug
  • 20
    1395-6359 JET, (.052), IDLE AIR BLEED
    JET, (.052), IDLE AIR BLEED
  • 21
    1395-6027 SCREW, THROTTLE LEVER
    SCREW, THROTTLE LEVER
  • 22
    67752 LEVER, THROTTLE
    LEVER, THROTTLE
  • 23
    NSS NOT SOLD SEPARATE, Spring-Throttle Return
    NOT SOLD SEPARATE, Spring-Throttle Return
  • 24
    1395-6031 SPACER, THROTTLE LEVER
    SPACER, THROTTLE LEVER
  • 25
    1395-6022 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 26
    NSS NOT SOLD SEPARATE, Ring-Retainer-Throttle Shaft
    NOT SOLD SEPARATE, Ring-Retainer-Throttle Shaft
  • 27
    1395-6023 VALVE, Throttle
    VALVE, Throttle
  • 28
    NSS NOT SOLD SEPARATE, Screw-Throttle Valve
    NOT SOLD SEPARATE, Screw-Throttle Valve
  • -
    1395-6452 GASKET KIT
    GASKET KIT
  • --
    1395-8506 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
