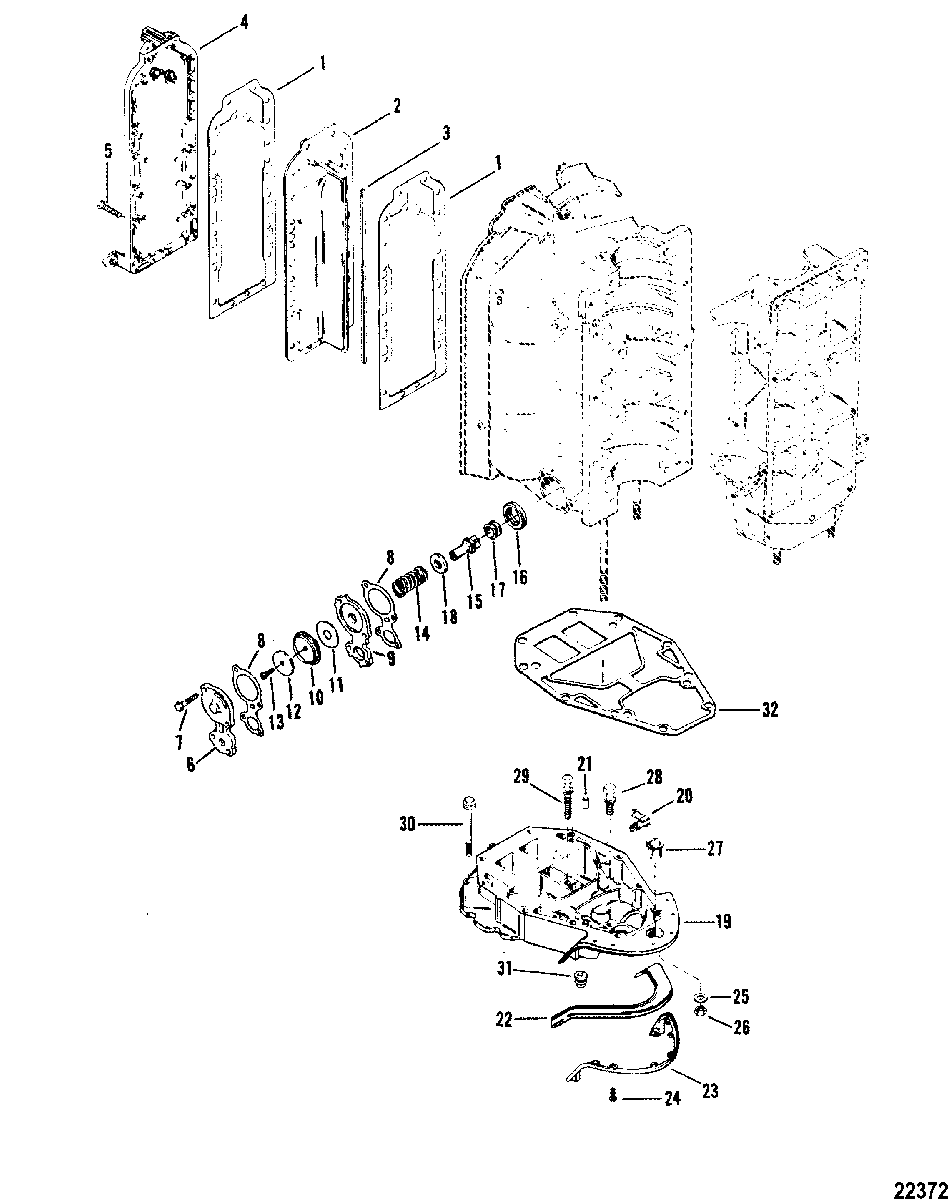

EXHAUST MANIFOLD AND EXHAUST PLATE для Mercury - XR-4 0B242885 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    27-904841 GASKET, DIVIDER PLATE
    GASKET, DIVIDER PLATE
  • 2
    99169A1 DIVIDER PLATE
    DIVIDER PLATE
  • 3
    26-814754 SEAL, DIVIDER PLATE
    SEAL, DIVIDER PLATE
  • 4
    95067 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 5
    10-74824 SCREW, (.312-18 x 1.250), COVER AND PLATE TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.250), COVER AND PLATE TO CYLINDER BLOCK
  • 6
    14462A1 COVER, RELIEF VALVE
    COVER, RELIEF VALVE
  • 7
    10-74824 SCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCK
  • 8
    27-78690002 GASKET, RELIEF VALVE PLATE
    GASKET, RELIEF VALVE PLATE
  • 9
    16497A1 PLATE, RELIEF VALVE
    PLATE, RELIEF VALVE
  • 10
    144791 DIAPHRAGM
    DIAPHRAGM
  • 11
    16496 DEFLECTOR, Water
    DEFLECTOR, Water
  • 12
    12-76451 WASHER, DIAPHRAGM SCREW
    WASHER, DIAPHRAGM SCREW
  • 13
    10-69570 SCREW, (#10-16 x .750), DIAPHRAGM TO PLATE
    SCREW, (#10-16 x .750), DIAPHRAGM TO PLATE
  • 14
    24-64878 SPRING, (Black), COMPRESSION POPPET VALVE
    SPRING, (Black), COMPRESSION POPPET VALVE
  • 15
    14480 POPPET, VALVE
    POPPET, VALVE
  • 16
    65848 CARRIER, POPPET VALVE
    CARRIER, POPPET VALVE
  • 17
    25-64872 GROMMET, POPPET VALVE
    GROMMET, POPPET VALVE
  • 18
    12-85303 WASHER, POPPET SPRING
    WASHER, POPPET SPRING
  • 19
    41944A5 PLATE ASSEMBLY, EXHAUST
    PLATE ASSEMBLY, EXHAUST
  • 20
    22-996642 ELBOW, EXHAUST PLATE
    ELBOW, EXHAUST PLATE
  • 21
    17-43044 PIN, Dowel, LOCATING - EXHAUST PLATE
    PIN, Dowel, LOCATING - EXHAUST PLATE
  • 22
    707482 SEAL, EXHAUST PLATE
    SEAL, EXHAUST PLATE
  • 23
    680101 BRACKET, SEAL RETAINING
    BRACKET, SEAL RETAINING
  • 24
    10-48408 SCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATE
    SCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATE
  • 25
    12-20553 WASHER, POWERHEAD STUD
    WASHER, POWERHEAD STUD
  • 26
    11-69254 NUT, POWERHEAD STUD
    NUT, POWERHEAD STUD
  • 27
    23-27132 BUSHING, EXHAUST PLATE
    BUSHING, EXHAUST PLATE
  • 28
    10-66727 SCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHING
    SCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHING
  • 29
    10-68783 SCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHING
    SCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHING
  • 30
    10-898833 SCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHING
    SCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHING
  • 31
    25-12602002 GROMMET, EXHAUST PLATE
    GROMMET, EXHAUST PLATE
  • 32
    27-991764 GASKET, EXHAUT PLATE
    GASKET, EXHAUT PLATE
  • -
    27-11338A88 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
