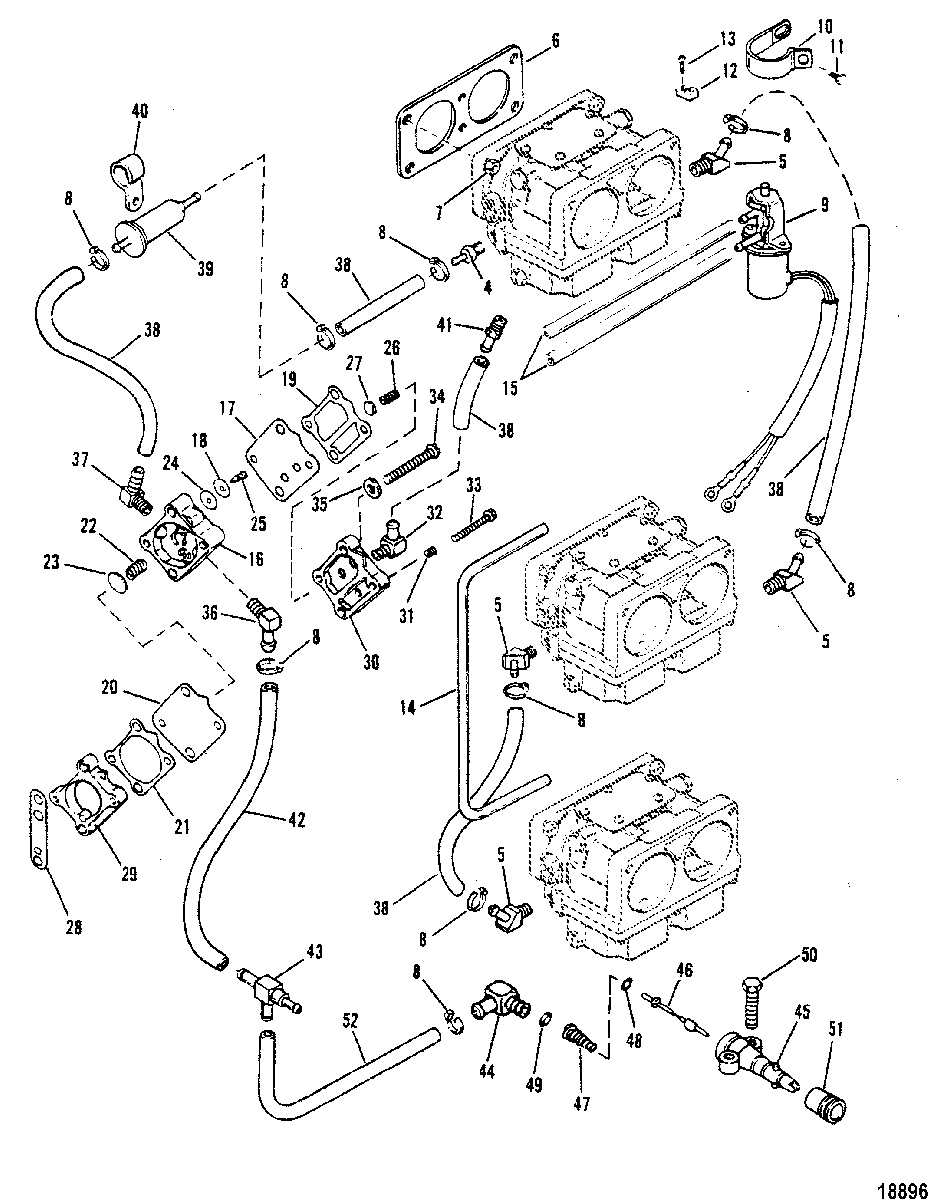

FUEL PUMP AND CARBURETOR для Mercury - XR-4 0B242885 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    3307-9671A1 CARBURETOR (TOP)
    CARBURETOR (TOP)
  • 2
    3307-9671A2 CARBURETOR (CENTER)
    CARBURETOR (CENTER)
  • 3
    3307-9671A3 CARBURETOR (BOTTOM)
    CARBURETOR (BOTTOM)
  • 4
    1395-6232 FITTING, FUEL INLET (UPPER)
    FITTING, FUEL INLET (UPPER)
  • 5
    22-70007 FITTING, 45 Degree, FUEL INLET
    FITTING, 45 Degree, FUEL INLET
  • 6
    27-904301 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 7
    11-20184 NUT, (1/4-28X7/32), CARBURETOR MOUNTING
    NUT, (1/4-28X7/32), CARBURETOR MOUNTING
  • 8
    54-816311T CLAMP, FUEL HOSE TO CARBURETOR
    CLAMP, FUEL HOSE TO CARBURETOR
  • 9
    42859A2 VALVE ASSEMBLY, Enrichner
    VALVE ASSEMBLY, Enrichner
  • 10
    54-633001 CLAMP, ENRICHER VALVE
    CLAMP, ENRICHER VALVE
  • 11
    10-73286 SCREW, (.250-20 x .500) Stainless Steel, VALVE CLAMP
    SCREW, (.250-20 x .500) Stainless Steel, VALVE CLAMP
  • 12
    86-45915 TERMINAL BLOCK, REED BLOCK HOUSING
    TERMINAL BLOCK, REED BLOCK HOUSING
  • 13
    10-35519 SCREW, (#10-16 x .500), TERMINAL BLOCK ATTACHING
    SCREW, (#10-16 x .500), TERMINAL BLOCK ATTACHING
  • 14
    32-892024122 TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE (Cut to 7.75 Inches)
    TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE (Cut to 7.75 Inches)
  • 15
    32-9912688 TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR (Cut to 4.25 Inches)
    TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR (Cut to 4.25 Inches)
  • 16
    15930A15 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 17
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 18
    NSS NOT SOLD SEPARATE, Check Valve-Rubber
    NOT SOLD SEPARATE, Check Valve-Rubber
  • 19
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 20
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 21
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 22
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 23
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 24
    NSS NOT SOLD SEPARATE, Check Vavle
    NOT SOLD SEPARATE, Check Vavle
  • 25
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 26
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 27
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 28
    27-987691 GASKET, BASE
    GASKET, BASE
  • 29
    144303 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 30
    987752 PLATE, FUEL PUMP
    PLATE, FUEL PUMP
  • 31
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 32
    22-19688 FITTING
    FITTING
  • 33
    10-16452 SCREW, (#12-24 x 2.00), FUEL PUMP
    SCREW, (#12-24 x 2.00), FUEL PUMP
  • 34
    10-4000310 SCREW, (M5 x 40), FUEL PUMP TO CRANKCASE
    SCREW, (M5 x 40), FUEL PUMP TO CRANKCASE
  • 35
    12-4002314 WASHER, FUEL PUMP SCREW
    WASHER, FUEL PUMP SCREW
  • 36
    22-14868 FITTING, FUEL PUMP (ELBOW)
    FITTING, FUEL PUMP (ELBOW)
  • 37
    22-19688 FITTING, FUEL PUMP (ELBOW)
    FITTING, FUEL PUMP (ELBOW)
  • 38
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 39
    35-816296Q03 FILTER, Fuel
    FILTER, Fuel
  • 40
    54-15279 CLAMP, FUEL FILTER
    CLAMP, FUEL FILTER
  • 41
    22-64705 FITTING, PULSE HOSE
    FITTING, PULSE HOSE
  • 42
    32-8M0108349 TUBING
    TUBING
  • 43
    22-424253 TEE
    TEE
  • 44
    22-36221 ELBOW, FUEL LINE TO ADAPTOR
    ELBOW, FUEL LINE TO ADAPTOR
  • 45
    30186 ADAPTOR, CHECK UNIT
    ADAPTOR, CHECK UNIT
  • 46
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 47
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 48
    25-16524 O-RING, ADAPTOR STEM
    O-RING, ADAPTOR STEM
  • 49
    30188 WASHER, ADAPTOR
    WASHER, ADAPTOR
  • 50
    10-69067 SCREW, (.250-20 x 1.375), ADAPTOR TO BOTTOM COWL
    SCREW, (.250-20 x 1.375), ADAPTOR TO BOTTOM COWL
  • 51
    92037 SEAL, FUEL CONNECTOR
    SEAL, FUEL CONNECTOR
  • 52
    32-8M0108349 TUBING
    TUBING
  • -
    27-11338A88 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
