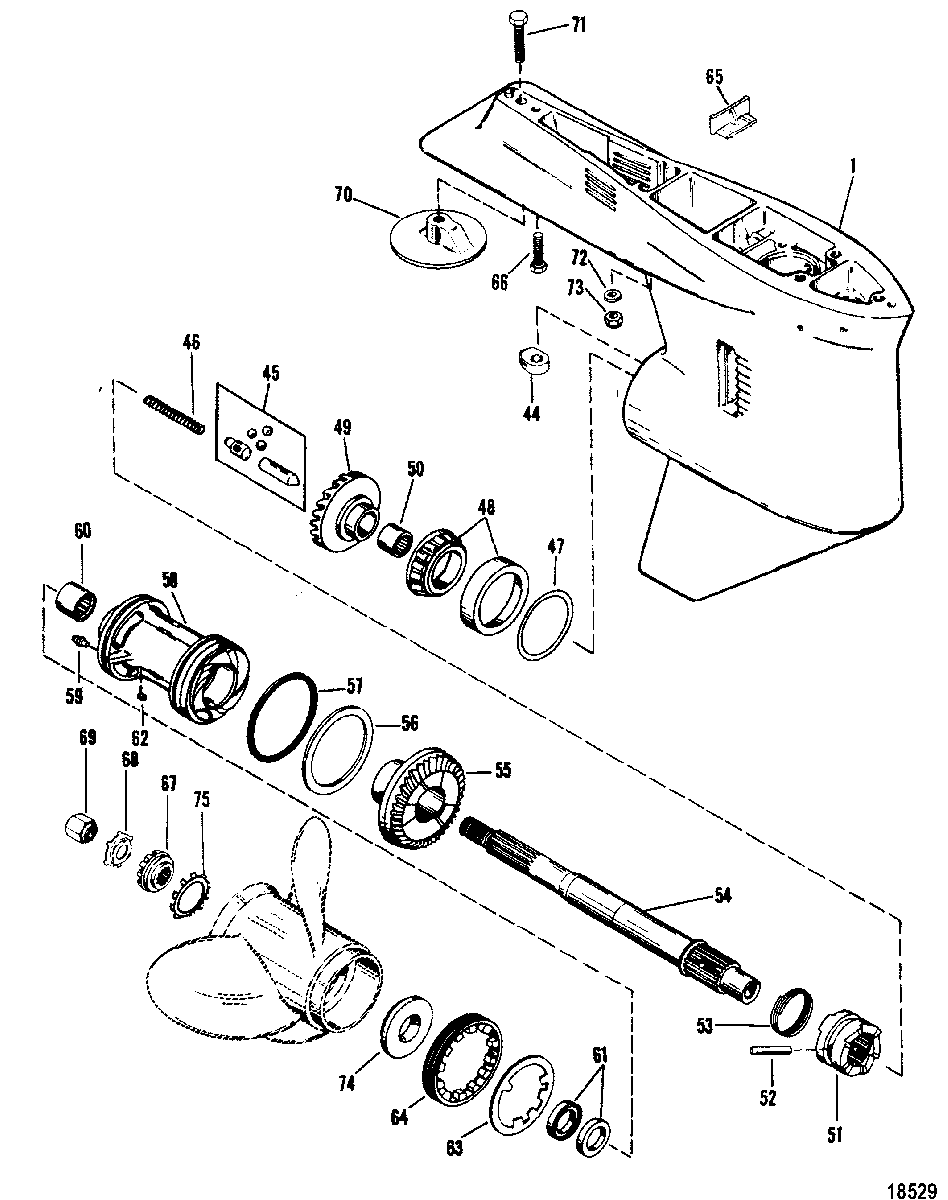

GEAR HOUSING(PROPELLER SHAFT)(CASTING #1655-9572C) для Mercury - XR-4 0B242885 THRU 0C100860

  • №
    Артикул
    Название
  • -
    1674-814247T3 GEAR HOUSING ASSEMBLY (LONG) (BLACK)
    GEAR HOUSING ASSEMBLY (LONG) (BLACK)
  • -
    1674-814247T3 GEAR HOUSING ASSEMBLY (LONG) (GRAY)
    GEAR HOUSING ASSEMBLY (LONG) (GRAY)
  • 1
    1674-814247T8 GEAR HOUSING ASSEMBLY (BLACK)
    GEAR HOUSING ASSEMBLY (BLACK)
  • 1
    1674-814247T9 GEAR HOUSING ASSEMBLY (GRAY)
    GEAR HOUSING ASSEMBLY (GRAY)
  • 44
    760394 CAM, Shift Control
    CAM, Shift Control
  • 45
    850315A1 FOLLOWER KIT, Cam
    FOLLOWER KIT, Cam
  • 46
    24-30622 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 47
    15-8M0063266 SHIM SET
    SHIM SET
  • 48
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 49
    43-16279A2 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 50
    31-30895T BEARING, Needle, FORWARD GEAR
    BEARING, Needle, FORWARD GEAR
  • 51
    52-822539T RATCHET
    RATCHET
  • 52
    17-8M0100263 PIN, Cross, CLUTCH
    PIN, Cross, CLUTCH
  • 53
    24-30893 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 54
    44-12238T PROPELLER SHAFT
    PROPELLER SHAFT
  • 55
    N.S.S. Not Sold Separate, Reverse Gear (PART OF 43-16279A2)
    Not Sold Separate, Reverse Gear (PART OF 43-16279A2)
  • 56
    12-76358 THRUST WASHER, BEARING CARRIER
    THRUST WASHER, BEARING CARRIER
  • 57
    25-29976 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 58
    41529T2 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 59
    22-98727 FITTING, Grease
    FITTING, Grease
  • 60
    31-30956T BEARING, Needle, BEARING CARRIER
    BEARING, Needle, BEARING CARRIER
  • 61
    26-76868 SEAL
    SEAL
  • 62
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 63
    14-52700 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 64
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 65
    8M0039169 FILLER BLOCK
    FILLER BLOCK
  • 66
    10-30206 SCREW, (.375-16 x 1.00) Stainless Steel
    SCREW, (.375-16 x 1.00) Stainless Steel
  • 67
    12-31211Q03 WASHER, Splined
    WASHER, Splined
  • 68
    14-816629Q TAB WASHER
    TAB WASHER
  • 69
    11-52707Q1 PROP NUT KIT, (.750-16)
    PROP NUT KIT, (.750-16)
  • 70
    97-31640Q4 TRIM TAB
    TRIM TAB
  • 71
    10-15797 SCREW, ANODIC PLATE
    SCREW, ANODIC PLATE
  • 72
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDS
    WASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDS
  • 73
    11-34933 NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDS
    NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDS
  • 74
    13191Q01 THRUST WASHER
    THRUST WASHER
  • 75
    13-423511 LOCKWASHER, Toothed
    LOCKWASHER, Toothed
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
  • -
    27-11338A88 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
