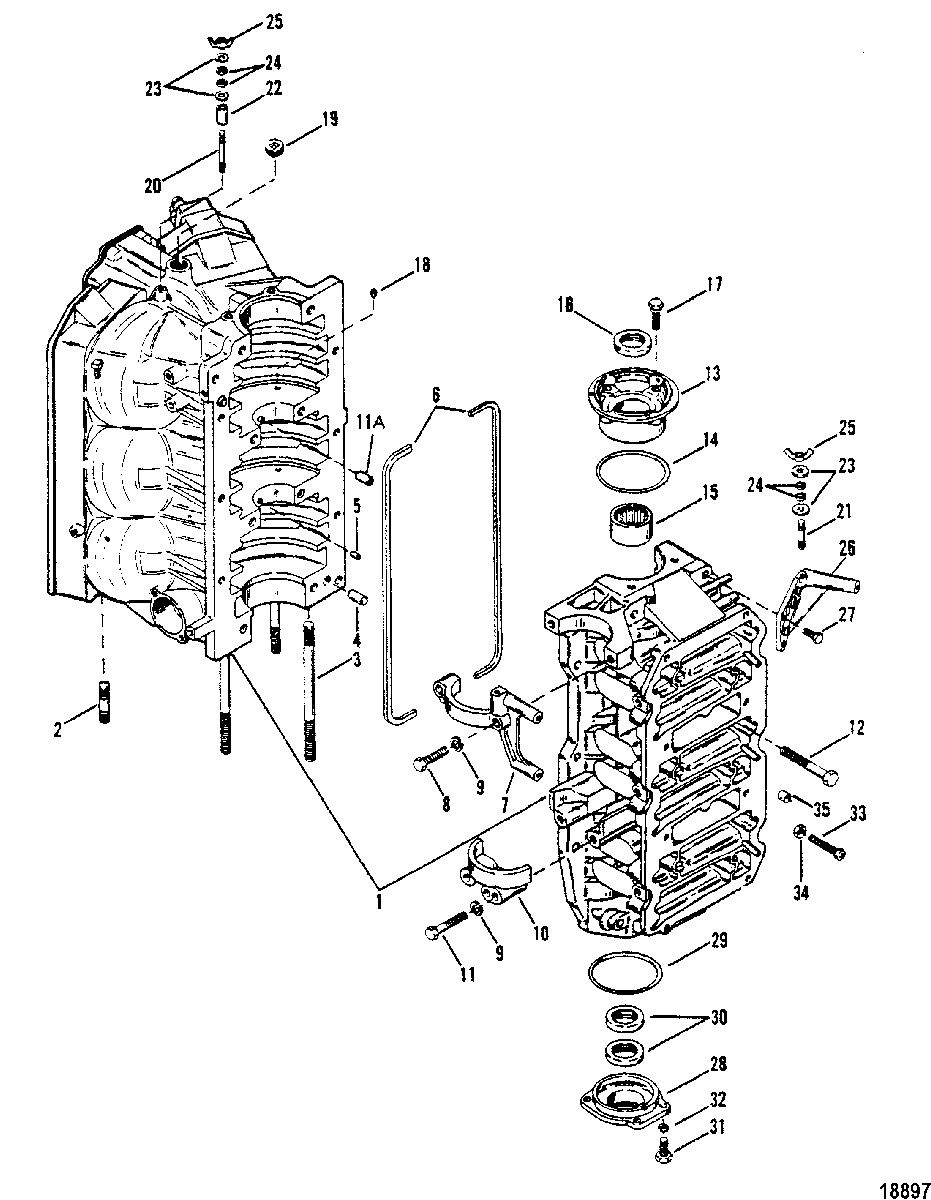

CYLINDER BLOCK AND END CAPS для Mercury - XR-4 0B242885 THRU 0C100860

№

Артикул

Название
1

858-8712A43 CYLINDER BLOCK

CYLINDER BLOCK

0 ₽
2

16-76175 STUD, POWERHEAD (1-7/8")

STUD, POWERHEAD (1-7/8")

860 ₽
3

16-670654 STUD (5-1/2")

STUD (5-1/2")

870 ₽
3

16-8M0034454 STUD, POWERHEAD (6-3/4")

STUD, POWERHEAD (6-3/4")

1 130 ₽
4

17-43044 PIN, Dowel, LOCATING

PIN, Dowel, LOCATING

200 ₽
5

17-8M0036405 PIN, CYLINDER BLOCK (BEARING RACE)

PIN, CYLINDER BLOCK (BEARING RACE)

270 ₽
6

27-11338 GASKET, SEALING

GASKET, SEALING

150 ₽
7

8M0088723 COVER, STARTER MOTOR (UPPER)

COVER, STARTER MOTOR (UPPER)

14 890 ₽
8

10-73657 SCREW, (.312-18 x 1.50), COVER TO CRANKCASE

SCREW, (.312-18 x 1.50), COVER TO CRANKCASE

230 ₽
9

13-26993 LOCKWASHER, (.312), STARTER MOTOR COVER SCREW

LOCKWASHER, (.312), STARTER MOTOR COVER SCREW

140 ₽
10

76867 COVER, STARTER MOTOR (LOWER)

COVER, STARTER MOTOR (LOWER)

2 450 ₽
11

10-815549 SCREW, (.312-18 x 2), COVER TO CRANKCASE

SCREW, (.312-18 x 2), COVER TO CRANKCASE

340 ₽
11A

23-99448 BUSHING

BUSHING

320 ₽
12

10-66717 SCREW, (.375-16 x 3.250), CRANKCASE TO CYLINDER BLOCK

SCREW, (.375-16 x 3.250), CRANKCASE TO CYLINDER BLOCK

380 ₽
12

10-74824 SCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCK

SCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCK

140 ₽
13

1159-8454T2 END CAP ASSEMBLY, UPPER

END CAP ASSEMBLY, UPPER

26 270 ₽
14

25-54029 O-RING, (2.800 x .103), END CAP

O-RING, (2.800 x .103), END CAP

480 ₽
15

31-93496T BEARING, Roller, END CAP

BEARING, Roller, END CAP

27 160 ₽
16

26-41953 SEAL, END CAP

SEAL, END CAP

1 140 ₽
17

10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00), UPPER END CAP TO CYLINDER BLOCK

SCREW AND LOCKWASHER, (.312-18 x 1.00), UPPER END CAP TO CYLINDER BLOCK

70 ₽
18

10-24220 SCREW, (.190-24 x .190), SET - CYLINDER BLOCK

SCREW, (.190-24 x .190), SET - CYLINDER BLOCK

0 ₽
19

22-38407 PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET)

PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET)

600 ₽
20

16-15094 STUD, (.190-32 x 1.870), FLYWHEEL COVER TO CYLINDER BLOCK

STUD, (.190-32 x 1.870), FLYWHEEL COVER TO CYLINDER BLOCK

630 ₽
21

16-8M0034435 STUD, (#10-32 x 1.00), FLYWHEEL COVER TO BRACKET

STUD, (#10-32 x 1.00), FLYWHEEL COVER TO BRACKET

800 ₽
22

23-67269 SPACER, FLYWHEEL COVER STUD

SPACER, FLYWHEEL COVER STUD

380 ₽
23

12-49221 WASHER, FLYWHEEL COVER STUD

WASHER, FLYWHEEL COVER STUD

90 ₽
24

12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, FLYWHEEL COVER STUD

WASHER, (.203 x .562 x .060) Stainless Steel, FLYWHEEL COVER STUD

140 ₽
25

11-816874 NUT, FLYWHEEL COVER STUD

NUT, FLYWHEEL COVER STUD

170 ₽
26

422482 BRACKET, FLYWHEEL COVER

BRACKET, FLYWHEEL COVER

4 640 ₽
27

10-49668 SCREW, (.250-20 x .750), BRACKET TO CRANKCASE

SCREW, (.250-20 x .750), BRACKET TO CRANKCASE

100 ₽
28

1156-7809T1 END CAP ASSEMBLY, LOWER

END CAP ASSEMBLY, LOWER

25 510 ₽
29

25-62700 O-RING, (3.237 x .103), END CAP

O-RING, (3.237 x .103), END CAP

400 ₽
30

26-41953 SEAL, END CAP

SEAL, END CAP

1 140 ₽
31

10-28636 SCREW, (.250-20 x .750), LOWER END CAP TO CYLINDER BLOCK

SCREW, (.250-20 x .750), LOWER END CAP TO CYLINDER BLOCK

90 ₽
32

13-26992 LOCKWASHER, (.250) Stainless Steel, LOWER END CAP SCREW

LOCKWASHER, (.250) Stainless Steel, LOWER END CAP SCREW

70 ₽
33

10-64022 SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK

SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK

270 ₽
34

11-64015 NUT, (.250-20), JAM - ADJUSTING SCREW

NUT, (.250-20), JAM - ADJUSTING SCREW

150 ₽
35

26852 CAP, Nylon, NYLON - ADJUSTING SCREW

CAP, Nylon, NYLON - ADJUSTING SCREW

320 ₽
-

66517 RESTRICTOR, BLEED - CYLINDER BLOCK

RESTRICTOR, BLEED - CYLINDER BLOCK

170 ₽
-

27-11338A88 GASKET SET, Engine Overhaul

GASKET SET, Engine Overhaul

18 490 ₽
-

18274T88 POWERHEAD ASSEMBLY

POWERHEAD ASSEMBLY

0 ₽
