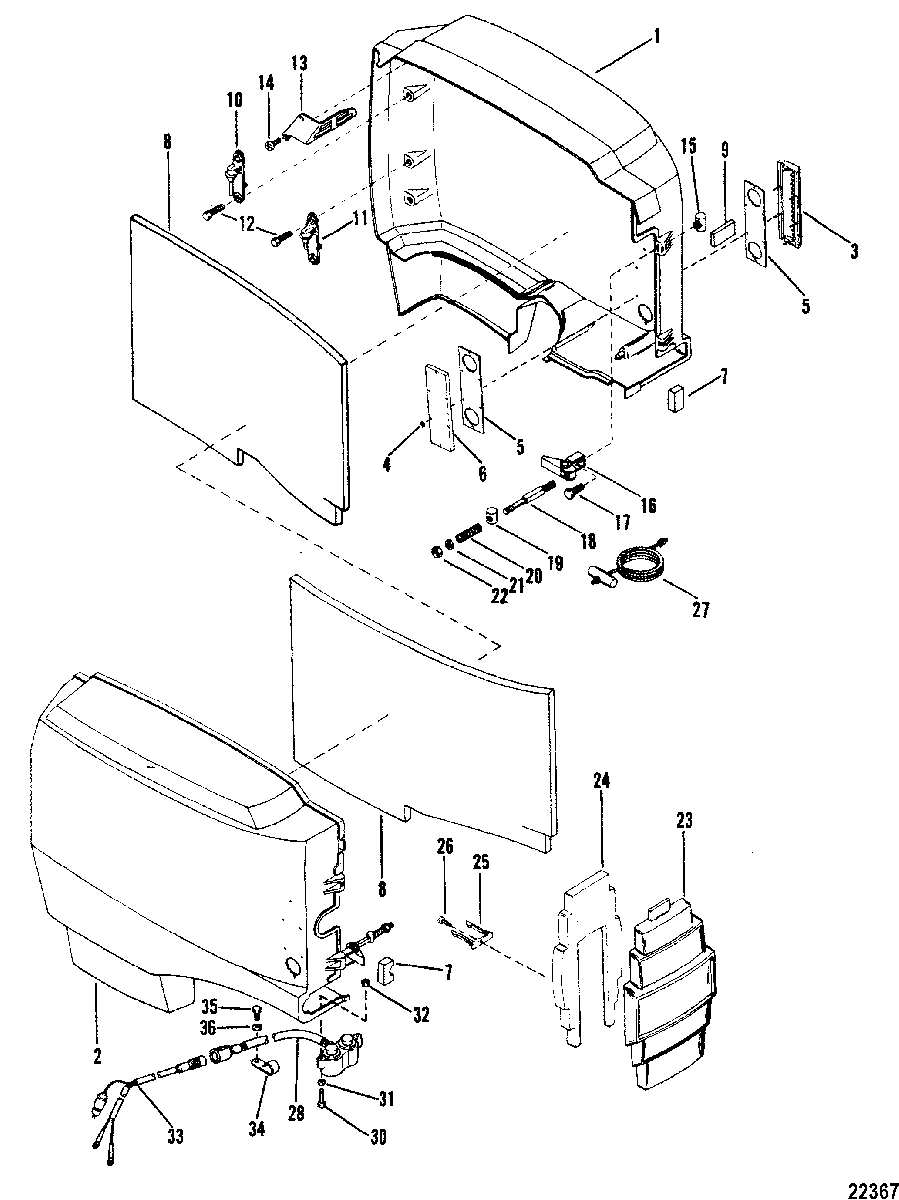

COWLS AND FRONT COVER для Mercury - XR-4 0B242885 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    2151-7620A27 TOP COWL ASSEMBLY, PORT (BLACK)
    TOP COWL ASSEMBLY, PORT (BLACK)
  • 1
    2151-7620A28 TOP COWL ASSEMBLY, PORT (GRAY)
    TOP COWL ASSEMBLY, PORT (GRAY)
  • 2
    2150-7619A6 TOP COWL ASSEMBLY, STARBOARD (BLACK)
    TOP COWL ASSEMBLY, STARBOARD (BLACK)
  • 2
    2150-7619A7 TOP COWL ASSEMBLY, STARBOARD (GRAY)
    TOP COWL ASSEMBLY, STARBOARD (GRAY)
  • 3
    17196A1 SHIELD, AIR INLET
    SHIELD, AIR INLET
  • 4
    11-113161 NUT
    NUT
  • 5
    17238 SEAL, AIR INLET
    SEAL, AIR INLET
  • 6
    17194 SHIELD, AIR INLET (PORT)
    SHIELD, AIR INLET (PORT)
  • 6
    17195 SHIELD, AIR INLET (STARBOARD)
    SHIELD, AIR INLET (STARBOARD)
  • 7
    67260 SEAL, CONTROL CABLE
    SEAL, CONTROL CABLE
  • 8
    88227 BLANKET, SOUND - COWL
    BLANKET, SOUND - COWL
  • 9
    67258 PAD, COWL ASSEMBLY TO FRONT COVER (PORT)
    PAD, COWL ASSEMBLY TO FRONT COVER (PORT)
  • 10
    879871 BRACKET, COWL ATTACHING (UPPER)
    BRACKET, COWL ATTACHING (UPPER)
  • 11
    87985 BRACKET, COWL ATTACHING (LOWER)
    BRACKET, COWL ATTACHING (LOWER)
  • 12
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel, UPPER AND LOWER BRACKETS
    SCREW, (.312-18 x 1.00) Stainless Steel, UPPER AND LOWER BRACKETS
  • 13
    68049 SHIELD, INLET - COWL (STARBOARD)
    SHIELD, INLET - COWL (STARBOARD)
  • 13
    68048 SHIELD, INLET - COWL (PORT)
    SHIELD, INLET - COWL (PORT)
  • 14
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIELD TO COWL
    SCREW, (#10-16 x .625) Stainless Steel, SHIELD TO COWL
  • 15
    62628 BARREL, RETAINING - COWL LATCH
    BARREL, RETAINING - COWL LATCH
  • 16
    46785A5 LATCH ASSEMBLY, Cowl
    LATCH ASSEMBLY, Cowl
  • 17
    10-31312 SCREW, (#10-32 x 0.875), BARRELL TO COWL LATCH
    SCREW, (#10-32 x 0.875), BARRELL TO COWL LATCH
  • 18
    15222 BAR, ADJUSTING - COWL LATCH
    BAR, ADJUSTING - COWL LATCH
  • 19
    62629 BARREL, RETAINING COWL LATCH
    BARREL, RETAINING COWL LATCH
  • 20
    24-62624 SPRING, COWL LATCH
    SPRING, COWL LATCH
  • 21
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, SPRING TO ADJUSTING BAR
    WASHER, (.192 x .375 x .0312) Stainless Steel, SPRING TO ADJUSTING BAR
  • 22
    11-859124 NUT, (#10-32) Stainless Steel, SPRING TO ADJUSTING BAR
    NUT, (#10-32) Stainless Steel, SPRING TO ADJUSTING BAR
  • 23
    2149-7532A2 COVER ASSEMBLY, Cowl - Front (BLACK)
    COVER ASSEMBLY, Cowl - Front (BLACK)
  • 23
    2149-7532A23 COVER ASSEMBLY, Cowl - Front (GRAY)
    COVER ASSEMBLY, Cowl - Front (GRAY)
  • 24
    67615 BLANKET, SOUND - COWL FRONT COVER
    BLANKET, SOUND - COWL FRONT COVER
  • 25
    87907 HOOK, COWL FRONT COVER
    HOOK, COWL FRONT COVER
  • 26
    10-95700 SCREW, (#10-16 x .500), HOOK TO COWL FRONT COVER
    SCREW, (#10-16 x .500), HOOK TO COWL FRONT COVER
  • 27
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
    ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
  • 28
    84-16636A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 30
    10-72202 SCREW, (#10-32 x 1.25), SWITCH
    SCREW, (#10-32 x 1.25), SWITCH
  • 31
    12-56681 WASHER, (.203 x .500 x .032), SWITCH SCREW
    WASHER, (.203 x .500 x .032), SWITCH SCREW
  • 32
    11-8267096 NUT, (#10-32), SWITCH SCREW
    NUT, (#10-32), SWITCH SCREW
  • 33
    84-16639A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 34
    54-22875 CLIP, HARNESS
    CLIP, HARNESS
  • 35
    10-48408 SCREW, (#10-16 x .500), HARNESS CLIP
    SCREW, (#10-16 x .500), HARNESS CLIP
  • 36
    8M0084613 C WASHER, HARNESS CLIP
    C WASHER, HARNESS CLIP
