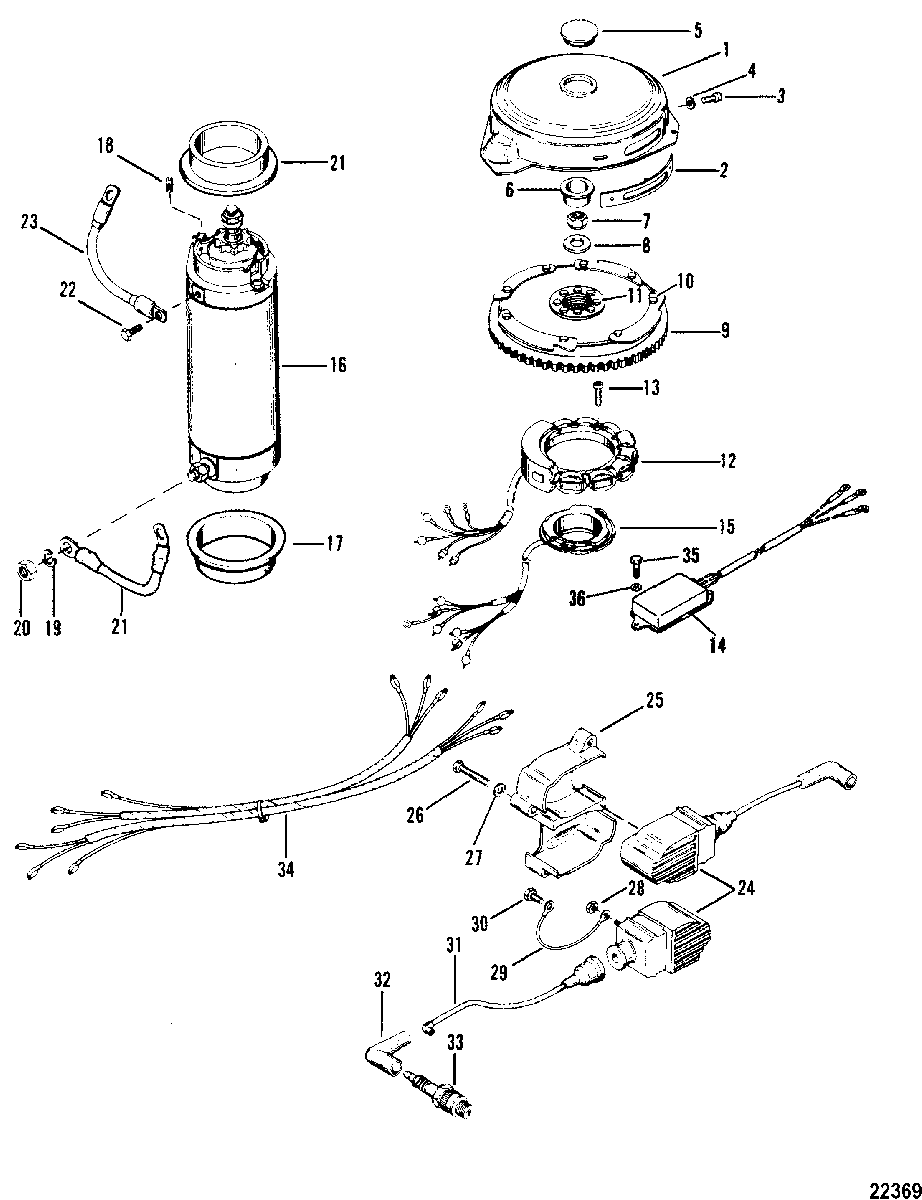

FLYWHEEL, STARTER MOTOR AND IGNITION COILS для Mercury - XR-4 0B242885 THRU 0C100860

№

Артикул

Название
1

79918A1 COVER KIT, FLYWHEEL

COVER KIT, FLYWHEEL

9 310 ₽
2

79022 MARKER, TIMING

MARKER, TIMING

1 910 ₽
3

10-37572 SCREW, (.190-32 x .380), TIMING MARKER

SCREW, (.190-32 x .380), TIMING MARKER

100 ₽
4

12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREW

WASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREW

140 ₽
5

19-89219001 PLUG, FLYWHEEL COVER

PLUG, FLYWHEEL COVER

350 ₽
6

19-45907 PLUG, Yellow, FLYWHEEL

PLUG, Yellow, FLYWHEEL

430 ₽
7

11-52901 NUT, (.625-18), FLYWHEEL

NUT, (.625-18), FLYWHEEL

880 ₽
8

12-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL

WASHER, (.641 x 1.250 x .190), FLYWHEEL

600 ₽
9

271-859238A9 FLYWHEEL

FLYWHEEL

100 650 ₽
10

10-32417 SCREW, (.250-28 x .625), FLYWHEEL PLATE

SCREW, (.250-28 x .625), FLYWHEEL PLATE

100 ₽
11

10-68997 SCREW, (.312-24 x .750), FLYWHEEL HUB

SCREW, (.312-24 x .750), FLYWHEEL HUB

110 ₽
12

398-5454A35 STATOR

STATOR

30 030 ₽
13

10-19926100 SCREW, (#10-24 x 1.00), STATOR

SCREW, (#10-24 x 1.00), STATOR

350 ₽
14

93772A11 MODULE

MODULE

0 ₽
15

96455A9 PLATE ASSEMBLY, Trigger

PLATE ASSEMBLY, Trigger

25 350 ₽
16

50-893893 STARTER MOTOR ASSEMBLY (8 TOOTH PINION)

STARTER MOTOR ASSEMBLY (8 TOOTH PINION)

39 910 ₽
17

23-8M0034918 COLLAR, STARTER MOTOR

COLLAR, STARTER MOTOR

680 ₽
18

8M0043376 STOP, Rubber, RUBBER - STARTER MOTOR

STOP, Rubber, RUBBER - STARTER MOTOR

340 ₽
19

13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL

LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL

70 ₽
20

11-20890 NUT, (.250-20), STARTER MOTOR TERMINAL

NUT, (.250-20), STARTER MOTOR TERMINAL

120 ₽
21

84-93388A14 CABLE ASSEMBLY, Black, SOLENIOD TO STARTER MOTOR

CABLE ASSEMBLY, Black, SOLENIOD TO STARTER MOTOR

1 610 ₽
22

10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR

SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR

140 ₽
23

84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, PLATE TO STARTER MOTOR

CABLE ASSEMBLY, (6.00 Inches) Black, PLATE TO STARTER MOTOR

1 120 ₽
24

339-832757A4 COIL ASSEMBLY, Ignition, IGNITION

COIL ASSEMBLY, Ignition, IGNITION

7 450 ₽
25

67614 COVER, IGNITION COIL

COVER, IGNITION COIL

3 260 ₽
26

10-88447 SCREW, (.190-32 x 1.62), IGNITION COIL COVER

SCREW, (.190-32 x 1.62), IGNITION COIL COVER

270 ₽
27

12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, IGNITION COIL COVER SCREW

WASHER, (.192 x .375 x .0312) Stainless Steel, IGNITION COIL COVER SCREW

130 ₽
28

11-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINAL

NUT, (#10-32) Brass, IGNITION COIL TERMINAL

120 ₽
29

84-88807A6 CABLE ASSEMBLY, (3.50 Inches) Black, IGNITION COIL

CABLE ASSEMBLY, (3.50 Inches) Black, IGNITION COIL

350 ₽
30

10-68513 SCREW, (#10-32 x .375) Stainless Steel, GROUND STRAP

SCREW, (#10-32 x .375) Stainless Steel, GROUND STRAP

110 ₽
31

84-813715A1 LEAD ASSEMBLY, HIGH TENSION

LEAD ASSEMBLY, HIGH TENSION

2 640 ₽
32

85-63709A1 BOOT/TERMINAL KIT, HIGH TENSION CABLE

BOOT/TERMINAL KIT, HIGH TENSION CABLE

550 ₽
33

33-13686Q SPARK PLUG

SPARK PLUG

730 ₽
34

84-69738A7 HARNESS ASSEMBLY, COIL TO SWITCH BOX
(#2, 4 AND 6)

HARNESS ASSEMBLY, COIL TO SWITCH BOX
(#2, 4 AND 6)

9 330 ₽
34

84-69739A2 HARNESS ASSEMBLY, COIL TO SWITCH BOX
(#1, 3 AND 5)

HARNESS ASSEMBLY, COIL TO SWITCH BOX
(#1, 3 AND 5)

7 340 ₽
35

10-690201 SCREW, (#10-32 x .875), ADVANCE MODULE

SCREW, (#10-32 x .875), ADVANCE MODULE

180 ₽
36

12-38833 WASHER, ADVANCE MODULE SCREW

WASHER, ADVANCE MODULE SCREW

220 ₽
