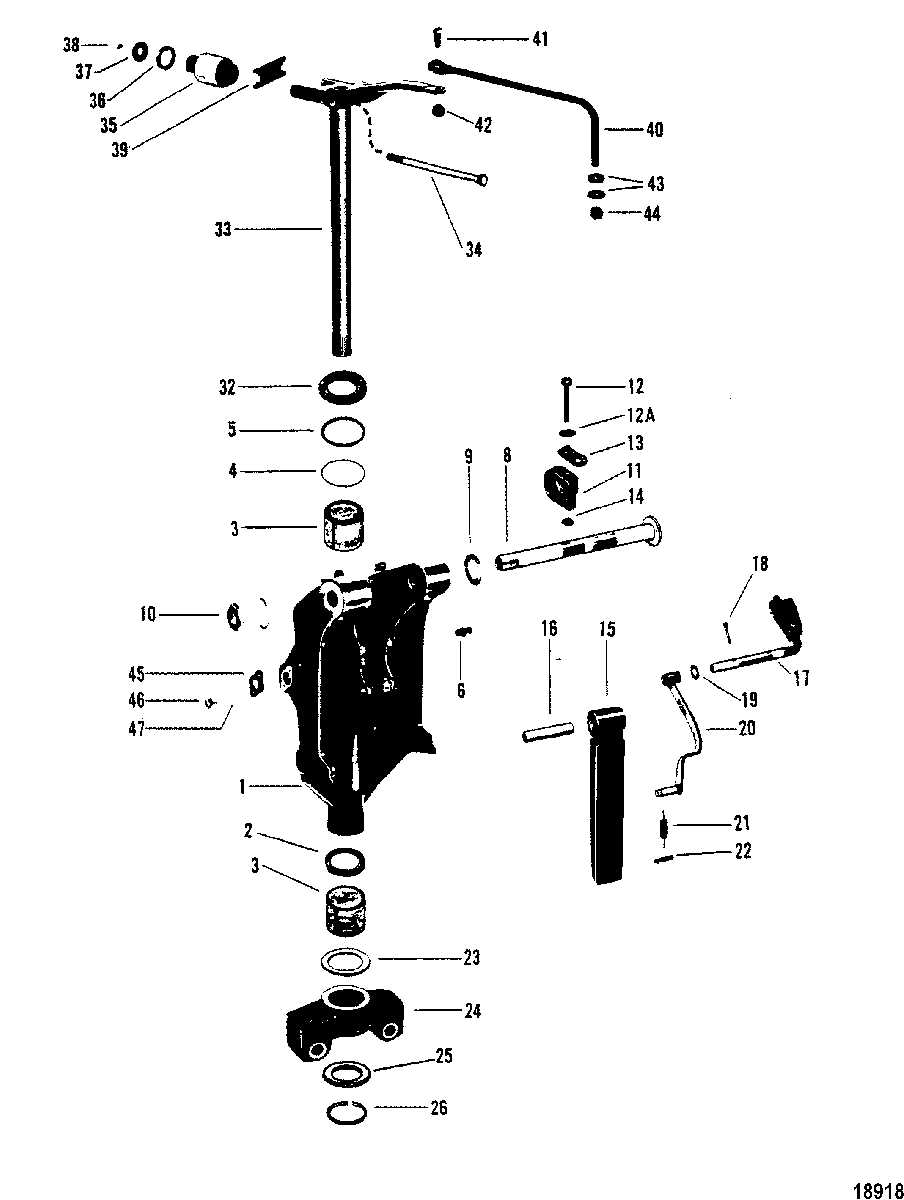

Swivel Bracket(Merc S/N-USA-5464485/AUS-8061769 & Below ) для Mercury - V-200 5624878 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    NLA No Longer Available, Swivel Bracket
    No Longer Available, Swivel Bracket
  • 2
    26-87735 SEAL, Oil
    SEAL, Oil
  • 3
    23-818764 BUSHING
    BUSHING
  • 4
    25-33466 O-RING
    O-RING
  • 5
    23-67668 SPACER
    SPACER
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 8
    NLA No Longer Available, Tilt Tube
    No Longer Available, Tilt Tube
  • 9
    NLA No Longer Available, Shim
    No Longer Available, Shim
  • 10
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 11
    NLA No Longer Available, Clamp
    No Longer Available, Clamp
  • 12
    NLA No Longer Available, Screw
    No Longer Available, Screw
  • 12A
    12-30164 WASHER, (.192 x .375 x .0312)
    WASHER, (.192 x .375 x .0312)
  • 13
    54-75275 CLAMP
    CLAMP
  • 14
    NLA No Longer Available, Nut
    No Longer Available, Nut
  • 15
    NLA No Longer Available, Brace
    No Longer Available, Brace
  • 16
    NLA No Longer Available, Pin
    No Longer Available, Pin
  • 17
    NLA No Longer Available, Handle
    No Longer Available, Handle
  • 18
    18-25191 COTTER PIN
    COTTER PIN
  • 19
    12-36001 WASHER
    WASHER
  • 20
    NLA No Longer Available, Link
    No Longer Available, Link
  • 21
    NLA No Longer Available, Spring
    No Longer Available, Spring
  • 22
    NLA No Longer Available, Pin
    No Longer Available, Pin
  • 23
    13-78854 WAVE WASHER
    WAVE WASHER
  • 24
    878182T01 BOTTOM YOKE
    BOTTOM YOKE
  • 25
    NLA No Longer Available, Washer (Use where Applicable)
    No Longer Available, Washer (Use where Applicable)
  • 26
    53-67684 RING, Retaining
    RING, Retaining
  • 32
    12-67670 WASHER
    WASHER
  • 33
    17-840792A1 SWIVEL PIN/STEERING ARM
    SWIVEL PIN/STEERING ARM
  • 34
    10-8M0000491 SCREW, (.437-20 x 7.50)
    SCREW, (.437-20 x 7.50)
  • 35
    77326 MOUNT
    MOUNT
  • 35
    77326 MOUNT
    (HEAVY DUTY)
    MOUNT
    (HEAVY DUTY)
  • 36
    12-66921 WASHER
    WASHER
  • 37
    12-78688 WASHER
    WASHER
  • 38
    11-34933 NUT, (.437-20)
    NUT, (.437-20)
  • 39
    NLA No Longer Available, Bumper
    No Longer Available, Bumper
  • 40
    NLA No Longer Available, Steering Link
    No Longer Available, Steering Link
  • 41
    10-849838 SCREW, (.375-24 x 1.25)
    SCREW, (.375-24 x 1.25)
  • 42
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 43
    12-34931 WASHER, (.406 x .734 x .063 Stainless Steel)
    WASHER, (.406 x .734 x .063 Stainless Steel)
  • 44
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 45
    NLA No Longer Available, Cover
    No Longer Available, Cover
  • 46
    10-28635 SCREW, (.250-20 x .620)
    SCREW, (.250-20 x .620)
  • 47
    13-26992 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
