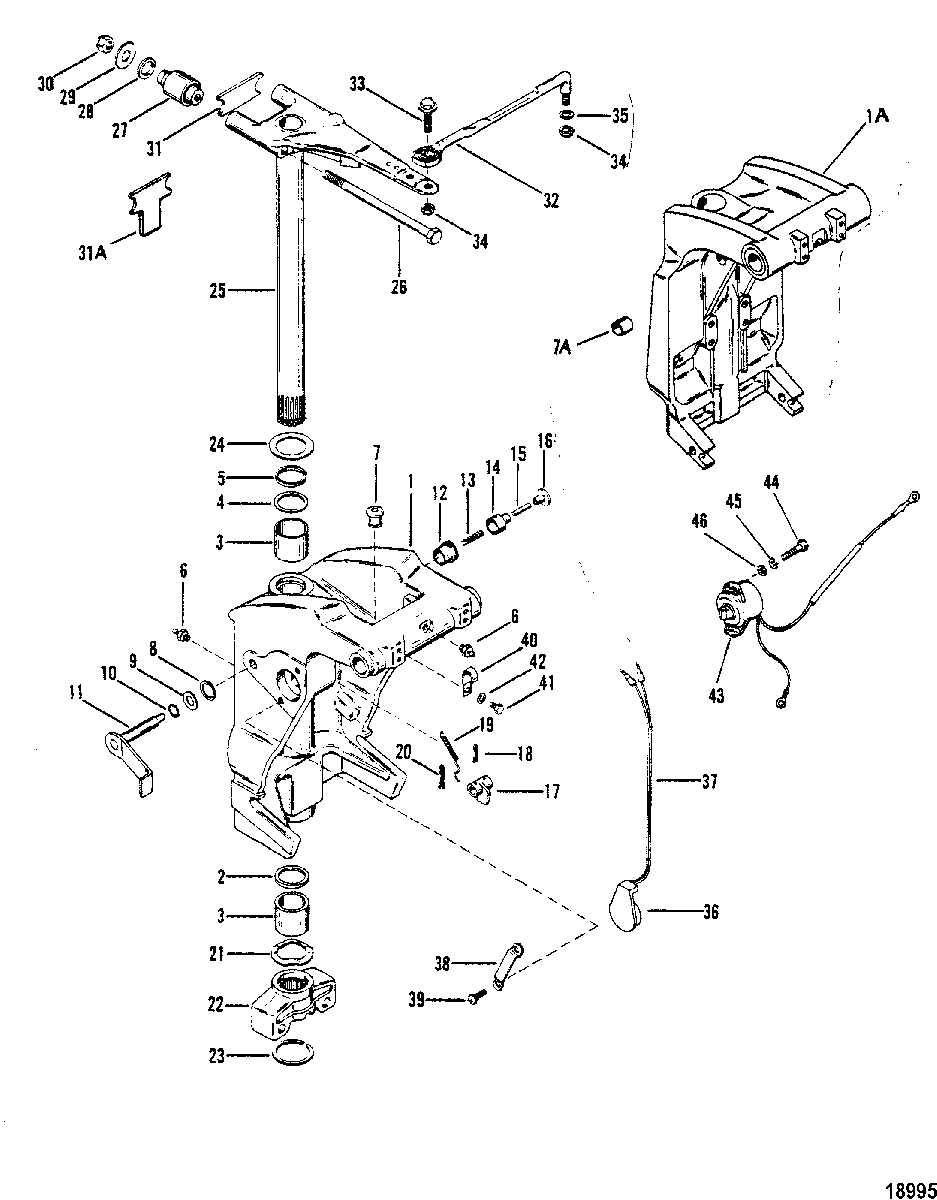

Swivel Bracket для Mercury - V-200 5624878 THRU 0C100860
-
№АртикулНазвание
-
1NLA No Longer Available, Swivel Bracket
(BLACK/GRAY) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032No Longer Available, Swivel Bracket
(BLACK/GRAY) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
1A1499-8M0102865 SWIVEL BRACKET
(Black) SN# 66255221 & UpSWIVEL BRACKET
(Black) SN# 66255221 & Up -
1A1499-8M0102865 SWIVEL BRACKET
(Gray) SN# 66255221 & UpSWIVEL BRACKET
(Gray) SN# 66255221 & Up -
226-87735 SEAL, OilSEAL, Oil
-
323-818764 BUSHINGBUSHING
-
425-33466 O-RINGO-RING
-
523-67668 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
7A23-821207 BUSHING
SN# 66255221 & UpBUSHING
SN# 66255221 & Up -
725-88341 GROMMET
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032GROMMET
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
826-85023 SEAL, Oil
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032SEAL, Oil
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
912-87161 WASHER
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032WASHER
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
1025-48171 O-RING, (.364. x .070)
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032O-RING, (.364. x .070)
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
1185030A2 TILT LOCK LEVER
(PORT) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032TILT LOCK LEVER
(PORT) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
1185028A2 TILT LOCK LEVER
(STBD) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032TILT LOCK LEVER
(STBD) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
1223-86600 BUSHING
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032BUSHING
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
1324-85367 SPRING
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032SPRING
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
1441052 PLUNGER
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032PLUNGER
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
1516-88876 STUD
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032STUD
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
1686603 KNOB
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032KNOB
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
17864751 COUPLING
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032COUPLING
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
1818-87200 PIN
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032PIN
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
1924-88049 SPRING
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032SPRING
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
2018-93861 COTTER PIN
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032COTTER PIN
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
2113-78854 WAVE WASHERWAVE WASHER
-
22878182T01 BOTTOM YOKE
(BLACK)BOTTOM YOKE
(BLACK) -
22878182T01 BOTTOM YOKE
(GRAY)BOTTOM YOKE
(GRAY) -
2353-67684 RING, RetainingRING, Retaining
-
2412-67670 WASHERWASHER
-
2517-840792A1 SWIVEL PIN/STEERING ARM
(BLACK) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032SWIVEL PIN/STEERING ARM
(BLACK) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
2517-840792A1 SWIVEL PIN/ARM
(GRAY) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032SWIVEL PIN/ARM
(GRAY) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
2517-8M0132731 PIN, Swivel
(Black) SN# 66255221 & UpPIN, Swivel
(Black) SN# 66255221 & Up -
2517-8M0132731 SWIVEL PIN AND STEERING ARM
(Gray) SN# 66255221 & UpSWIVEL PIN AND STEERING ARM
(Gray) SN# 66255221 & Up -
2610-8M0000491 SCREW, (.437-20 x 7.50)SCREW, (.437-20 x 7.50)
-
2777326 MOUNT (UPPER)MOUNT (UPPER)
-
2812-66921 WASHERWASHER
-
2912-78688 WASHERWASHER
-
3011-34933 NUT, (.437-20)NUT, (.437-20)
-
31NLA No Longer Available, Bumper
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032No Longer Available, Bumper
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
31A88882 BUMPER, Top Yoke
SN# 66255221 & UpBUMPER, Top Yoke
SN# 66255221 & Up -
3292876A12 STEERING LINK ASSEMBLYSTEERING LINK ASSEMBLY
-
3310-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
3411-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
3512-34931 WASHER, (.406 x .734 x .063 Stainless Steel)WASHER, (.406 x .734 x .063 Stainless Steel)
-
3686485A5 TRIM SENDER ASSEMBLY
(FEMALE TERMINALS)TRIM SENDER ASSEMBLY
(FEMALE TERMINALS) -
3784-65017A15 HARNESS
(FEMALE TERMINALS)HARNESS
(FEMALE TERMINALS) -
3686485A6 TILT SWITCH ASSEMBLY
(MALE TERMINALS)TILT SWITCH ASSEMBLY
(MALE TERMINALS) -
3784-65017A14 HARNESS
(MALE TERMINALS)HARNESS
(MALE TERMINALS) -
3888342 STRAPSTRAP
-
3910-87926 SCREW, (#10-32 x .500)SCREW, (#10-32 x .500)
-
4054-54457 J CLIPJ CLIP
-
4110-98256 SCREW, (.250-28 X .50)SCREW, (.250-28 X .50)
-
4212-29245 WASHER, (.281 x .500 x .060)WASHER, (.281 x .500 x .060)
-
438M0098273 TRIM SENDERTRIM SENDER
-
4410-852368 SCREW, (#10-24 x .750)SCREW, (#10-24 x .750)
-
4513-26996 LOCKWASHER, (#10)LOCKWASHER, (#10)
-
4612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
-27-89221A88 GASKET SET
SN# Merc-6203991/Mariner-6201970 & UpGASKET SET
SN# Merc-6203991/Mariner-6201970 & Up -
-27-89221A80 GASKET SET
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969GASKET SET
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
