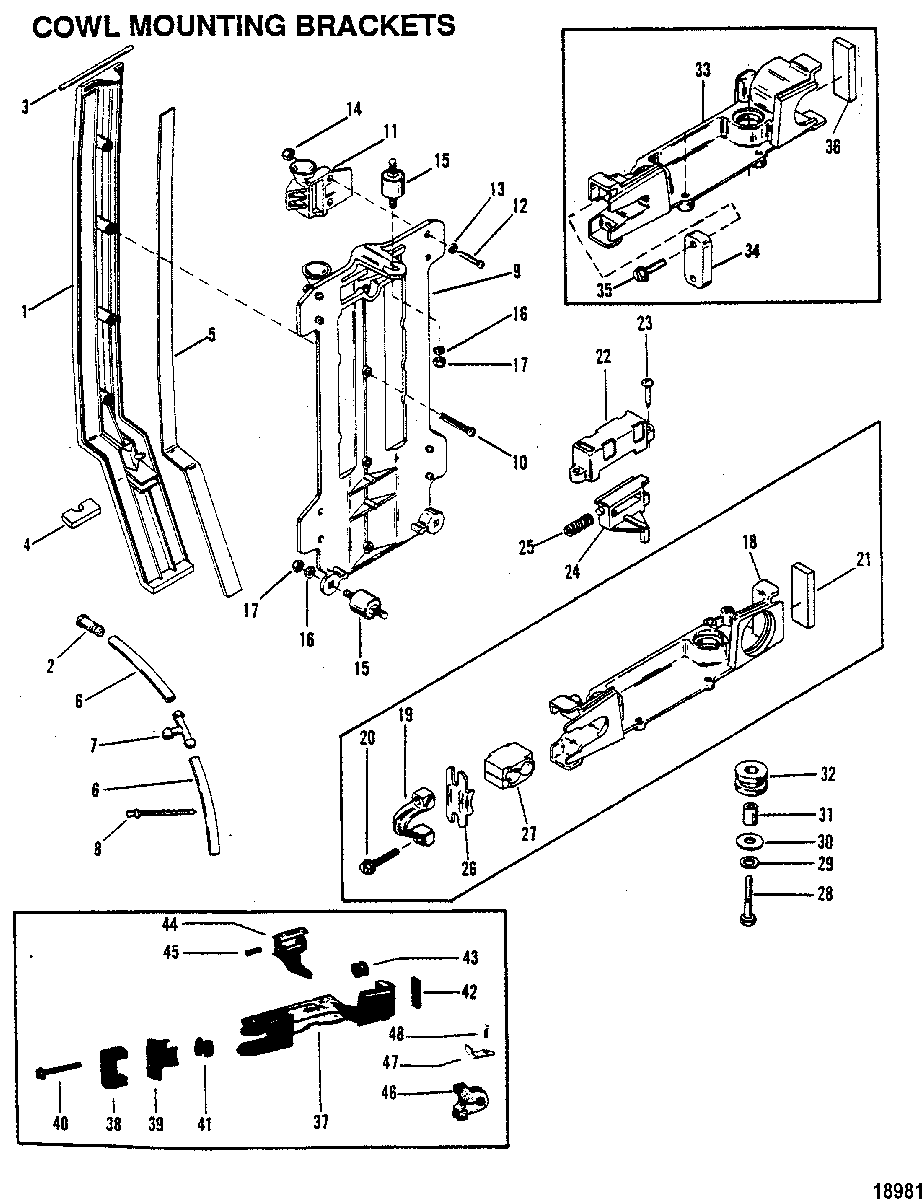

Cowl Mounting Brackets для Mercury - V-200 5624878 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    76258A2 BRACKET, REAR COWL
    (BLACK)
    BRACKET, REAR COWL
    (BLACK)
  • 1
    76258A3 BRACKET, REAR COWL
    (GRAY)
    BRACKET, REAR COWL
    (GRAY)
  • 2
    22-76256 NOZZLE
    NOZZLE
  • 3
    67984 SEAL
    SEAL
  • 4
    67228 SEAL
    SEAL
  • 5
    67999 SEAL
    SEAL
  • 6
    32-8M0108355 FUEL LINE, (57.00 Inches Bulk), TELL TALE
    FUEL LINE, (57.00 Inches Bulk), TELL TALE
  • 7
    22-90824001 TEE
    TEE
  • 8
    54-816311T CABLE TIE, (8.00 Inches)
    CABLE TIE, (8.00 Inches)
  • 9
    86386A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 10
    10-66687 SCREW, (#10-32 x 1.50)
    SCREW, (#10-32 x 1.50)
  • 11
    85651 HOUSING
    (PORT)
    HOUSING
    (PORT)
  • 11
    85650 HOUSING
    (STARBOARD)
    HOUSING
    (STARBOARD)
  • 12
    10-64278 SCREW, (.250-28 X 1.00)
    SCREW, (.250-28 X 1.00)
  • 13
    12-20583 WASHER
    WASHER
  • 14
    11-35888 NUT, (.250-28)
    NUT, (.250-28)
  • 15
    90435 MOUNT
    MOUNT
  • 16
    12-29245 WASHER, (.281 x .500 x .060)
    WASHER, (.281 x .500 x .060)
  • 17
    11-35888 NUT, (.250-28)
    NUT, (.250-28)
  • 18
    99424 BRACKET
    (BRACKET CASTING #99423)
    BRACKET
    (BRACKET CASTING #99423)
  • 19
    99447 RETAINER
    (BRACKET CASTING #99423)
    RETAINER
    (BRACKET CASTING #99423)
  • 20
    10-68918 SCREW, (.190-24 x 1.00)
    (BRACKET CASTING #99423)
    SCREW, (.190-24 x 1.00)
    (BRACKET CASTING #99423)
  • 21
    67260 SEAL
    (BRACKET CASTING #99423)
    SEAL
    (BRACKET CASTING #99423)
  • 22
    67241 HOUSING
    HOUSING
  • 23
    10-92051 SCREW, (10-16 x .75)
    SCREW, (10-16 x .75)
  • 24
    87608 COWL LATCH
    (USE W/BRACKET CASTING #99423 OR #87586)
    COWL LATCH
    (USE W/BRACKET CASTING #99423 OR #87586)
  • 25
    24-60295 SPRING
    (USE W/BRACKET CASTING #99423 OR #87586)
    SPRING
    (USE W/BRACKET CASTING #99423 OR #87586)
  • 26
    88622 PLATE
    PLATE
  • 27
    99391 RETAINER
    RETAINER
  • 28
    10-69067 SCREW, (.25-20 X 1.375)
    SCREW, (.25-20 X 1.375)
  • 28
    10-69093 SCREW, (.25-20 X 1.50)
    SCREW, (.25-20 X 1.50)
  • 29
    12-69057 WASHER (SMALL)
    WASHER (SMALL)
  • 30
    12-35280 WASHER, (.255 x .620 x .030) (LARGE)
    WASHER, (.255 x .620 x .030) (LARGE)
  • 31
    23-88180 BUSHING
    BUSHING
  • 32
    25-88033 GROMMET
    GROMMET
  • 33
    87587 BRACKET
    (BRACKET CASTING #87586)
    BRACKET
    (BRACKET CASTING #87586)
  • 34
    88804 RETAINER
    (BRACKET CASTING #87586)
    RETAINER
    (BRACKET CASTING #87586)
  • 35
    10-88865 SCREW, (#10-24 x .750)
    (BRACKET CASTING #87586)
    SCREW, (#10-24 x .750)
    (BRACKET CASTING #87586)
  • 36
    88508 SEAL
    (BRACKET CASTING #87586)
    SEAL
    (BRACKET CASTING #87586)
  • 37
    92009T BRACKET
    (CASTING #92008)
    BRACKET
    (CASTING #92008)
  • 37
    88623A1 BRACKET
    (CASTING #88624)
    BRACKET
    (CASTING #88624)
  • 38
    88621 RETAINER
    RETAINER
  • 39
    88622 PLATE
    (USE W/BRACKET CASTING #88624)
    PLATE
    (USE W/BRACKET CASTING #88624)
  • 40
    10-89900 SCREW, (10-24 X 1.00)
    SCREW, (10-24 X 1.00)
  • 41
    25-87743 GROMMET
    GROMMET
  • 42
    67260 SEAL
    SEAL
  • 43
    25-67272 GROMMET
    (USE W/CASTING #88624 OR 92008)
    GROMMET
    (USE W/CASTING #88624 OR 92008)
  • 44
    76264 LATCH
    (USE W/CASTING #88624 OR 92008)
    LATCH
    (USE W/CASTING #88624 OR 92008)
  • 45
    24-85367 SPRING
    (USE W/CASTING #88624 OR 92008)
    SPRING
    (USE W/CASTING #88624 OR 92008)
  • 46
    67739 SEAL
    (USE W/CASTING #88624)
    SEAL
    (USE W/CASTING #88624)
  • 47
    NLA No Longer Available
    (USE W/CASTING #88624)
    No Longer Available
    (USE W/CASTING #88624)
  • 48
    10-69079 SCREW, (#10-16 x .440)
    USE W/CASTING #88624
    SCREW, (#10-16 x .440)
    USE W/CASTING #88624
